Asus ROG G750JH-DB71 RAM Replacement

Geschrieben von: James Mills
  • Kommentare: 0
Asus ROG G750JH-DB71 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

This guide covers how to replace the RAM for the Asus ROG G750JH-DB71.

The RAM provides memory for the Asus ROG G750JH-DB71 while running the operating system. This allows the Asus ROG G750JH-DB71 to do many tasks from taxing videogames and programs to browsing the internet. Damage to Asus ROG G750JH-DB71's RAM could cause random crashing or a slow operating system.

To test if it's your RAM is causing these problems you can test this using free diagnostic programs on the internet.

The Asus ROG G750JH-DB71 comes with a 12 GB DDR3-SDRAM and 24 GB of RAM in total. You can add up to 32 GB of RAM (32000 MB)

  1. yD4CrxAF4gjTGslC
    yD4CrxAF4gjTGslC
    doOgxPDUWNcbrClC

    • Ensure the laptop is powered off and unplugged before beginning.

    • Flip the laptop over so the bottom case is facing up.

  2. V4sRRH3gTiMHqGpL
    V4sRRH3gTiMHqGpL
    pL5bLRheYDP5HZdP
    ddvlyVyPAP5UjqoE

    • Push the switch near the front of the laptop to release the battery from the computer.

    • Pull the battery out and away from the center of the computer.

  3. NJYIKShvJkyWxUGH
    NJYIKShvJkyWxUGH
    GXniwh2VMHAE3RKv
    CLSAaIMJRnKgtUvY

    • Use a spudger or your finger to lift up the plastic cover on back of the laptop.

    • Under the plastic cover is a captive screw; unscrew it using a Phillips #00 screwdriver.

  4. vUGwprAJEKPYog2y
    vUGwprAJEKPYog2y
    bKecKNvwJkRFLfJB

    • Remove the cover.

    • If your goal is to replace/remove only the hard drive. You don't have to complete the following disassembly steps and can go on to the hard drive replacement guide.

  5. UWsqSmC1QcXDDUXg
    UWsqSmC1QcXDDUXg
    UdTHBqNARiZRZKEI
    uYCSHrBonKQNovGQ

    • Remove the hard drive by unscrewing the 4.4 mm Phillips #00 screws.

    • Remove all of the plastic caps around the edges using a pick or flathead screwdriver, and remove the screws underneath them. (one 13 mm Phillips #00, six 8 mm Phillips #00)

    • Remove all of the screws underneath the cover removed previously. (six 8mm Phillips #00, three 1 mm Phillips #00)

  6. EMaqul61UI4NHyYf
    EMaqul61UI4NHyYf
    ZVYR4eTHd6KPtaYq
    WY5xWCTdqN6LYSei

    • Push on the metal tab with a flathead screwdriver or an iFixit tool to remove the CD rom. It is located below a previously removed screw.

    • Do not pull the CD rom out from the side before pushing the metal tab as it will only damage the cover.

    • Remove the three (4 mm Phillips #00) screws that were previously covered by the CD rom.

  7. SgTtAMgdGCHTfjpf
    SgTtAMgdGCHTfjpf
    MEVufdLxECcmylFi
    J5UBYBTdAekgaCOx

    • Once the screws are out and the CD rom is removed, the back cover can be taken off by hand.

    • Disconnect the speaker cables located in picture 1 and 2.

    • Remove two 8 mm Phillips #00 screws on each corner shown in picture 3.

  8. 1wOdXKyNRYFQH1UT
    1wOdXKyNRYFQH1UT
    SZhNe2bXcjpTvlhg
    dV4ZhwqGDpWgRgrk

    • Pry the keyboard gently using the iFixit prying tool.

    • Make sure to unhook the cables and wires from the keyboard gently in Picture 3.

  9. EuKQn1L2iChNdFyM
    EuKQn1L2iChNdFyM
    i3eewCn4ARqEJuio

    • Now you can pull the keyboard off but make sure to do so carefully without damaging or scuffing any components.

    • Pull up and out at an angle as to avoid damaging the internals of the laptop.

  10. RiqAIIW3lIUN4O2M
    RiqAIIW3lIUN4O2M
    qQTRQkxtf5ojOrKA

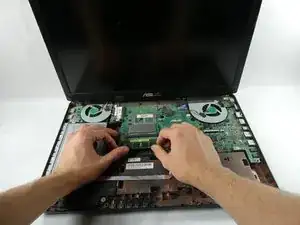

    • The RAM module is located directly in the center of the computer on top of the motherboard.

    • Push in the two levers on each side of the RAM module. This frees the module from the slot and allows removal.

    • Once loose, pull the RAM module away from the slot at a 45 degree angle as to not damage it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
