Einleitung

To access your hard drive, remove the back plate as shown in these steps.

  1. nbvRvE6uq3DZPGFR
    • With the computer upside down, lift up on the rubber cap on the back plate to access the captive Phillips #2 screw.

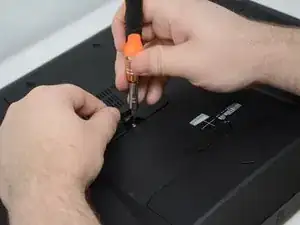

  2. a2BpxirLSrPCpegX
    • Retract the Phillips #2 screw until the cover is loose.

    • The screw will not come all the way out.

  3. Ck6WXOwVMwI6QF6X
    Ck6WXOwVMwI6QF6X
    KioZV5UZAMTqt6e6
    R3rATrXJ4JDOfFYZ

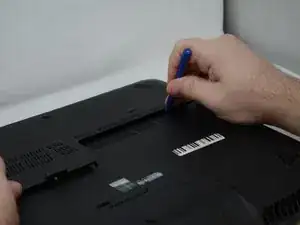

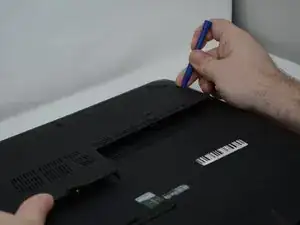

    • Pry around the edges of the plate using a plastic opening tool until the plate is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
