Einleitung
Use this guide if your keyboard is not operating correctly or to clean out any stuck keys.
Werkzeuge
-
-

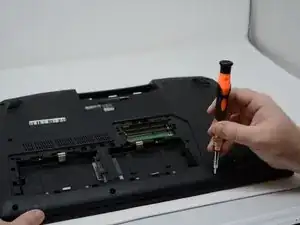

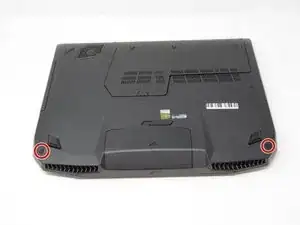

Remove both of the 8mm Phillips #2 screws from these slots where the rubber caps were removed.
-
-
-

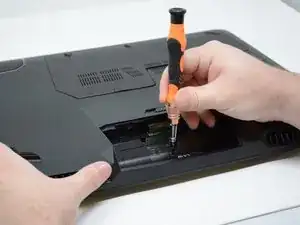

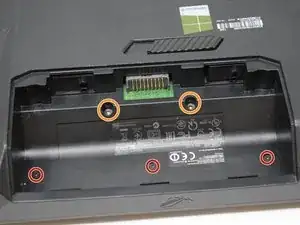

Remove the three 4mm Phillips #2 screws from the open battery slot as shown.
-

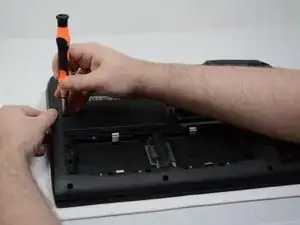

Remove the two 5mm Phillips #2 screws.
-
-
-

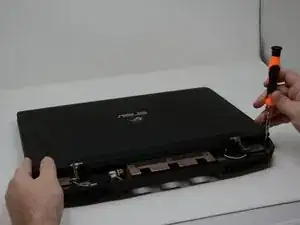

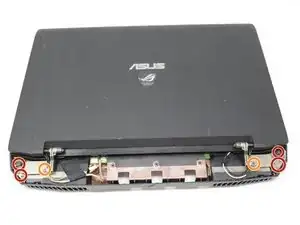

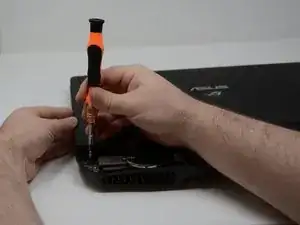

Remove the six 8mm Phillips #2 screws to remove the display.
-
Remove the two 4mm Phillips #2 screws.
-
-
-

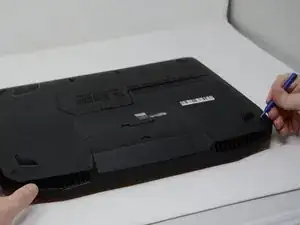

Remove the four rubber tabs circled in green on the bottom of the device.
-

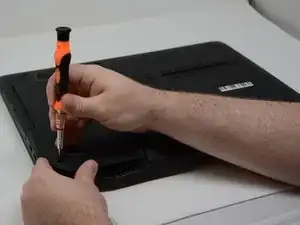

Remove the five 4mm #2 Phillips screws.
-
Remove the two 8mm #2 Phillips screws.
-
Remove the two 1cm #2 Phillips screws.
-
-
-

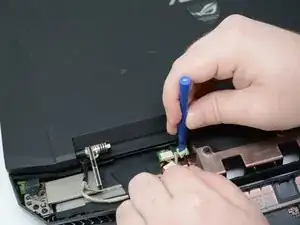

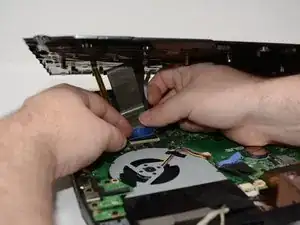

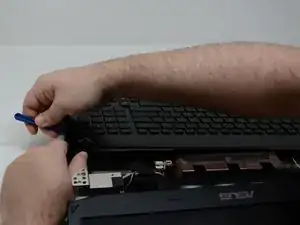

Remove the four connectors using your pry tool.
-

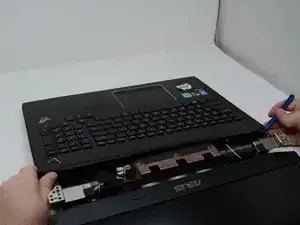

The keyboard will now be separated from the main computer.
-
To reassemble your device, follow these instructions in reverse order.
