Asus ROG G750JM-BSI7N23 Motherboard Replacement

Geschrieben von: Tanner
  • Kommentare: 1
Asus ROG G750JM-BSI7N23 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide if your computer is not responding even after you have replaced the battery and power components.

  1. DEARSUDneTJkSIBY
    DEARSUDneTJkSIBY
    NjRWNGumpXWOm2xm

    • Using a plastic opening tool, remove the two rubber tabs circled in red.

  2. R66NSZvTktJRK3hI
    R66NSZvTktJRK3hI
    MuGwQJsJAhJjBOnG

    • Remove both of the 8mm Phillips #2 screws from these slots where the rubber caps were removed.

  3. T3gAbIELU2ajNbJI
    T3gAbIELU2ajNbJI
    K2alCSAotj3ZNZMF

    • Slide the tab to pop the battery out of its holder.

    • Pull the battery out of its slot.

  4. 5QvDNPBBijqOL6PQ
    5QvDNPBBijqOL6PQ
    KV5ZoBVPw6TqmSND

    • Remove the three 4mm Phillips #2 screws from the open battery slot as shown.

    • Remove the two 5mm Phillips #2 screws.

  5. GZQPnRmAFCdOaiRU
    GZQPnRmAFCdOaiRU
    yQMS4oTQNRcAbijx
    iv1v34VZDD2uoRuP

    • Begin prying up on the plate as shown in the pictures.

  6. MkKX6WGv3d1ofEQk

    • Detach the single connector using your plastic opening tool.

    • Remove the speaker bar.

  7. nbvRvE6uq3DZPGFR

    • With the computer upside down, lift up on the rubber cap on the back plate to access the captive Phillips #2 screw.

  8. a2BpxirLSrPCpegX

    • Retract the Phillips #2 screw until the cover is loose.

    • The screw will not come all the way out.

  9. Ck6WXOwVMwI6QF6X
    Ck6WXOwVMwI6QF6X
    KioZV5UZAMTqt6e6
    R3rATrXJ4JDOfFYZ

    • Pry around the edges of the plate using a plastic opening tool until the plate is removed.

  10. oT1ZQGsyH3ssXEou
    oT1ZQGsyH3ssXEou
    UevVLMZpPALDOmyS
    RVWCqcPHHSW2SMXs

    • Remove the six 8mm Phillips #2 screws to remove the display.

    • Remove the two 4mm Phillips #2 screws.

  11. n1dpAEuwgJAaFOoH
    n1dpAEuwgJAaFOoH
    ZDsbAXJsR2SyZKUF
    fj4iN2fuKQj3cSWU

    • Remove the four rubber tabs circled in green on the bottom of the device.

    • Remove the five 4mm #2 Phillips screws.

    • Remove the two 8mm #2 Phillips screws.

    • Remove the two 1cm #2 Phillips screws.

  12. wvLhpHusoDcPDtsV
    wvLhpHusoDcPDtsV
    JJIhjH3Nshr6rnjJ
    At4eivngqCscShbG

    • Pry around the keyboard on the top topside as shown to remove it from shell.

  13. bncK2fuPvHEsu4UI
    bncK2fuPvHEsu4UI
    6NlO2umMSafZkbmT
    vZARrWLQNvyiPPAt

    • Remove the four connectors using your pry tool.

    • The keyboard will now be separated from the main computer.

  14. QQCMWDp1wR1XxT5A
    QQCMWDp1wR1XxT5A
    OcPQhklvhVOCS5g1
    11tt1vN3WnN4D2Ig

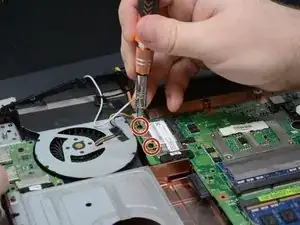

    • First, remove the two 7mm #2 Phillips screws circled in red to fold the silver plate over.

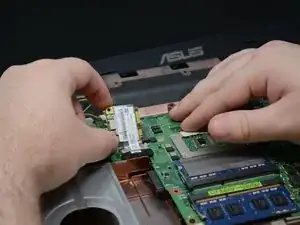

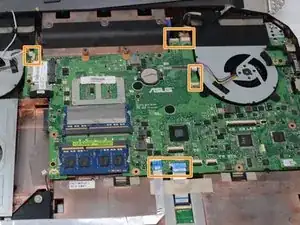

    • Remove all the connectors shown in the orange squares. You may need to use your plastic opening tool for the smaller ones.

  15. kQWya2XUGP3WZZM1
    kQWya2XUGP3WZZM1
    ZjbVHBqTOcZXGgXl
    fvWTgLgeoZbBAlws

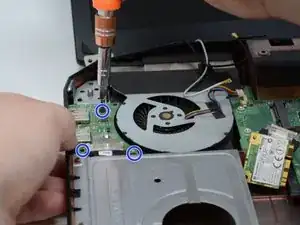

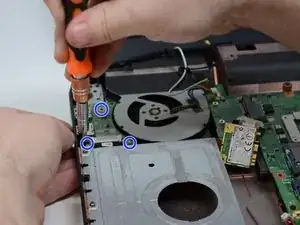

    • Remove the three #2 Phillips screws from the small wireless card located in the top left.

  16. eEoAhSDUnJXdoR3e
    eEoAhSDUnJXdoR3e
    rGGvWIpVGfrwQTFX

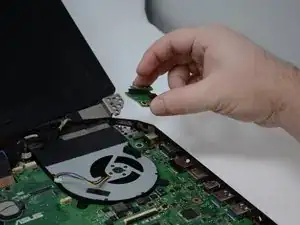

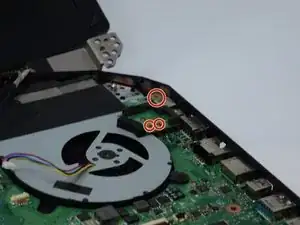

    • Remove the three #2 Phillips screws from the small power button card in the top right.

  17. VVO2CVNJ2MljDeZQ

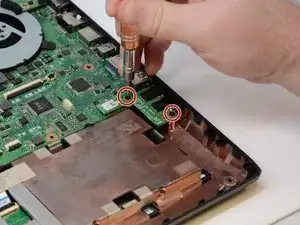

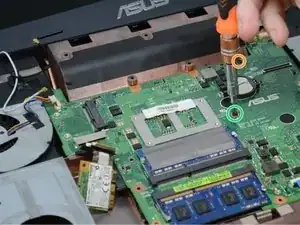

    • Remove the two #2 Phillips screws for the audio card located in the bottom right.

  18. NdVjdiUy6m3vfHgN
    NdVjdiUy6m3vfHgN
    TnOZ3NghCKL6EqWb
    iEeD5uRgHMA6bCM5

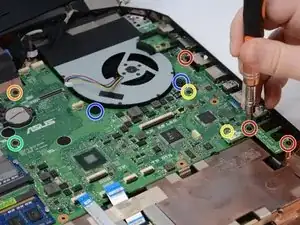

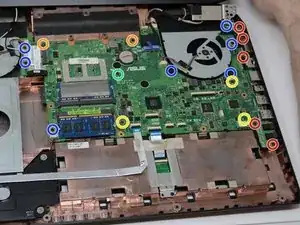

    • Remove all 8mm #2 Phillips screws .

    • Remove all 2mm #2 Phillips screws.

    • Remove all 3mm #2 Phillips screws.

    • Remove all 7mm #2 Phillips screws.

    • Remove all 4mm #2 Phillips screws.

  19. CWZw6XBgQoCYk4iL

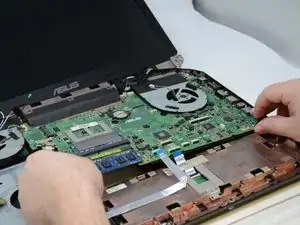

    • When all the screws are removed, pry up on the edges of the circuit board. You may need your plastic opening tool to access the edges.

Abschluss

To reassemble your device, follow these instructions in reverse order.
