Einleitung

  1. ZRZEdXCpM5OiyJ3Y
    ZRZEdXCpM5OiyJ3Y
    DdoxkFQZInUUTOMG
    • Use an opening tool to pry up the small rubber cover on the upper right corner of the RAM access door.

  2. tOYnCxUOyYZsQbOL
    • Remove the 5.3 mm Phillips #00 screw securing the RAM access door.

    • This screw is held in the hole in the door with a washer and will not come out of the hole, even after you unscrew it.

  3. JLgaT2jFW1VmKOgu
    JLgaT2jFW1VmKOgu
    XEtuiwI1qOlapaTM
    • Insert the point of an opening pick in the seam near the top right corner of the RAM access door and gently pry the door up slightly.

    • The door is held in place by small clips around its edges. Pry until you feel the nearest clips release.

  4. TEE5PrYbGXmxJW1k
    TEE5PrYbGXmxJW1k
    G6undfclxW3QPvWO
    1B2egEmUAtLhPFmB
    • Insert the wide edge of an opening pick into a new part of the seam between the door and the computer.

    • Pry the door up to release the clips closest to the pick.

    • Continue to slide the pick along the seam all the way around the door, prying as you go, until all the clips holding the door down have been released.

  5. 6mJbRDrkfoWOMRDP
    • Remove the RAM access door.

  6. gc1WdWTqDaeYJsqT
    gc1WdWTqDaeYJsqT
    iXFK2LjNViQQnX52

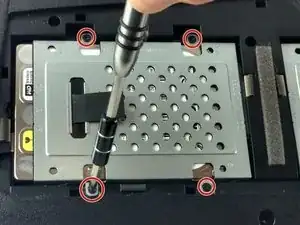

    • Remove the four 2.4 mm screws securing the left hard drive with a Phillips screwdriver.

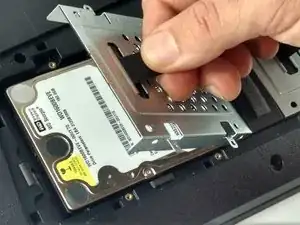

    • Use the pull-tab to lift the hard drive housing and pull the hard drive away from the connector.

  7. YQr1NtqSnUDlQjoh
    YQr1NtqSnUDlQjoh
    RHwEqCWSLIBJUWMA
    M6oEeBjp4Eg2M5wn

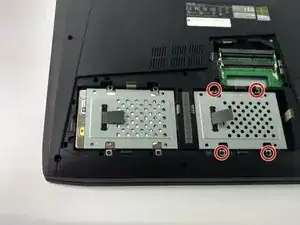

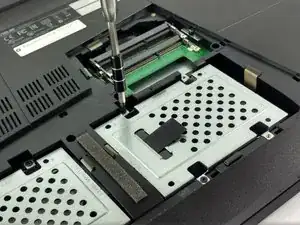

    • Remove the four 2.4 mm screws securing the right hard drive housing with a Phillips screwdriver.

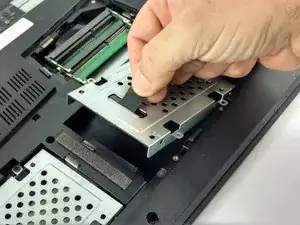

    • Use the pull-tab to lift the hard drive housing and pull the hard drive away from the connector.

Abschluss

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
