Asus ROG G751JL-BB17T29 Speaker Replacement

Geschrieben von: Kristofer Cesaroni
  • Kommentare: 0
Asus ROG G751JL-BB17T29 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to remove the speakers in an Asus ROG G751JL laptop.

  1. ElTAxo26uxokqeSF

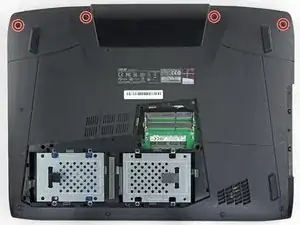

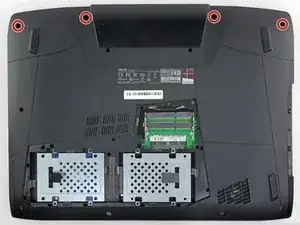

    • Use the point of a spudger to pry out four rubber plugs covering the screws on the bottom of the laptop.

    • Some plugs have a hole or notch into which you can insert the point of a spudger to more easily pry out the plugs.

    • Although the RAM access door and the optical drive have been removed in the following pictures, it is not necessary to remove either for this procedure.

  2. DkZ2NsbYmF12dMw6

    • Remove four 8.8 mm Phillips #00 screws.

  3. mUFeFtXLGv4TvlHy
    mUFeFtXLGv4TvlHy
    mqiCBMWkIIPaMZX1
    TIkW1meBPOY51DE1

    • Flip the laptop right-side up.

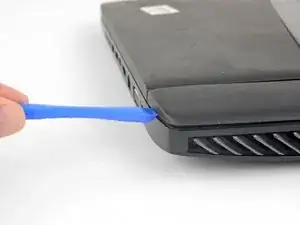

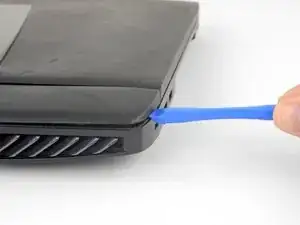

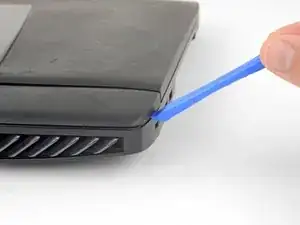

    • Use an opening pick to pry the left and right edges of the battery cover away from the laptop enough that you can grip the cover with your fingers.

  4. QAhUenirEWcnNttc
    QAhUenirEWcnNttc
    AunfJZMKZIMNSRmf

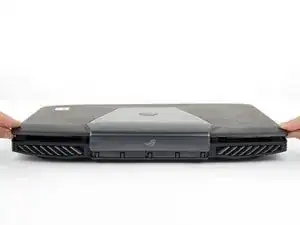

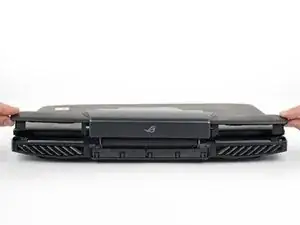

    • Lift the battery cover straight up from the laptop.

    • Do not try to completely remove the cover yet, it is still tethered by a speaker cable.

  5. KZJGv1jU1XRyFYr1
    KZJGv1jU1XRyFYr1
    MGrPNOZmpeBsjSod

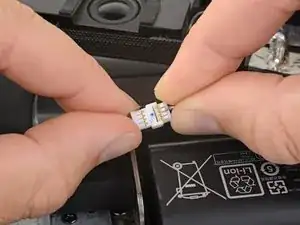

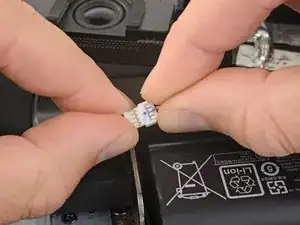

    • Pull the speaker connectors straight away from each other to disconnect the speaker cable.

    • Make sure the speaker cable is out of the way before you reinstall the battery cover.

  6. YVUgiTVEmbHecYhe
    YVUgiTVEmbHecYhe
    qa22kLHEYaMZVwxv
    CF6PrvnRdI2NYHpC

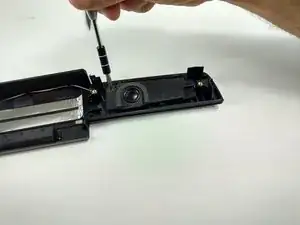

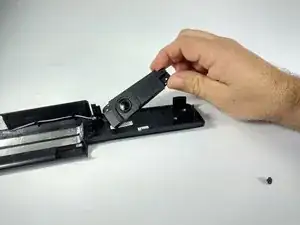

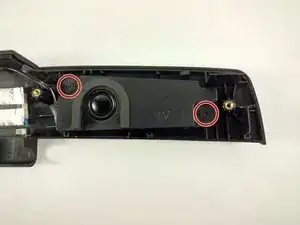

    • Remove the two 2.8mm screws on the left speaker housing using a Phillips screwdriver.

    • Be careful not to fully remove the speakers at this point as you may tear the four-pin connector.

  7. F1CjYw2PVcQkiVpb
    F1CjYw2PVcQkiVpb
    iHrNljYDZaR5TPIE
    aLr3ollSEDyhtuwI

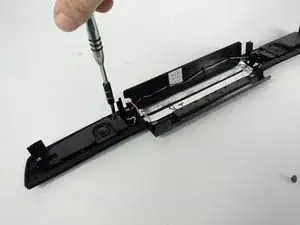

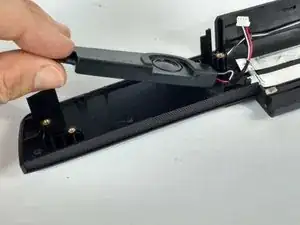

    • Remove the two 2.8mm screws on the right speaker housing using a Phillips screwdriver.

    • Be careful not to fully remove the speakers at this point as you may tear the four-pin connector.

  8. aE1HHAqZwBr2SeNC
    aE1HHAqZwBr2SeNC
    YQhx1VNDZD6MhilY
    HI5qrfHmXgBsp1sP

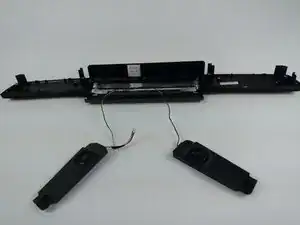

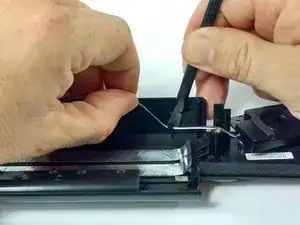

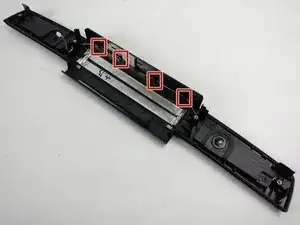

    • Using the nylon spudger, pry back the four clips holding the speaker connection cable in place.

    • Your are now clear to remove the speakers from the housing.

    • Take extra care while using the spudger tool to pry back the clips. These clips are fragile and may snap if too much pressure is applied.

Abschluss

To reassemble your device, follow the above steps in reverse order.
