Einleitung
This guide will demonstrate how to replace the fan in the Asus ROG G751JL-BSI7T28 laptop. The fan of a computer is critical to keeping the device cool, making its performance and longevity better. Symptoms of a faulty fan can include frequent overheating during heavy or normal computer use.
This guide is compatible with the following ASUS models: G751, G751J, G751JM, G751JT, G751JL, and G751JY.
Before beginning, make sure to power off your device before starting this guide to prevent any electrical injuries or damage to your computer.
-
-

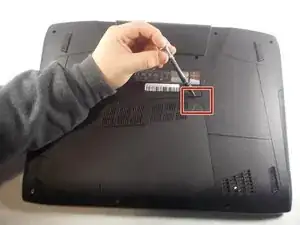

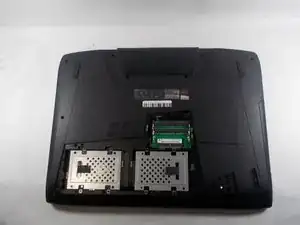

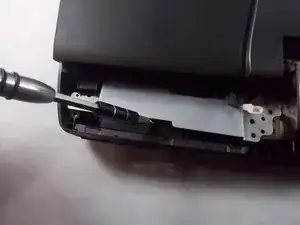

Place a spudger into the notch, and pry the small triangular piece away from the laptop.
-

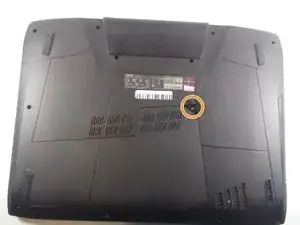

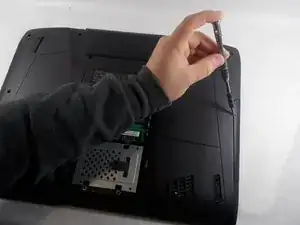

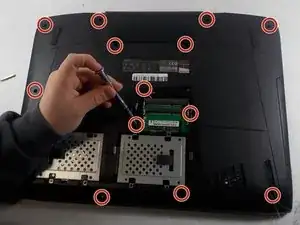

Using a Phillips #00 screwdriver, remove the single 3 mm screw.
-

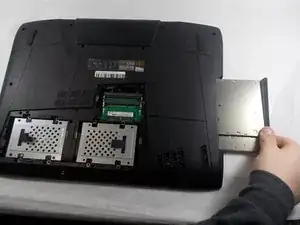

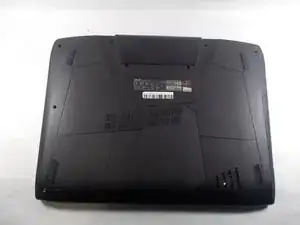

Place a spudger beneath the back panel and pry it away from the laptop.
-
-
-

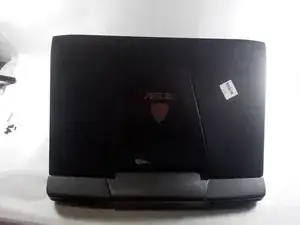

Open the laptop and turn it so that the ASUS logo is facing you.
-

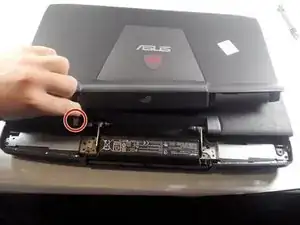

Gently lift up the display hinge housing shroud, but don’t pull it completely away yet.
-

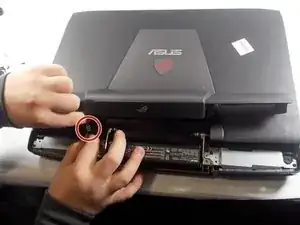

Disconnect the RGB light power cable in the shroud, now the shroud can be put aside.
-
-
-

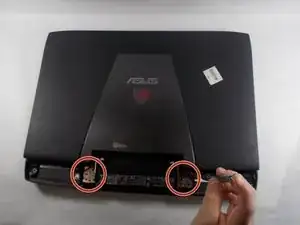

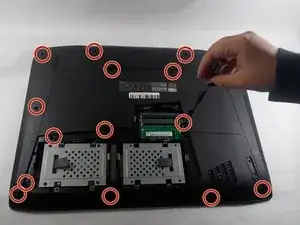

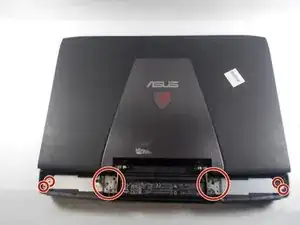

Remove the 5mm Phillips #00 screws.
-

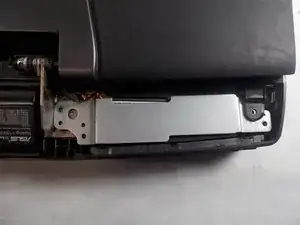

Lift up the silver hinge brackets on each side of the laptop.
-
-
-

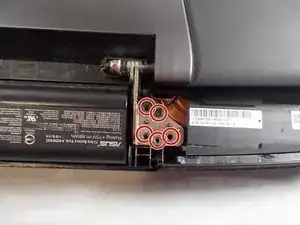

Remove the 5mm Phillips #00 screws from the hinges.
-
Detach the ribbon cable and remove the display assembly from the laptop.
-
-
-

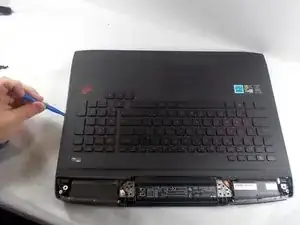

Carefully lift the keyboard up, being careful to not damage the fragile ribbon connectors.
-

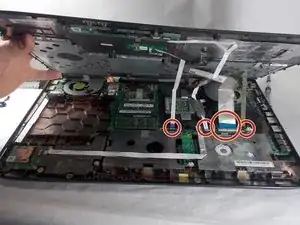

Use an opening tool to detach the ribbon cables connecting the keyboard to the rest of the laptop.
-
Remove the keyboard from the laptop.
-
-
-

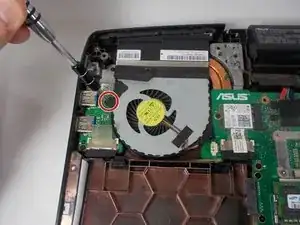

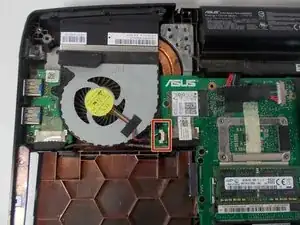

Remove the 5mm Phillips #00 screw.
-

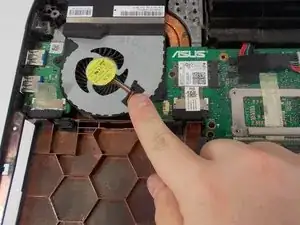

Pull up on the black tab connected to the fan. This will pull it away from the cooling fins, allowing it to be removed.
-

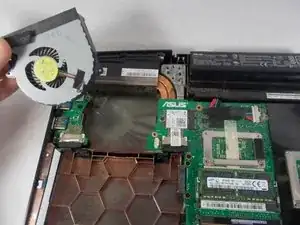

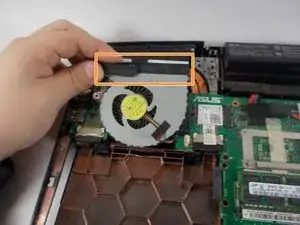

Remove the fan from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
