Asus ROG G751JL-DS71 Battery Replacement

Geschrieben von: Aurora Rios
  • Kommentare: 14
Asus ROG G751JL-DS71 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will show the user how to safely remove and replace the battery.

  1. NxroU1TUlR4Y3XW4
    NxroU1TUlR4Y3XW4
    is2e5PrQgImD2SMh

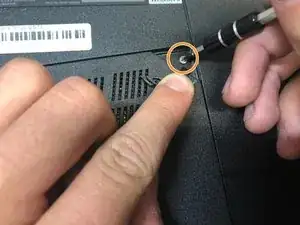

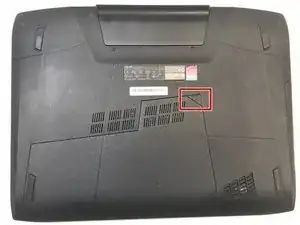

    • Lift the rubber cover found on the bottom of the laptop.

    • Remove the 5.2 mm screw with a Phillips 1 Screwdriver.

    The screw doesn't come out completely.

    Steve Menard -

  2. bmFS4qdhsQ1NskJM
    bmFS4qdhsQ1NskJM
    KeMZOcIPSAXBfH15
    ELmPVbwHotQf2lYD

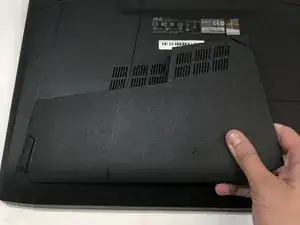

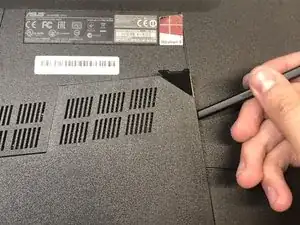

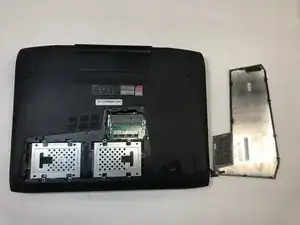

    • Use the nylon spudger to remove the back center panel.

    Pull up on the rubber cover to aid the spudger.

    Steve Menard -

  3. 1xCaVkQkCAuuBnsp
    1xCaVkQkCAuuBnsp
    aDOcBKdjtAYmAaWp

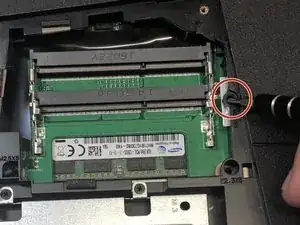

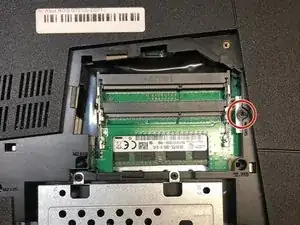

    • Use a Phillips 1 Screwdriver to remove the 5 mm screw that is located underneath the back panel.

    Why is it necessary to remove the CD Drive?

    Judi Pillsbury -

  4. Oq2QHkODeeFXDWcx
    Oq2QHkODeeFXDWcx
    kqU4c4FhWJKelGRh

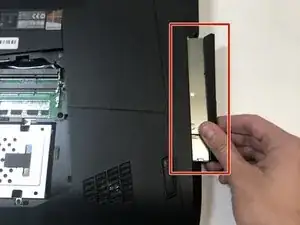

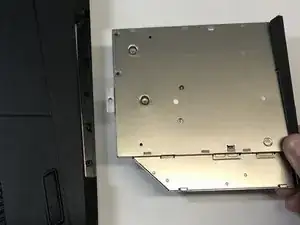

    • Pull out the optical drive found on the side of the laptop.

  5. wUwoLEoKnNHaHbOd
    wUwoLEoKnNHaHbOd
    WXDxyfGZLAnEOqLn

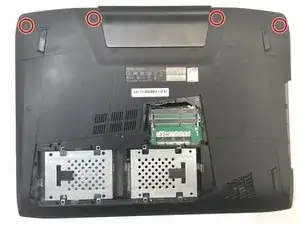

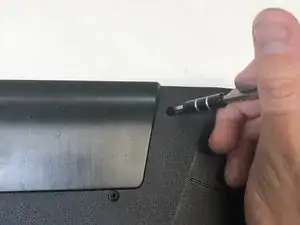

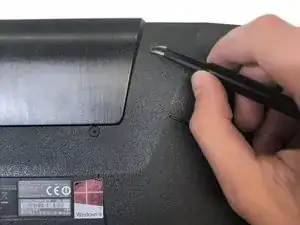

    • Use a pair of tweezers to remove the top four rubber stoppers found on the bottom of the laptop.

  6. shXxjROn2uTyyTCW
    shXxjROn2uTyyTCW
    luMdsauV3wRqSrJb

    • Use a Phillips 1 Screwdriver to remove the top four 8.5 mm screws.

  7. UUpIuEkPXXglBuxV
    UUpIuEkPXXglBuxV
    GeS1hLSVjaudaq4R
    oFVvjZDloSH1ZmR1

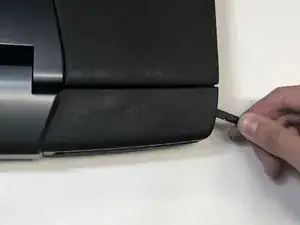

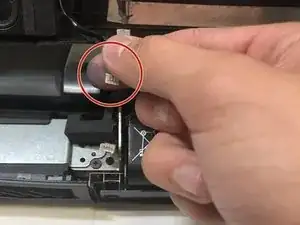

    • Use a nylon spudger to carefully pry the top back panel off.

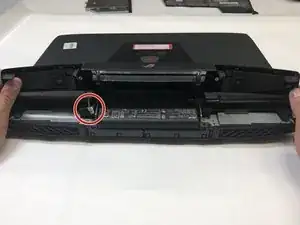

    • While removing the top back panel, be careful not to break the four pin connector located underneath.

    • Disconnect the four-pin connector and remove the top back panel from the computer.

  8. gDyorlIkdFkpGlnL
    gDyorlIkdFkpGlnL
    HPZfAgGGVAkQn6CC
    vDYToiAsbJWcFAJ3

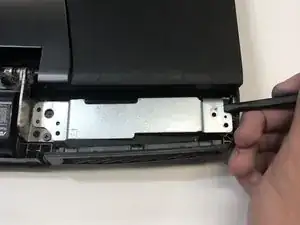

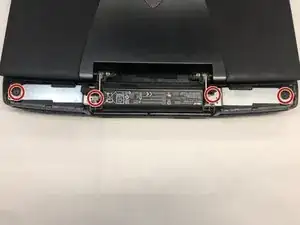

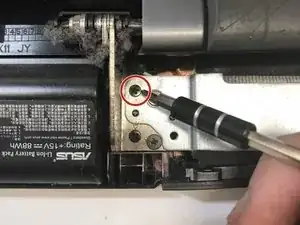

    • Use a Phillips 1 Screwdriver to remove the four 6.8 mm screws underneath the back panel.

    • Lift away the metal housings from each side of the laptop.

    There are 3 screws to remove on the left side as the rear of the laptop is facing you.

    Steve Menard -

  9. TXeaALBhDnVTsUKI
    TXeaALBhDnVTsUKI
    xMprn4ALVlvR2JWq

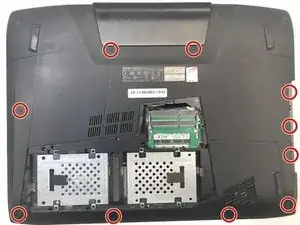

    • Use a Phillips 1 Screwdriver to remove the ten 5.2 mm screws holding the main panel in place.

    • Use a Phillips 1 Screwdriver to remove the four 5.2 mm screws underneath the center panel.

  10. mQnppBZfwepcoAIJ
    mQnppBZfwepcoAIJ
    fWaSqBTqcIynfIIY
    4LrWGuaInsL6hyqC

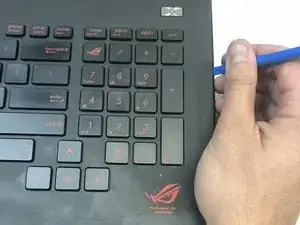

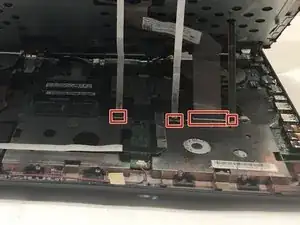

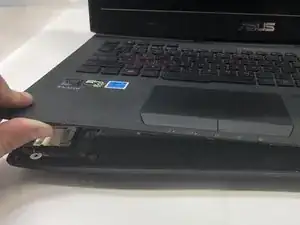

    • Use a plastic opening tool to pry the keyboard from the base of the laptop.

    • Lift the keyboard carefully so as to not tear or break the four ribbon connectors underneath the keyboard.

  11. 5KgZX6NacAkBDmdF
    5KgZX6NacAkBDmdF
    HuLJWCfnkLZYaCNe

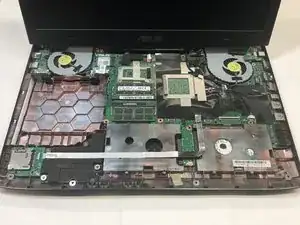

    • Use a pair of tweezers to undo each of the four ribbon connectors.

    • The keyboard is now completely disconnected from the laptop and you can remove it.

    ON STEP 11

    Do not just pull the ribbons out! locate the grey bar on the connectors and lift them gently from the ribbon side upward, they will open and the ribbons will come away easily, replace the ribbons by putting them in place and clicking down the grey bars to lock them in.

    Off Duty Pastor -

    Crud!! I didn't see your comment in time, Pastor! I am not accustomed to ribbon connectors. I found out too late, after severing one, that they each have “clips” locking them in place. This battery replacement just became complicated.

    Steve Menard -

    This is the keyboard panel removal. What about removing the keyboard from the keyboard panel?

    tech cowboy -

  12. Bs1ZaxQwKY6USVlL
    Bs1ZaxQwKY6USVlL
    tKSVtCGxdcr3f3Cu

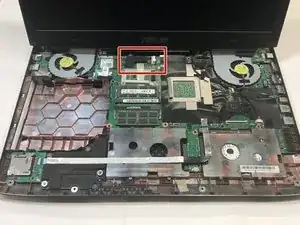

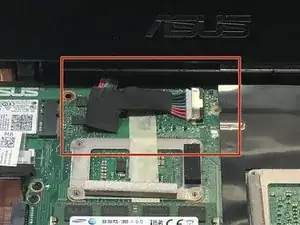

    • Use a pair of tweezers to carefully disconnect the pin connector.

    ON STEP 12

    BEWARE The guidance and second photo here is for the battery connector!!

    DO NOT REMOVE MONITOR UNTIL YOU HAVE DISCONNECTED THE BLACK AND WHITE CABLES ON THE LEFT SIDE OF THE LEFT HINGE (Lift then off gently with tweezers) AND THE FLAT CONNECTOR ON THE RIGHT SIDE OF THE RIGHT HINGE! (There is a strap for you to gently pull on!)

    Off Duty Pastor -

    I have a red and yellow wires that i have no idea were they go they are coming out of the monitor

    Eugene Nelson -

    I have a red and a blue wire coming from my monitor I have no idea where they go there's nothing in the instructions that said anything about them anyone have any thoughts

    Eugene Nelson -

  13. NFGEnpDnnfwXYqkS
    NFGEnpDnnfwXYqkS
    WmZAgXEwtwGfnkg3
    FGjrJEwWYIOw3GuX

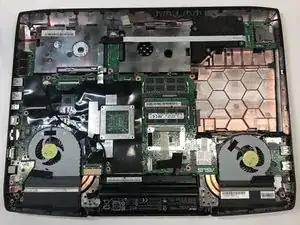

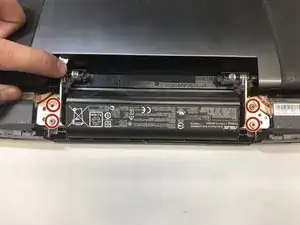

    • Use a Phillips 1 Screwdriver to remove the final four remaining 6.8 mm screws located underneath the back panel.

    • The monitor is now free to be completely lifted off the laptop.

    I had 3 screws on either side.

    Steve Menard -

  14. CehyyNHe1k2Fky52
    CehyyNHe1k2Fky52
    Hao36Dq6MgtxeMgl

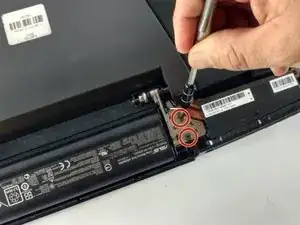

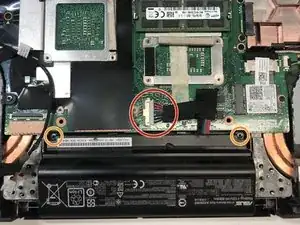

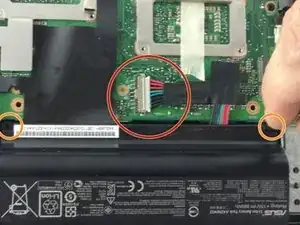

    • Disconnect the pin connector that attaches the battery to the motherboard.

    • Use a Phillips 1 Screwdriver to remove the two 5.4 mm screws.

  15. DrRxToEKrpybF4aW
    DrRxToEKrpybF4aW
    irSqsiOUpUaQES2P

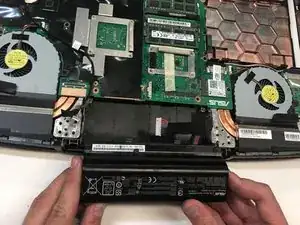

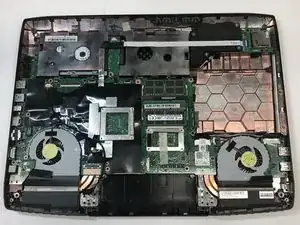

    • The battery can now be lifted away from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
