Asus ROG G751JL-DS71 Central Processing Unit Replacement

Geschrieben von: Justin Keathley
  • Kommentare: 4
Asus ROG G751JL-DS71 Central Processing Unit Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

1 Stunde

Einleitung

This guide will teach you how to replace the Central Processing Unit in your device. This is important for the usability of the device.

  1. PmAfpLJREbTsDOPQ
    PmAfpLJREbTsDOPQ
    4yhIJMJcPnCCsvVY

    • Lift the rubber cover found on the bottom of the laptop.

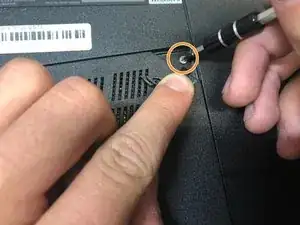

    • Remove the 5.2 mm screw with a Phillips 1 Screwdriver

  2. RwE1FPgWlMr4ID2p
    RwE1FPgWlMr4ID2p
    MJUII2OEWgOcOZ5S
    NbOQgI6DUOAjGXCE

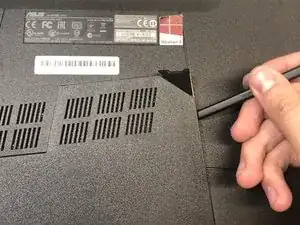

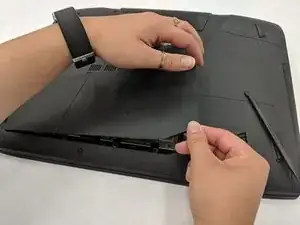

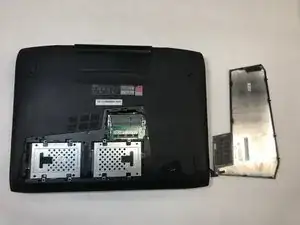

    • Use the standard spudger to remove the back center panel.

  3. skVExsUUmY3VbSBs
    skVExsUUmY3VbSBs
    dvG1cGEhCUxF14FZ
    qCRnNCWuCDnfyVr4

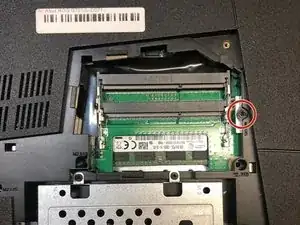

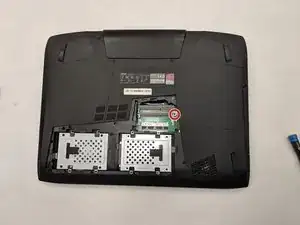

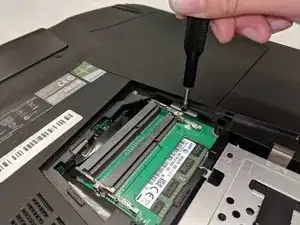

    • Use a Phillips 1 Screwdriver to remove the 5 mm screw that is located underneath the back panel.

  4. Y6UV1eHoiVajW1ST
    Y6UV1eHoiVajW1ST
    16nkrMIMQfeQXEWI

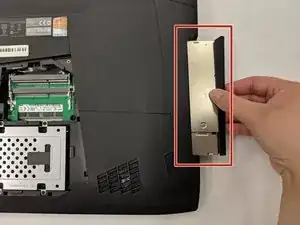

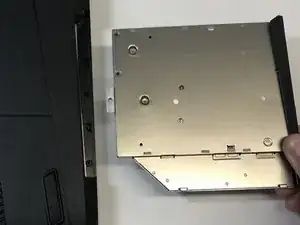

    • Pull out the optical drive found on the side of the laptop.

  5. eHIkRJMBKOaVYjJo
    eHIkRJMBKOaVYjJo
    AHUDLuvfx2QGSEMo
    uJ3hNUnKUYFddZLg

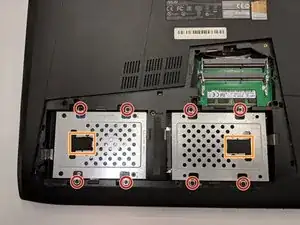

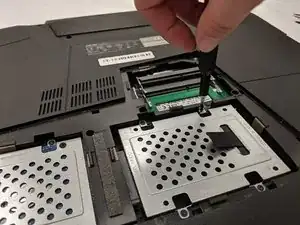

    • Remove the screws holding the hard drives in place using a phillips #1 screwdriver.

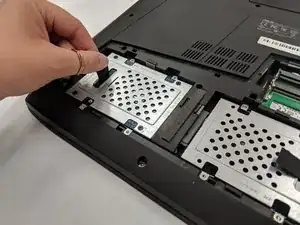

    • Using the small flaps, remove the hard drives by hand.

  6. WbLsRAJ4JbstjqMM
    WbLsRAJ4JbstjqMM
    QJfPbkdwNYuaYSPO

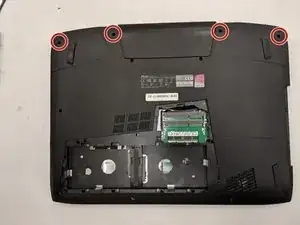

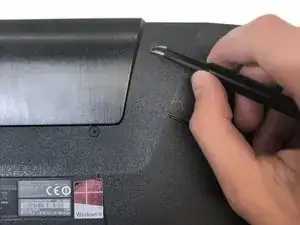

    • Use a pair of tweezers to remove the top four rubber stoppers found on the bottom of the laptop.

  7. 51TLytOZLSuvRgCG
    51TLytOZLSuvRgCG
    Pw6NKFjcAgyeD2yx

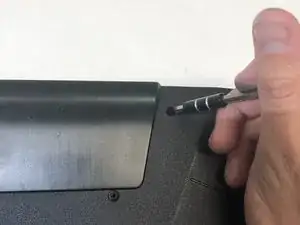

    • Use a Phillips 1 Screwdriver to remove the top four 8.5 mm screws.

  8. LLLropgjAY4qPFMO
    LLLropgjAY4qPFMO
    WjXX6XLCyWwE3mL6
    bLGT6oOqWoiTN21T

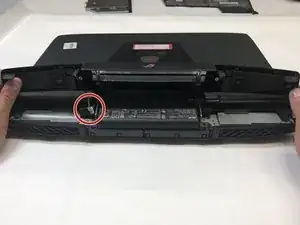

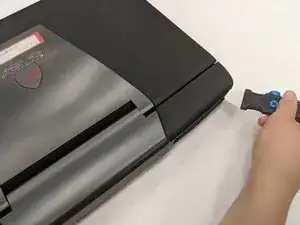

    • Use a metal spudger to carefully pry the top back panel off.

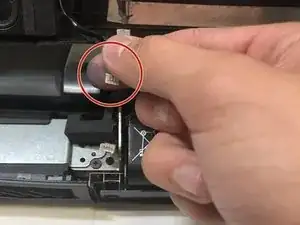

    • While removing the top back panel, be careful not to break the four pin connector located underneath.

    • Disconnect the four-pin connector and remove the top back panel from the computer.

  9. SgSaNGVfPMiHu6dF

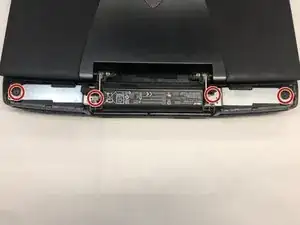

    • Use a Phillips 1 Screwdriver to remove the four 6.8 mm screws underneath the back panel.

  10. iDQ3RPRHRksWUebS

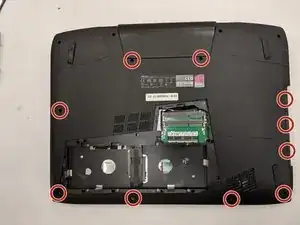

    • Use a Phillips 1 Screwdriver to remove the ten 5.2 mm screws holding the main panel in place.

  11. LuWNcFyqqcYDeGMW
    LuWNcFyqqcYDeGMW
    Fk1ncYTQ5DJsMUHl
    XLWaXHiHGWgfMbWG

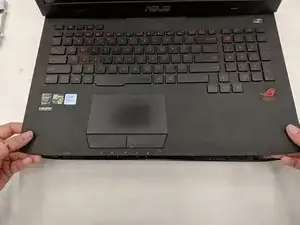

    • Use a metal opening tool to pry the keyboard from the base of the laptop.

    • Lift the keyboard carefully so as to not tear or break the four ribbon connectors underneath the keyboard.

  12. v5cyYYQ5fWZH3kQ4
    v5cyYYQ5fWZH3kQ4
    nEqkiLZvPsPGZqjZ

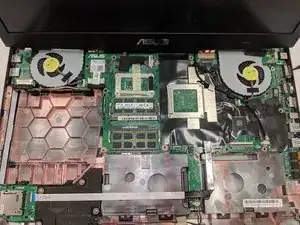

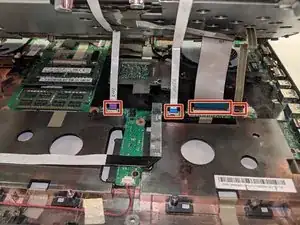

    • Use a pair of tweezers to undo each of the four ribbon connectors.

    • The keyboard is now completely disconnected from the laptop and you can remove it.

  13. PLGkVKgN5SpZeYHJ
    PLGkVKgN5SpZeYHJ
    BNMBSVfWVkWbBLgo
    u6riaNZGDXH2pkoU

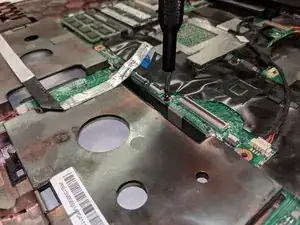

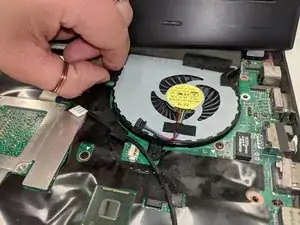

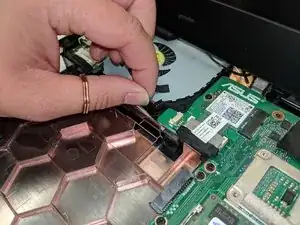

    • Remove the ribbon that connect the fans.

  14. SyTTVFdvOquQHJuK
    SyTTVFdvOquQHJuK
    NRMjnNlAofMdIOMJ

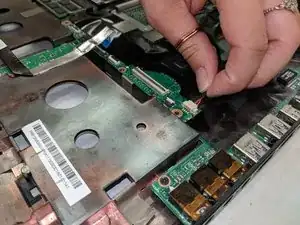

    • Remove the ribbon cables connected to the motherboard.

    remove fan missing

    jpfroud -

  15. wE1ypuPIFPCNcMGD
    wE1ypuPIFPCNcMGD
    gP6GaPrfZn6V1GNt
    6HJYyPhbRf4NnFmH

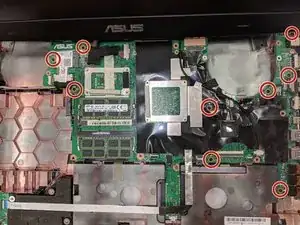

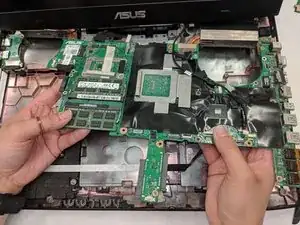

    • Remove the screws holding in the motherboard using a Phillips 0 screwdriver.

    • Remove the motherboard by hand. Be careful as the radiators for the fans are connected underneath the screen.

    some screws shouldn’t be removed and some other shoud (not mentionned)

    jpfroud -

  16. jIyKKXkwxUMXRiG6
    jIyKKXkwxUMXRiG6
    qYVIXphvmasNKQmp
    apEhfhieiJMatjor

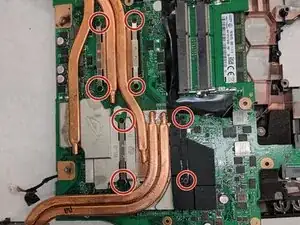

    • Remove the screws holding in the motherboard using a Phillips 0 screwdriver.

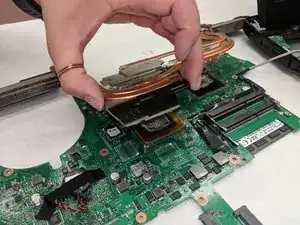

    • Remove the heat sink by hand. Be careful not to get thermal paste on your hand

  17. sylqGWGaFsAQQHJ3
    sylqGWGaFsAQQHJ3
    QqTPwrTWdc5WJ1Bj

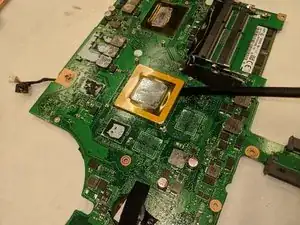

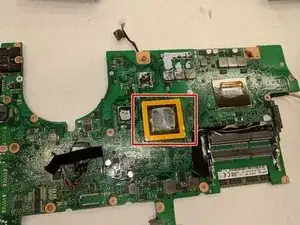

    • The CPU can then be removed with a regular spudger.

    • The CPU is now completely disconnected from the laptop and you can remove it.

    Okay, I'm really confused, first the thing that you are pointing to in the images is the gpu not the cpu, and... you say that you can take it out with a spudger...? This has to be a joke guide

    XPenacoba -

Abschluss

To reassemble your device, follow these instructions in reverse order.
