Asus ROG G751JL-DS71 Fan Replacement

Geschrieben von: Ashley Twigg
  • Kommentare: 1
Asus ROG G751JL-DS71 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

This guide will show you how to easily and successfully replace the fans within the ASUS ROG G751JL laptop. This is important for usability of the laptop.

  1. poxTNmM3ABN55JQP
    poxTNmM3ABN55JQP
    PFd3jCHjAvXWVfTq

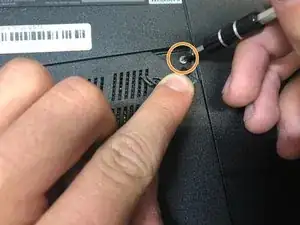

    • Lift the rubber cover found on the bottom of the laptop.

    • Remove the 5.2 mm screw with a Phillips 1 Screwdriver.

  2. DTIcvLSbGsuCdODW
    DTIcvLSbGsuCdODW
    yCMijXNROR6NXmIR
    Oas6qNNghUBibq1U

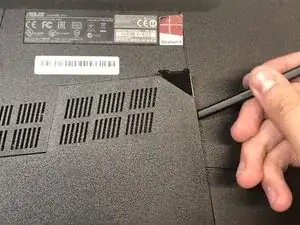

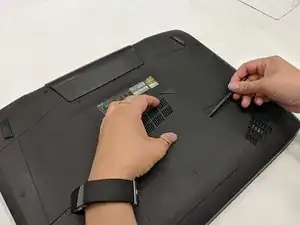

    • Use the standard spudger to remove the back center panel.

  3. A1xmQ1iXNQGTEJoI
    A1xmQ1iXNQGTEJoI
    dEjPdCDQDQiIiFAS
    6vBS3uqBQmutM2o4

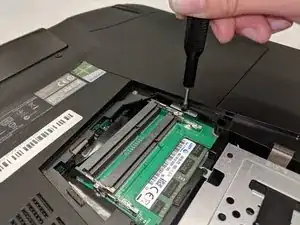

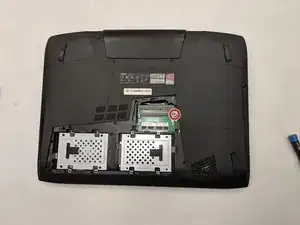

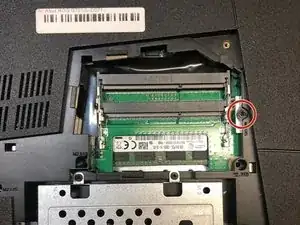

    • Use a Phillips 1 Screwdriver to remove the 5 mm screw that is located underneath the back panel.

  4. 3bPt2G3KbBYWjYbB
    3bPt2G3KbBYWjYbB
    UFoI5URWR1iqrMMT

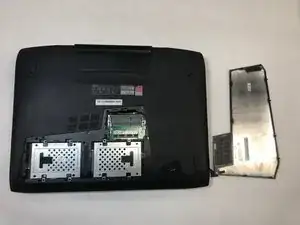

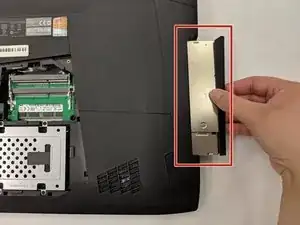

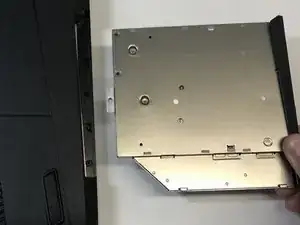

    • Pull out the optical drive found on the side of the laptop.

  5. MbObLsrtQcZ4EWHC
    MbObLsrtQcZ4EWHC
    f2431PTUqtfVYxdX
    fvv1S11BsZZTOJtj

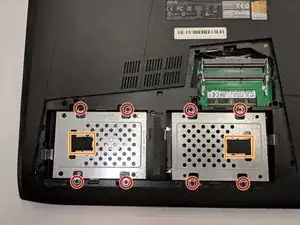

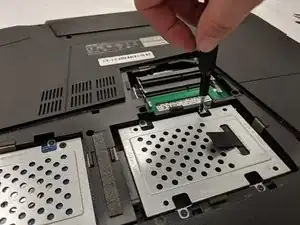

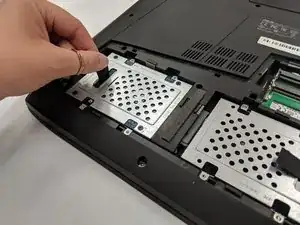

    • Remove the screws holding the hard drives in place using a phillips #1 screwdriver.

    • Using the small flaps, remove the hard drives by hand.

  6. wNATVPUWuQDalrYE
    wNATVPUWuQDalrYE
    SqHhLblrBLSYPZHd

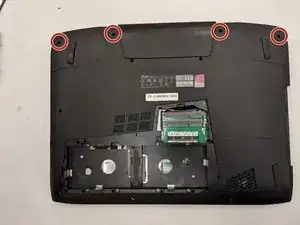

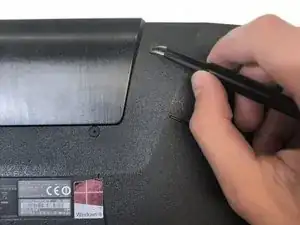

    • Use a pair of tweezers to remove the top four rubber stoppers found on the bottom of the laptop.

  7. iFkfpVEwXkwSscyN
    iFkfpVEwXkwSscyN
    3Sjm4IoeTiJHCHiA

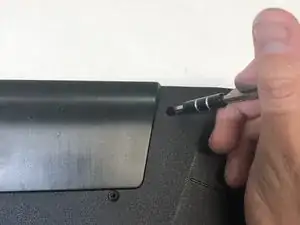

    • Use a Phillips 1 Screwdriver to remove the top four 8.5 mm screws.

  8. FcGcUPuLaGpuOXoB
    FcGcUPuLaGpuOXoB
    blsmwwGCYVtZQ1tx
    tTyh6Ka5RbiQBg13

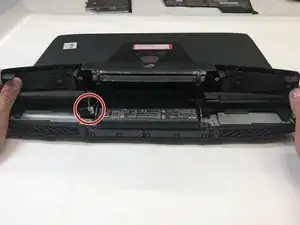

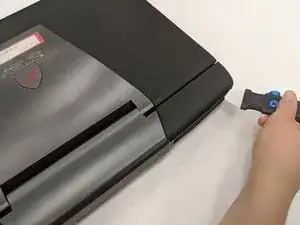

    • Use a metal spudger to carefully pry the top back panel off.

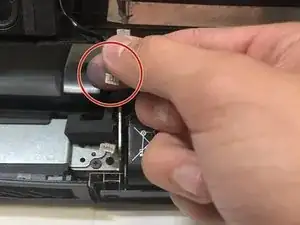

    • While removing the top back panel, be careful not to break the four pin connector located underneath.

    • Disconnect the four-pin connector and remove the top back panel from the computer.

  9. sXsMjngYjCVEMW5Z

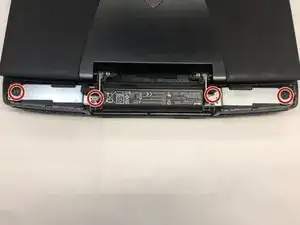

    • Use a Phillips 1 Screwdriver to remove the four 6.8 mm screws underneath the back panel.

  10. nXuBLRXuodhXKgZR

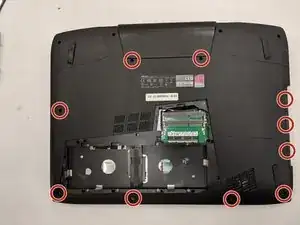

    • Use a Phillips 1 Screwdriver to remove the ten 5.2 mm screws holding the main panel in place.

  11. 3XUtkaiQOJdbhr4L
    3XUtkaiQOJdbhr4L
    EMlLGKxSBDA4PEGJ
    hPvJngJOQJhuGMHB

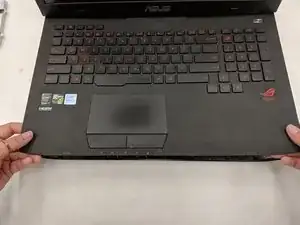

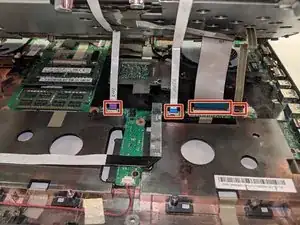

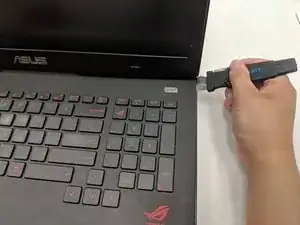

    • Use a metal opening tool to pry the keyboard from the base of the laptop.

    • Lift the keyboard carefully so as to not tear or break the four ribbon connectors underneath the keyboard.

  12. 3drmwNI2RBIDuVZT
    3drmwNI2RBIDuVZT
    LVGUOCr1APlZuIFX

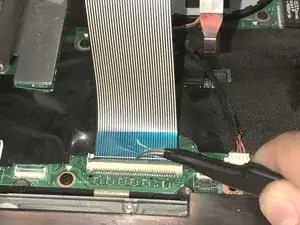

    • Use a pair of tweezers to undo each of the four ribbon connectors.

    • The keyboard is now completely disconnected from the laptop and you can remove it.

  13. bMsoi3FDedtOSQHq
    bMsoi3FDedtOSQHq
    HrNuKGbqx5UncZHA
    CBOQRo6wgsHKUrDJ

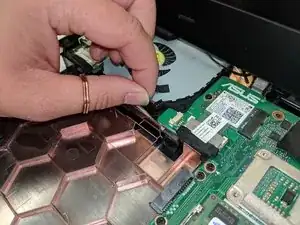

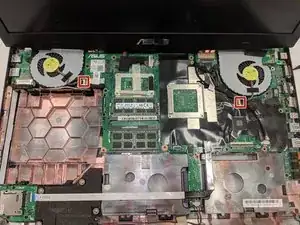

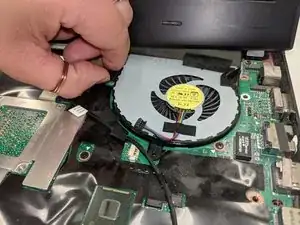

    • Disconnect the four-pin connectors from each fan and remove them

    • The fans are now completely disconnected from the laptop and you can remove them

Abschluss

To reassemble your device, follow these instructions in reverse order.
