Einleitung
This guide will help you locate and replace your hard drive on your computer.
-
-

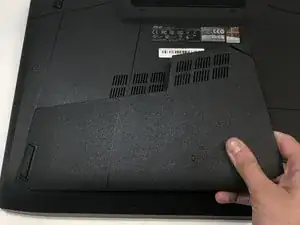

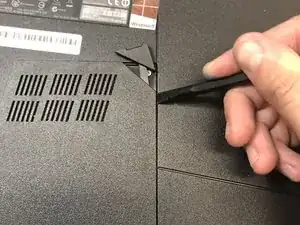

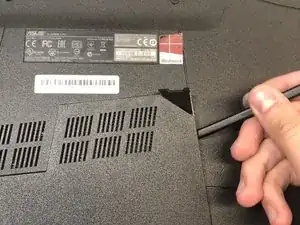

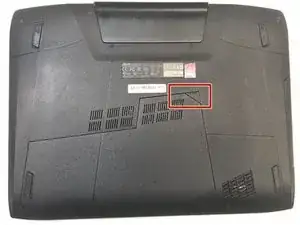

Lift the rubber cover found on the bottom of the laptop.
-

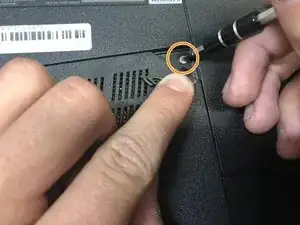

Remove the 5.2 mm screw with a Phillips 1 Screwdriver.
-
-
-

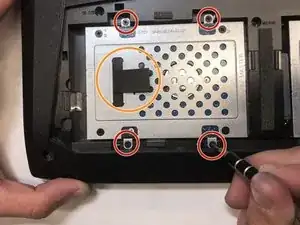

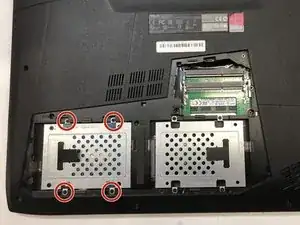

Use a Phillips 1 Screwdriver to remove the four 2.4 mm screws securing the hard drive.
-

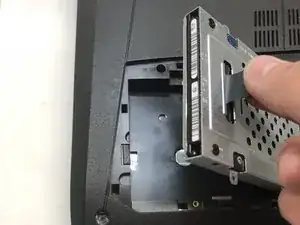

Use the black pull-tab located on the shell covering the hard drive, to lift the hard drive housing and pull the hard drive away from the connector.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
