Asus ROG G751JT-DH72 CD Drive Replacement

Geschrieben von: Anum Haidari
  • Kommentare: 0
Asus ROG G751JT-DH72 CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the CD drive in your device.

  1. SdouGF6ACwvRWQrs

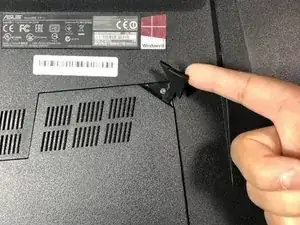

    • Lift up the rubber tab located in the upper-right corner of the backing plate.

  2. YIdmed5XmIlFNcPS

    • Use a Phillips #1 screwdriver to remove the 5.2 mm screw behind the rubber tap.

  3. GIgOOryrjNfhjjUt

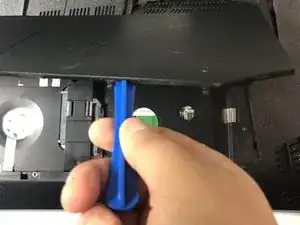

    • Carefully pull the backing plate off. If you have a pry tool, you can pry on the edges carefully.

  4. YnYVpsyNcoISqlSa

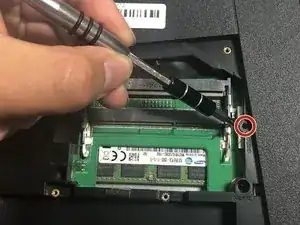

    • Use a Phillips #1 screwdriver to remove the 5 mm screw.

  5. NmG4HbwHXXMAngak

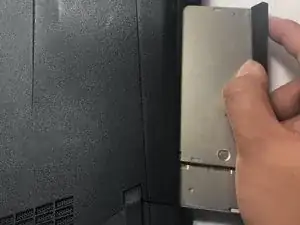

    • Pull out the drive and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
