Asus ROG GL551J Hard Drive Replacement

Geschrieben von: Thien Vu
  • Kommentare: 3
Asus ROG GL551J Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

Use this guide to remove replace the hard drive in your Asus ROG GL551J, which can be completed in fewer than 3 steps.

  1. 4ShcQTOjcxp4RIFX

    • Lay the device on a flat surface with the battery facing up.

    • Be sure to wear ESD or Rubber gloves to protect the computer components.

    could provide a link on where to purchase screens or a link for this specific model, they are hard to find

    Anika Rozeboom -

  2. gWlnqjSBWM3iji3H

    • Push the latch found below the battery to the unlock position.

  3. GVoXFXgE1eJiaRcQ

    • Pull the battery out.

    Image unclear

    Anika Rozeboom -

  4. VVkFFTtHFFTanmk3
    VVkFFTtHFFTanmk3
    bYtvHfAjoKvWnLEJ

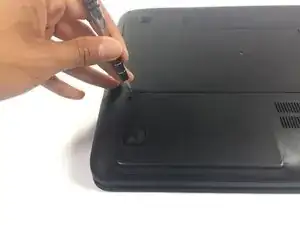

    • With laptop upside-down, locate and unscrew the two screws on the panel with the vents.

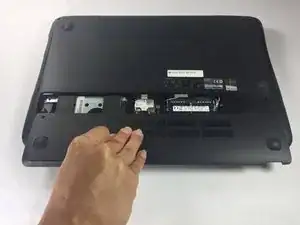

    • Slide the panel out and lift up to remove.

  5. 322rHKcghVijeqDS
    322rHKcghVijeqDS
    Xf1bhgJCFOLRiLmp

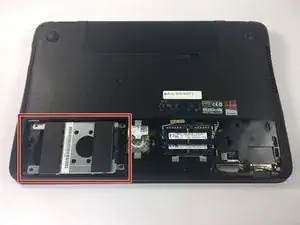

    • The hard drive is the metal rectangle with the two soft padding bars attached to it.

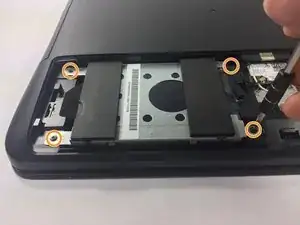

    • Locate and remove the 4 screws holding the hard drive down at each corner using a PH000 Philips head.

  6. gfosUyNmfdOIHrGx
    gfosUyNmfdOIHrGx
    aroOVGCQl3QdTmEJ

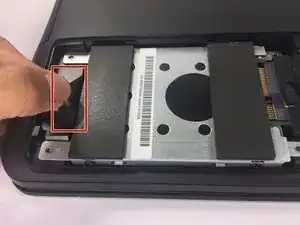

    • Locate the black plastic tab attached to the bottom of the hard drive and pull it straight outwards.

    • Failure to correctly disconnect the hard drive before pulling it up and out can damage the connectors.

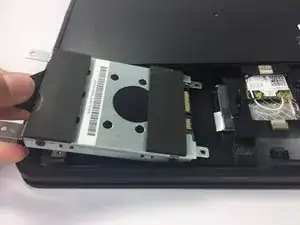

    • Once the hard drive detaches from the connector, lift the hard drive up and out.

    Which type of hard drive is this one? Do you have the model number?

    M. Y. Najjar -

Abschluss

To reassemble your device, follow these instructions in reverse order.
