Asus ROG GL551J RAM Replacement

Geschrieben von: Jason Nguyen
  • Kommentare: 2
Asus ROG GL551J RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

1 Minute

Einleitung

Use this guide to replace the RAM on your Asus ROG GL551J. Make sure that any new RAM has a DDR3 connection type to correctly fit into this device.

  1. 4ShcQTOjcxp4RIFX

    • Lay the device on a flat surface with the battery facing up.

    • Be sure to wear ESD or Rubber gloves to protect the computer components.

    could provide a link on where to purchase screens or a link for this specific model, they are hard to find

    Anika Rozeboom -

  2. gWlnqjSBWM3iji3H

    • Push the latch found below the battery to the unlock position.

  3. GVoXFXgE1eJiaRcQ

    • Pull the battery out.

    Image unclear

    Anika Rozeboom -

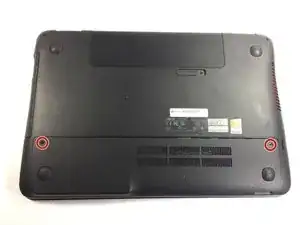

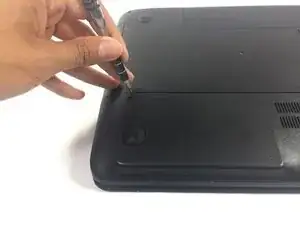

  4. hUbylg3kNL3RlfjK
    hUbylg3kNL3RlfjK
    YIAhl2ncZxBLYuZp

    • Remove the two screws securing the access panel to the laptop.

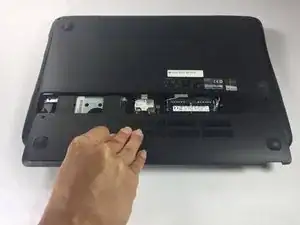

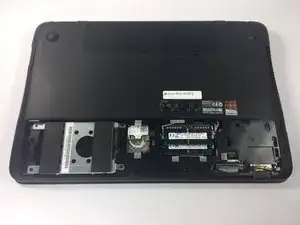

  5. hGByl4Ytc1UEJFTf
    hGByl4Ytc1UEJFTf
    BpCjdNtX1NRGVJTw

    • Slide access panel out and remove.

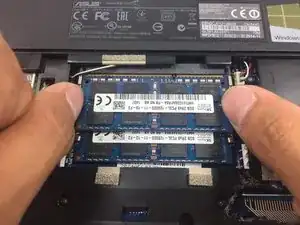

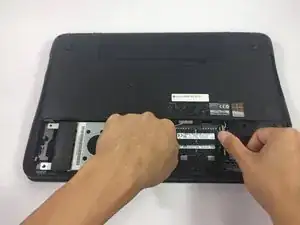

  6. S2sBuSLsnhjICYih
    S2sBuSLsnhjICYih
    Jej3BFZGFUufLRkY

    • Place thumbs on the locking tabs of both sides of the RAM stick and push outwards to unlock.

  7. OU2CshdsvZIFa2yL

    • RAM should pop up at about 45 degrees. Pull outwards with fingers on the side of the RAM to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
