Asus ROG GL551J Screen Replacement

Geschrieben von: Thien Vu
  • Kommentare: 6
Asus ROG GL551J Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Use this guide for instructions on how to remove the screen from your ASUS ROG GL551J laptop.

The screen is the output surface for a laptop, showing text and/or images to the user. If the laptop screen becomes cracked, it fails to display anything, or the images are distorted or discolored, it may need to be replaced.

Be sure that your laptop is completely powered off and disconnected from external power before beginning this guide. It is also recommended that you wear ESD (electrostatic discharge) gloves or rubber gloves to avoid damaging laptop components.

  1. 4ShcQTOjcxp4RIFX

    • Lay the device on a flat surface with the battery facing up.

    • Be sure to wear ESD or Rubber gloves to protect the computer components.

    could provide a link on where to purchase screens or a link for this specific model, they are hard to find

    Anika Rozeboom -

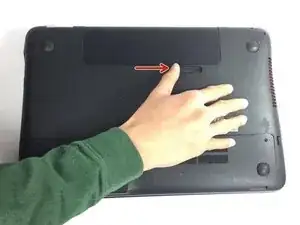

  2. gWlnqjSBWM3iji3H

    • Push the latch found below the battery to the unlock position.

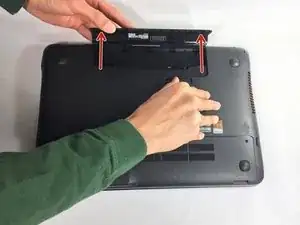

  3. GVoXFXgE1eJiaRcQ

    • Pull the battery out.

    Image unclear

    Anika Rozeboom -

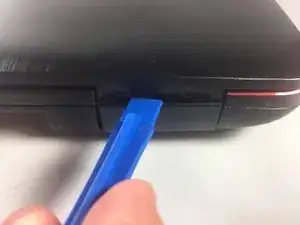

  4. HF6kA13CaWnrcuVb
    HF6kA13CaWnrcuVb
    onNTSxB2ruhnFNVa

    • Use a plastic opening tool to remove the plastic hinge covers on either side of the laptop.

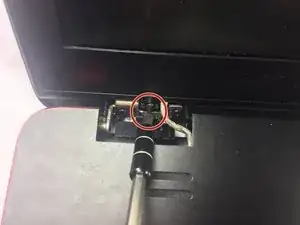

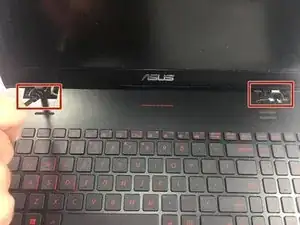

  5. aSuC6FqKKITGSMtn
    aSuC6FqKKITGSMtn
    IJy6NKDhu2TfqlPg

    • Remove the middle screws located on either side of the display.

    could specify the middle screw

    Anika Rozeboom -

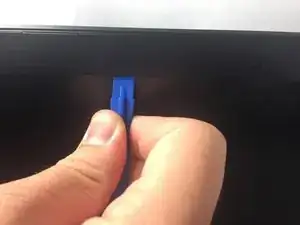

  6. ItRgmXZWlIIWuELH
    ItRgmXZWlIIWuELH
    3cfNxSqRgpMpMtUW

    • Use a plastic opening tool to pop out the bezel from all four sides, then lift it out of the frame.

    • When doing this in reverse during reassembly, try closing the laptop and applying pressure to reattach the bezel snaps.

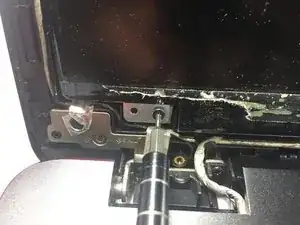

  7. RgPWHLdhWEe3CLBo

    • Remove the screws at each corner of the display.

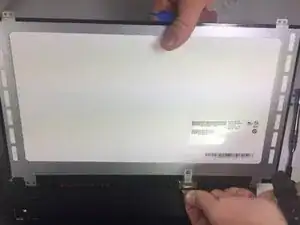

  8. oNESLSVFveOxqqLK
    oNESLSVFveOxqqLK
    RRE4XTvnvHRTcYWS

    • Remove the connector from the display by pulling the wire downwards.

    • Be sure to take note of the orientation of the connector when unplugging and plugging in.

    indicate that direction of the wire is important and should be noted

    Anika Rozeboom -

    instead of saying to do this in reverse order, we should recommend that when you have your new screen to reconnect the battery, connect the cable to the screen and make sure it works. ALSO rubber gloves could be very helpful with this type of procedure

    Anika Rozeboom -

Abschluss

To reassemble your device, follow these instructions in reverse order.
