Einleitung

  1. GqjeMZBrpnf4ZIr6
    GqjeMZBrpnf4ZIr6
    JaFUKtdxnlAWDSfB
    • Remove 10 screws.

    • Note: front screws (blue) are 10mm long, central and rear (brown) are 12mm.

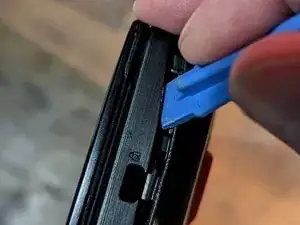

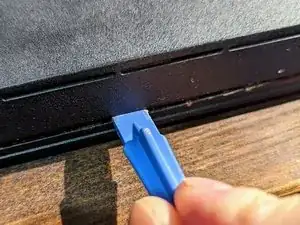

  2. TwjTP6cASpVDTyQn
    TwjTP6cASpVDTyQn
    cqJiJ5fsRAunNTbb
    • With opening tool or pick go around the case starting from back corner.

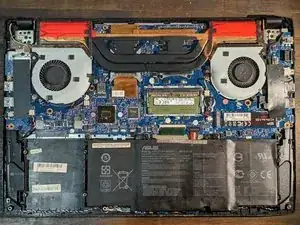

  3. 4JVtKKn1oUVrRyyw
    • Lift cover and now you have access to most of the components.

  4. 3UTTA6m4xhT3Uwpp
    • Disconnect battery connect by pulling it up.

  5. oTjL3hWqqflSNwNR
    • Remove 4 screws

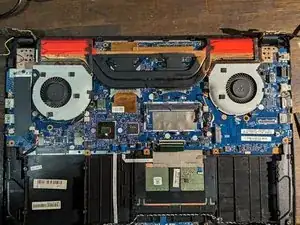

  6. nDrTejlLL1JfGnJR
    • Lift battery up and out.

  7. twttfLlbnLoQWthk
    • Pull spring locks out.

    • Lift module up and out of the connector.

  8. n21KaryQMy6fyuMk
    • remove screw.

    • pull up and right from the connector.

  9. MTBpQHTJpxgStjQR
    • Antenna (orange)

    • Speakers (yellow)

    • Power and miscellaneous LED (blue)

    • Keyboard (green)

    • Display (pink)

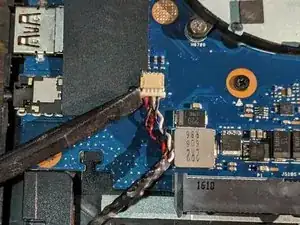

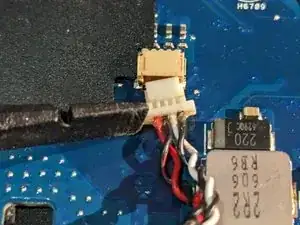

  10. wrRZPhOWk2dSqTM1
    wrRZPhOWk2dSqTM1
    4hgjd2gYBJ5u6SbN
    • Remove speaker connector by pulling it out.

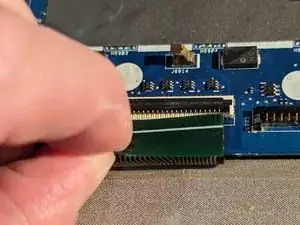

  11. AhDLbVTER36dflyX
    AhDLbVTER36dflyX
    oRcwpnouAWqGX6Mw
    1ficbBsjd6DbKBPo
    • Lift locking mechanism up

    • Pull ribbon cable from connector

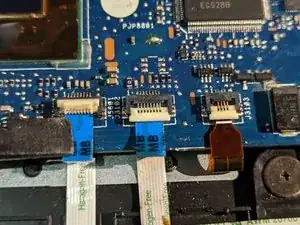

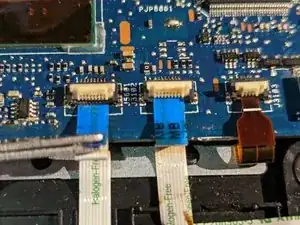

  12. YqOSsdMQs2BeLTiG
    YqOSsdMQs2BeLTiG
    dfDAMA6IARjjBtDD
    • Lift locking tab on each connector (3x)

    • Pull each ribbon cable out

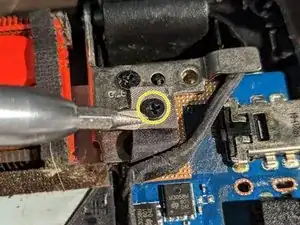

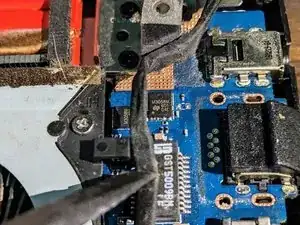

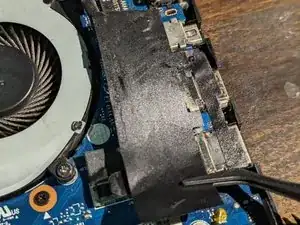

  13. PlIjrAV5nw3UHExU
    PlIjrAV5nw3UHExU
    riuSjmJH13CPYdyK
    OTiRK2kPgEQtIjpq
    • Remove screw holding display cable

    • Remove plastic shield over display cable

    • Pull cable out of the clip

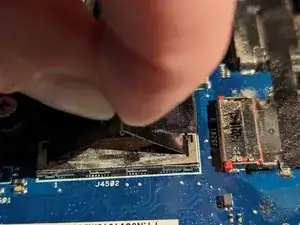

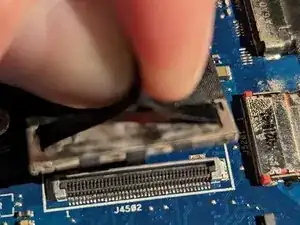

  14. Xjn3hFn1MtgmaYpK
    Xjn3hFn1MtgmaYpK
    OSXaOib56SxWgUoo
    • Pull display connector straight up by the pull strap

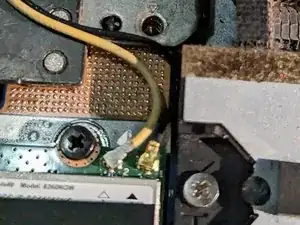

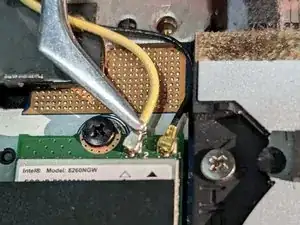

  15. o4k3FwaP3nT6W2UW
    o4k3FwaP3nT6W2UW
    Yjuy6NVWQokfDcW6
    adcMK5sBtx5fo1Oj
    • Carefully holding by metal part pull connector up.

    • Repeat for second connector.

  16. LOroDjhQkIATgT1P
    LOroDjhQkIATgT1P
    MdLWcTuSuUAlXnt1
    • Move connector out of the guide.

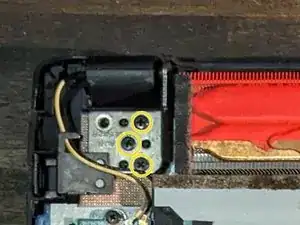

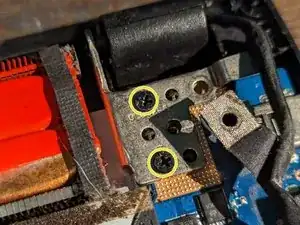

  17. HX1fyIN1qJ6MRVDb
    HX1fyIN1qJ6MRVDb
    e3MALFi5TtJ6AVRK
    • Remove remaining hinges screws (5)

    • Note: one screw was holding display cable.

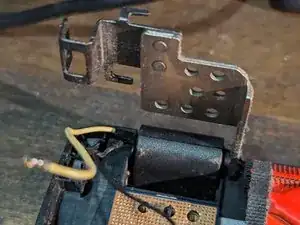

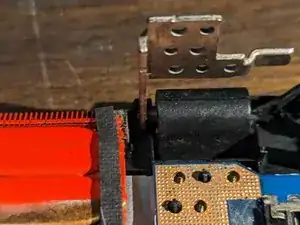

  18. sPPMkfDHS2yK6KQd
    sPPMkfDHS2yK6KQd
    JSQuKkJehU6oBHIP
    • Lift left hinge up.

    • Lift right hinge up.

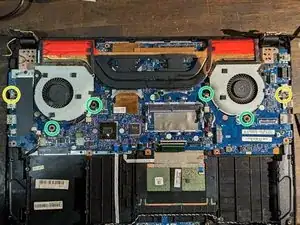

  19. u3CERMeQWXhiFVBJ
    • Remove two side motherboard screws (yellow marks)

    • Remove 4 center screws (green marks)

    • Note: side screws silver and slighter longer.

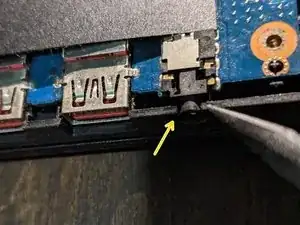

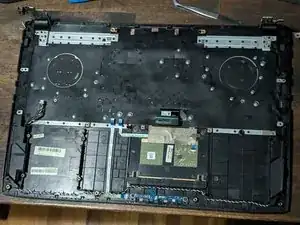

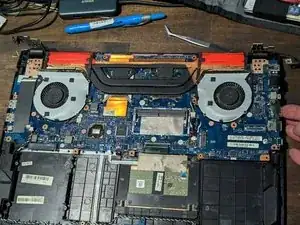

  20. WNyLsLiydJiCEcgi
    WNyLsLiydJiCEcgi
    I1h1iB6WhjKVMKYO
    3TAOEwVODJKaK5Zs
    • NOTE: Headset connector is holding in the case.

    • Lift motherboard from HDMI connector side and pull towards it.

  21. UbjLBQvAontf5QHJ
    • Remove radio module screw (red) and pull it out of connector.

    • Disconnect fans connectors and remove 6x screws. Pull fans out.

    • Remove 8 screws from heat sink and remove it.

    • Note: heat sink use thermal paste on CPU and GPU - you will need to clean and use new before putting it together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
