Asus ROG Strix GL702VM-BHI7N09 Hard Drive Replacement

Geschrieben von: Zach Langer
  • Kommentare: 1
Asus ROG Strix GL702VM-BHI7N09 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

6 Minuten

Einleitung

This guide explains how to remove the hard drive of the Asus ROG Strix GL702VM-BHI7N09 for replacement.

  1. 3DSrW6xOSBsyhKUp
    3DSrW6xOSBsyhKUp
    HMePUTBaGYRYtKup

    • Flip the laptop over to the back panel, with the serial numbers facing up.

    • Using a Phillips #1 screwdriver, remove the ten 12 mm screws from the back panel.

  2. MOnGZEst66UtJHEX
    MOnGZEst66UtJHEX
    YuxOeUiyEjBDZPRR
    qOXCQUsNPjIHXnex

    • The snap seals don't need a lot of pressure to open, and may break if forced. Be gentle with the opening tool.

    • Wedge the sharp edge of the plastic opening tool into the seam between the back panel and the rest of the laptop, then gently pry the panel up.

    • There will be a snapping sound as you remove the back panel, but that is just the seal loosening.

    • Continue breaking the seals by sliding the plastic opening tool around the entire laptop under the seam until the back panel is free.

    • Once you have broken all the seals, carefully lift the panel off.

    To make sure you don’t damage your board it’s necessary to unplug the main battery

    Lazaro Guajardo -

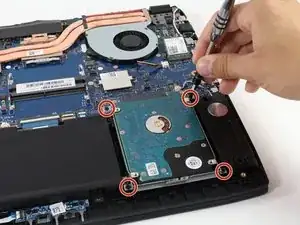

  3. y3xLOW5OZGV6vlpK

    • Using a Phillips #1 screwdriver, remove the four 4 mm screws holding the hard drive.

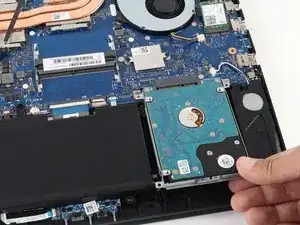

  4. cXTpYqiQVBr6cMdv

    • Pull the hard drive directly away from the fan just above it.

    • The connecting pins should slide out easily, but you might have to move the hard drive around a bit to loosen the pins.

Abschluss

To reassemble your device, follow these instructions in reverse order.
