This is a step by step process for the replacement or repair of the LCD screen on your Asus ROG Strix GL702VS laptop. If you are experiencing dead pixels or a cracked screen, follow these steps to remove the screen and replace it.
Before fully reassembling, try powering on the computer to ensure all cable connections are working.
Werkzeuge
-
-

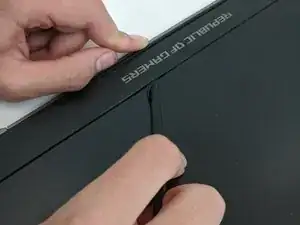

Remove the two screw stickers at the bottom corners of the screen.
-

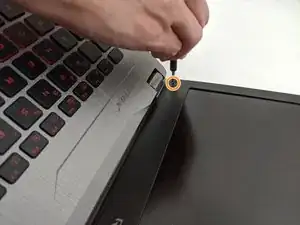

Remove the two 4mm JIS #0 screws beneath the stickers.
-
-
-

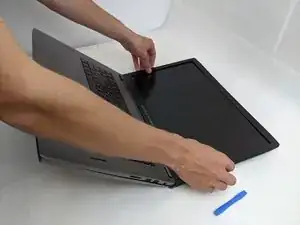

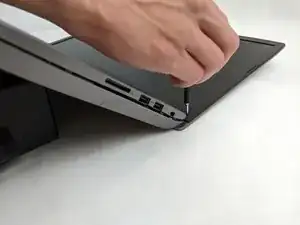

Break the glue between the bezel and screen with a nylon spudger, working around the inside of the bezel.
-

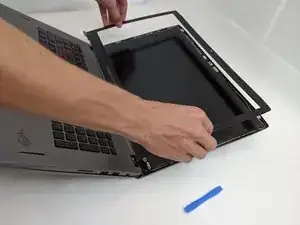

Using an opening tool, lift up the bezel once the glue has been removed.
-
-
-

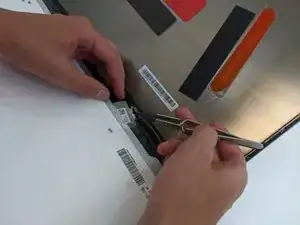

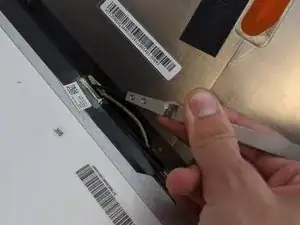

On the backside of the LCD, disconnect the LCD cable using a pair of tweezers.
-

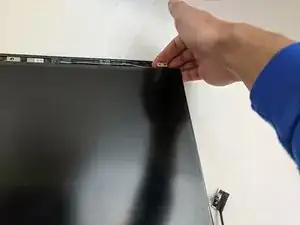

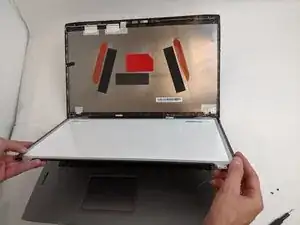

Once fully disconnected, remove the LCD and replace it.
-
To reassemble your device, follow these instructions in reverse order.
