Asus ROG Strix GL702VS Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 Minuten - 1 Stunde

Einleitung

This is a step-by-step walkthrough on how to remove the motherboard from an ASUS Republic of Gamers STRIX GL702VS laptop. If it has been determined that the motherboard is failing, consult this guide for removal and replacement. Common issues include boot failures such as CPU or GPU initialization failure on startup. Reference iFixit troubleshooting guide here to help determine the issue. The part number for a new motherboard will vary based upon your desired CPU, GPU and RAM.

Remember, computer components are fragile. Be careful with clips and wiring when disassembling and reassembling the computer. They can easily break or get pinched. It may also be helpful to take a picture of wiring routing and component placement before disassembly as a reference for reassembly. Note that there are multiple screw lengths in this application. Pay attention to their locations.

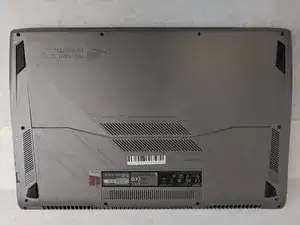

  1. AccQS1aclGbeS4id

    • Flip the computer so the bottom of the laptop is facing up.

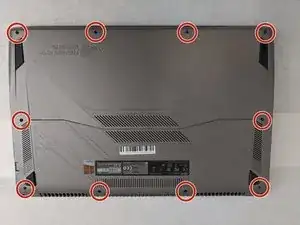

  2. WQjTILCykyXJ6Hua

    • Remove the ten JIS #0 screws around the edge of the laptop.

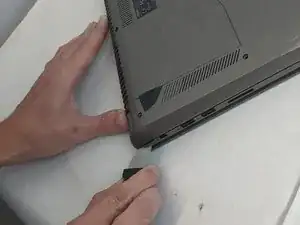

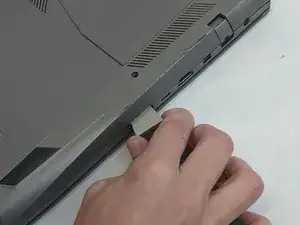

  3. eBhKoFA3WiPMAFPs
    eBhKoFA3WiPMAFPs
    L3CsUENLWIjwuUx4

    • Use a Jimmy to carefully free each side of the bottom casing.

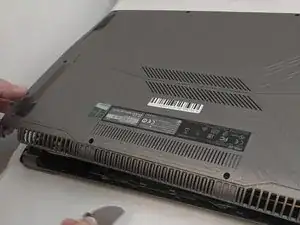

  4. I2PxTdJniowWlQAr

    • Lift up the back casing from the computer.

    • You may hear clicking or snapping sounds. This is just the plastic clips coming loose.

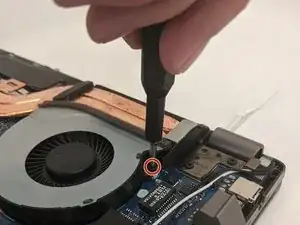

  5. 6tRgMj3nLYCBISSZ
    6tRgMj3nLYCBISSZ
    3hDNOyhnoRfNbUks
    tTRMqHEqXcKQtPjs

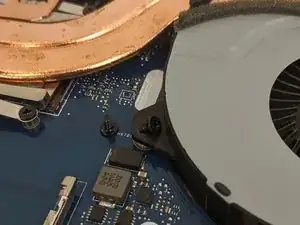

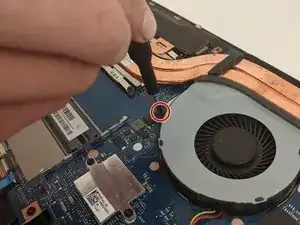

    • Remove the four 4.8mm JIS #0 screws (two on each fan).

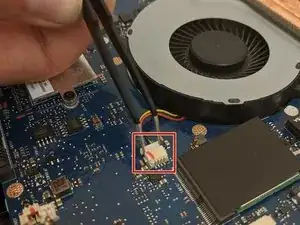

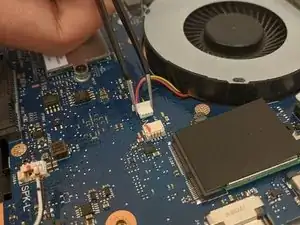

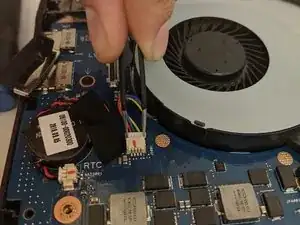

  6. Iqyukh16Ec6KygGl
    Iqyukh16Ec6KygGl
    SQECvMNWHNXiWEui
    xgVMqLPBrAcT14bF

    • Remove the fan's connector on the motherboard using a pair of tweezers.

    • Be gentle, as the small clips and wires can be easily damaged.

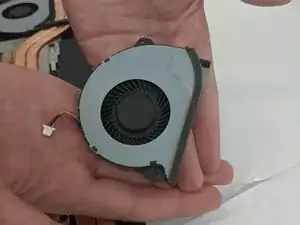

  7. 44wsBt6jPPArHVT3
    44wsBt6jPPArHVT3
    tNnmmPPAk2NsB3XT

    • Gently lift each fan up and out of position.

  8. 6SxEtgs2ltsKEWlY

    • Disconnect the screen connector by lightly pulling the clip out.

    • The wires are delicate; disconnecting shouldn't take much force.

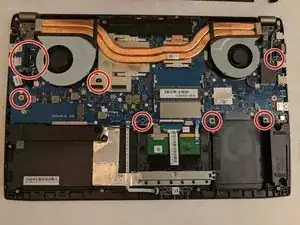

  9. I6iJnp6gdH6VFrxm

    • Remove the seven 4mm JIS #0 screws from the motherboard.

    • One may be hidden, requiring disconnecting the screen connector.

  10. h1qNOX1UQETGlHhp
    h1qNOX1UQETGlHhp
    LiLP34EiwGOONauZ

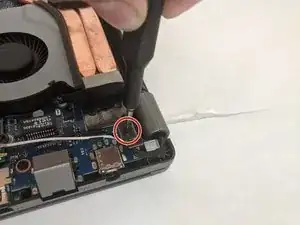

    • Unscrew the two 6.5mm JIS #0 screws located at the top corners of the motherboard.

  11. KDvd6XGBXloCLeUn

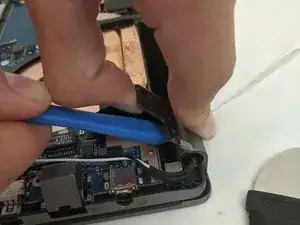

    • Using the opening tool, lift up the flaps that secure the screen to the base.

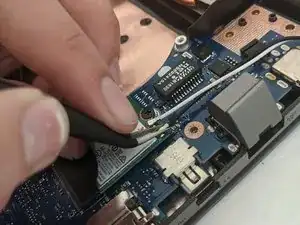

  12. ykOgZxbKWQEXSVvP

    • Disconnect the Wi-Fi antenna by unplugging the black and white wires located behind the ethernet port.

    • For reassembly, note the corresponding triangles for each wire.

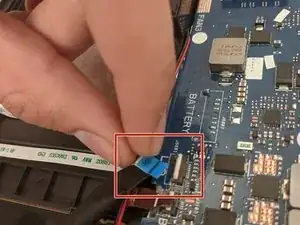

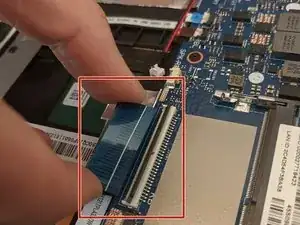

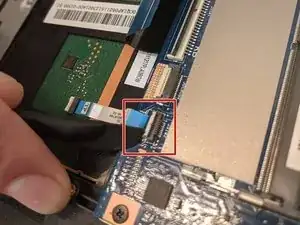

  13. 6SJuffWBpKgbCXSG
    6SJuffWBpKgbCXSG
    F1ITUyfoZiOgjEQE
    fyCyMtywplehDXS6

    • Use a spudger tool to lift the connector tabs on the motherboard and slide the four ribbons out.

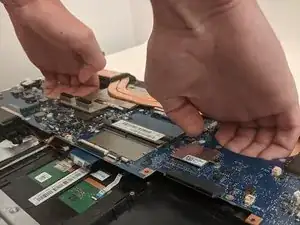

  14. cjJgjlXsUlYMkmfY
    cjJgjlXsUlYMkmfY
    vpAUDASL2qDZHpJW

    • Grasp the motherboard where the fans are located and lift up.

    • Do not force it. If you feel resistance, restart this guide to ensure you have removed all screws and connectors.

Abschluss

To reassemble the device, follow these instructions in reverse order.
