Asus ROG Strix GL702VS Speaker Replacement

Geschrieben von: Conor H Allen
  • Kommentare: 0
Asus ROG Strix GL702VS Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

3 - 8 Minuten

Einleitung

This step by step guide will walk you through removing your Asus ROG Strix GL702VS gaming laptop speakers for replacement or maintenance. If you are experiencing speaker outages or buzzing speakers, follow this guide for speaker replacement or repair.

  1. AccQS1aclGbeS4id

    • Flip the computer so the bottom of the laptop is facing up.

  2. WQjTILCykyXJ6Hua

    • Remove the ten JIS #0 screws around the edge of the laptop.

  3. eBhKoFA3WiPMAFPs
    eBhKoFA3WiPMAFPs
    L3CsUENLWIjwuUx4

    • Use a Jimmy to carefully free each side of the bottom casing.

  4. I2PxTdJniowWlQAr

    • Lift up the back casing from the computer.

    • You may hear clicking or snapping sounds. This is just the plastic clips coming loose.

  5. DKwl1tdYJ13aB5UD
    DKwl1tdYJ13aB5UD
    TwiVJfRWvAoKsGeP
    qfHjKgWbqkB3AmDG

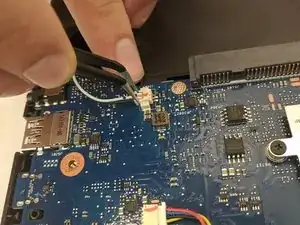

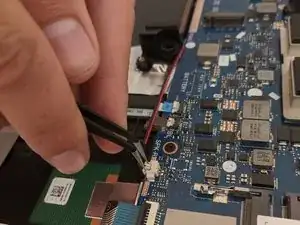

    • Disconnect the two sets of speaker connectors using a pair of tweezers.

  6. GAxIHUwlLskUNAei
    GAxIHUwlLskUNAei
    WiqnFpPuElCqspLC
    QpAVJGnTccuNsxxU

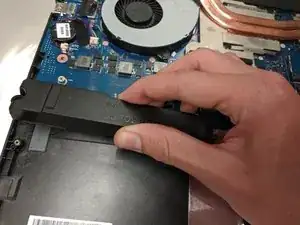

    • Gently remove the speakers by lifting up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
