Asus ROG Strix GL702VS Trackpad Replacement

Geschrieben von: Conor H Allen
  • Kommentare: 1
Asus ROG Strix GL702VS Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 35 Minuten

Einleitung

This guide will walk you through the process of replacing your Asus ROG Strix GL702VS trackpad (touchpad) in the event of damage or malfunction. This process is necessary when the trackpad is unable to be used and is unresponsive and updating the drivers fails to solve cursor tracking issues.

  1. AccQS1aclGbeS4id

    • Flip the computer so the bottom of the laptop is facing up.

  2. WQjTILCykyXJ6Hua

    • Remove the ten JIS #0 screws around the edge of the laptop.

  3. eBhKoFA3WiPMAFPs
    eBhKoFA3WiPMAFPs
    L3CsUENLWIjwuUx4

    • Use a Jimmy to carefully free each side of the bottom casing.

  4. I2PxTdJniowWlQAr

    • Lift up the back casing from the computer.

    • You may hear clicking or snapping sounds. This is just the plastic clips coming loose.

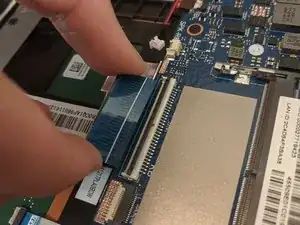

  5. iaDe2oTKRhfYyMZG
    iaDe2oTKRhfYyMZG
    xpUOewLeOIv4tXrf
    rMxcRdVT4AYGFi1J

    • Disconnect the ribbon cables from the connectors at the bottom of the motherboard by lifting up the tabs with a nylon spudger tool.

    • Slide the ribbon cables out of the connectors on the motherboard.

    Maybe here, you would inform people that the motherboard has to be removed. Makes it a much bigger job. Much more dangerous.

    Joe Andrews -

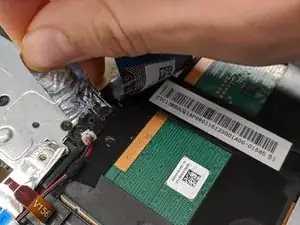

  6. APljr2r1uWLHFKPV
    APljr2r1uWLHFKPV
    vVXePZGTZcUYQDcM

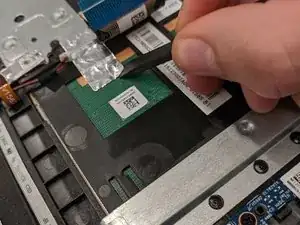

    • Remove the covering foil holding the trackpad into place.

    • Completely peel the foil back to ensure it does not interfere with the following processes.

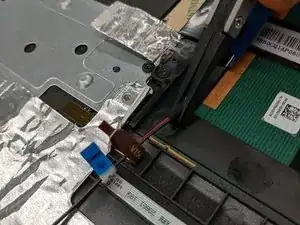

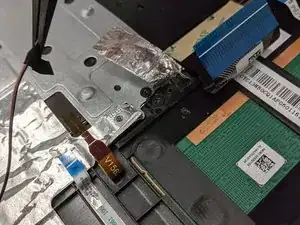

  7. SVkYUrOxF5mEANPq
    SVkYUrOxF5mEANPq
    KaEiITtDIsLijHCO

    • Lift up speaker cable that is laying overtop using a pair of tweezers.

    • Do not to overextend the wire since you may accidently pull the wire out.

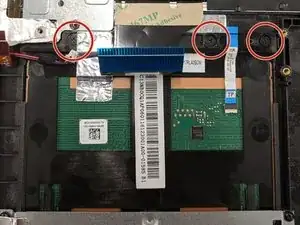

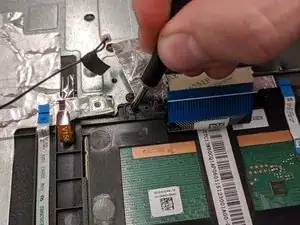

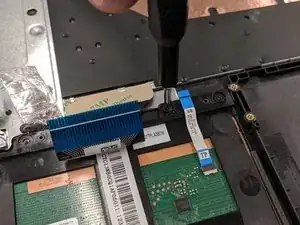

  8. PoNaoesWDOY4SU5w
    PoNaoesWDOY4SU5w
    tgBXo1YliIl2UbSX
    NqIQF3GYoFh1ZB4n

    • Remove the three 4mm JIS #0 screws that are securing the trackpad.

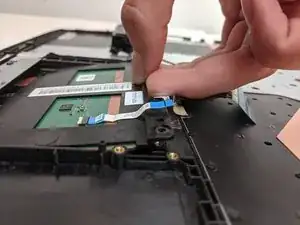

  9. Vja1OyxUSuGtUwcg
    Vja1OyxUSuGtUwcg
    oNJ64dEKKLClXTVL

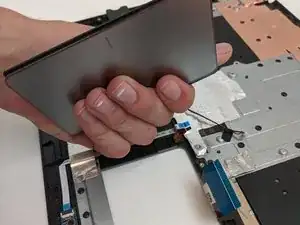

    • Once freed, slide the trackpad backwards towards the center of laptop.

    • This may require some jiggling. Lifting the laptop off your working surface may help.

    • Sliding the trackpad back in can be a bit tricky. Ensure it is fully seated before continuing reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
