Asus ROG Strix GL702VS Webcam Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

This is a step by step process for the replacement or repair of the webcam on your Asus ROG Strix GL702VS laptop. If you are experiencing bad quality or a black screen while using the webcam, follow these steps to remove the webcam and replace it.

  1. hQxX6thDPsGnoMiy
    hQxX6thDPsGnoMiy
    AnSBsCvRnrZhXpXC
    U3PPQtsnvGGugHQq

    • Remove the two screw stickers at the bottom corners of the screen.

    • Remove the two 4mm JIS #0 screws beneath the stickers.

  2. 5fIXFwARRbhig5v5
    5fIXFwARRbhig5v5
    ZZJJfZkb3NHUJYNh
    eYeNIyhsHstndI1w

    • Break the glue between the bezel and screen with a nylon spudger, working around the inside of the bezel.

    • Using an opening tool, lift up the bezel once the glue has been removed.

    • The plastic clips remain so it will have some resistance/snapping noises.

  3. ZPYtOkLy2NJlsMXo
    ZPYtOkLy2NJlsMXo
    oBF63CQuTcoCWDLG

    • Lift the plastic bezel off of the front display panel.

    • The plastic bezel will click when put back on the screen.

  4. IFxSHeFVIujxA1s4

    • Remove the four interior 4mm JIS #0 screws from each of the four metal LCD tabs.

  5. VENRKSnHUtwUXI1h
    VENRKSnHUtwUXI1h
    1BW22MQskWZSanJK
    OPInuvjFoNcjHFcV

    • Once the LCD display is freed you can lift it up out of the casing.

    • Be careful as the cable remains attached.

  6. lQPrGeRDASssgCFO
    lQPrGeRDASssgCFO
    CgQXQpMsLcDhC1O5

    • On the backside of the LCD, disconnect the LCD cable using a pair of tweezers.

    • Once fully disconnected, remove the LCD and replace it.

  7. lyTFgPIuZYGGPLWc

    • Gently lift the webcam out of its resting position at the top of the LCD assembly.

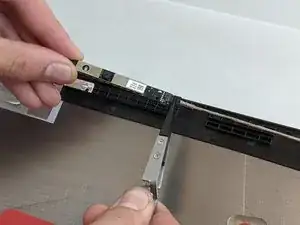

  8. Ojl1bMMfGwNaEeut
    Ojl1bMMfGwNaEeut
    yAtWEoesvC5qHdCV

    • Using the nylon tweezers or your hand, disconnect the webcam module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
