Einleitung
The fan is responsible for keeping the computer’s internal components from over heating and being destroyed. If your computer tends to overheat, use this guide to remove it and check if it needs to be cleaned or replaced.
Werkzeuge
-
-
Remove the four 9 mm screws from the hard drive and use the black pull tab to remove it.
-

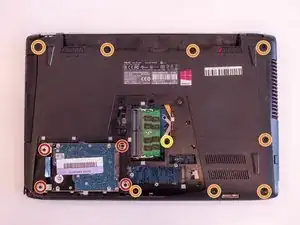

Remove the five 1.6 mm screws and three 9 mm screws from perimeter of the laptop's base.
-
Remove the 9 mm screw next to the RAM.
-
Flip the computer right-side up .
-
-
-
Gently pry the keyboard off being careful not to tug at any of the inner ribbons.
-

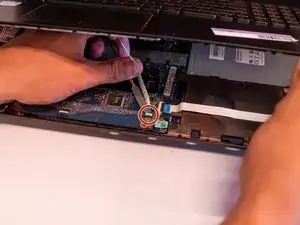

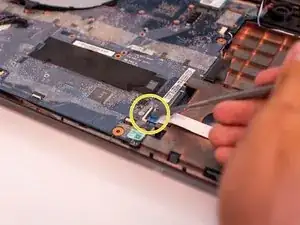

Detach the three ribbons connecting the motherboard and the keyboard. Do this by flipping up the white latch and pulling the ribbon out. There should be one latch per ribbon.
-
-
-

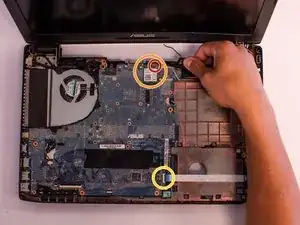

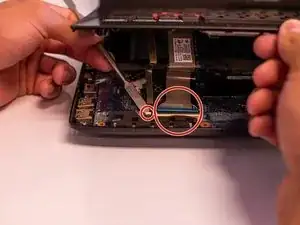

Detach the black and white plugs from the motherboard.
-

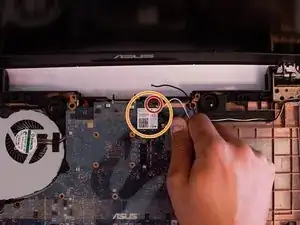

Remove the wireless AC chip from the motherboard using the tweezers.
-

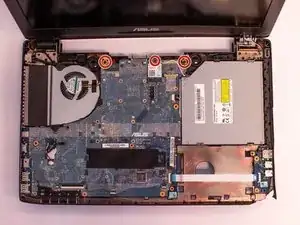

Detach the last ribbon from the motherboard.
-
-
-

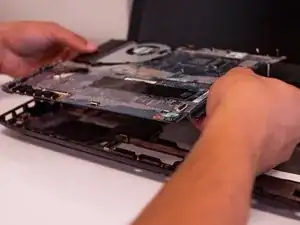

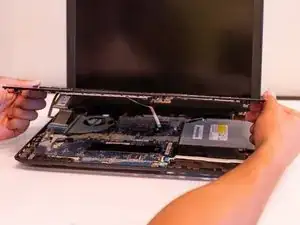

Take hold of the right side of the mother board and lift upwards.
-
At the same time, hold the fan in place as the motherboard is lifted upward.
-
-
-

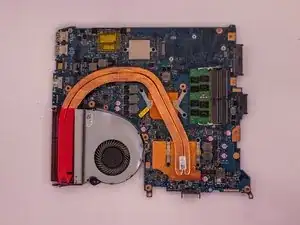

Carefully flip the motherboard over and place it down flat.
-

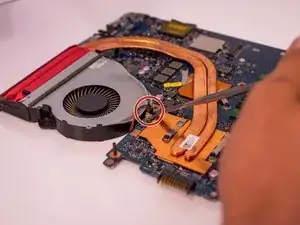

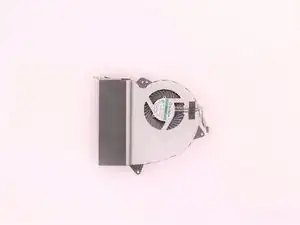

Detach the plug from the motherboard and remove the fan.
-
To reassemble your device, follow these instructions in reverse order.
