The motherboard is connected to everything within the computer, so if it sustains damage, likely the machine will not function smoothly.
If you motherboard has been broken or exposed to water, this guide will show you how to remove it.
Werkzeuge
-
-

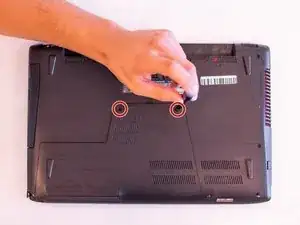

Remove the four 9 mm screws from the hard drive and use the black pull tab to remove it.
-

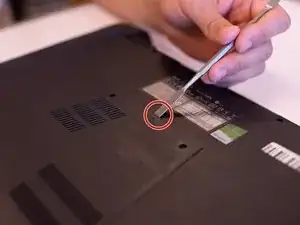

Remove the five 1.6 mm screws and three 9 mm screws from perimeter of the laptop's base.
-
Remove the 9 mm screw next to the RAM.
-
Flip the computer right-side up .
-
-
-

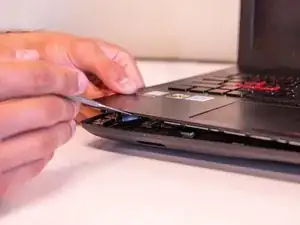

Gently pry the keyboard off being careful not to tug at any of the inner ribbons.
-

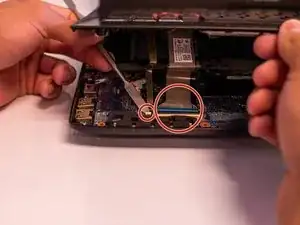

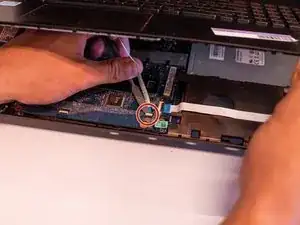

Detach the three ribbons connecting the motherboard and the keyboard. Do this by flipping up the white latch and pulling the ribbon out. There should be one latch per ribbon.
-
-
-

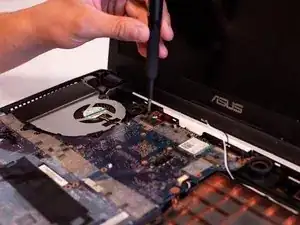

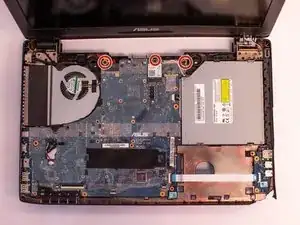

Unscrew the two 9 mm screws and the single 3 mm screw from the motherboard using the Phillips #1 screwdriver.
-
-
-

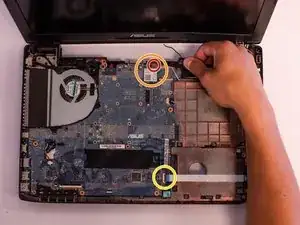

Detach the black and white plugs from the motherboard.
-

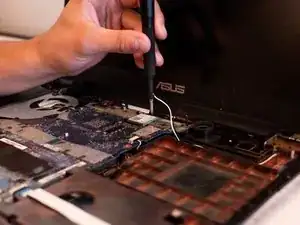

Remove the wireless AC chip from the motherboard using the tweezers.
-

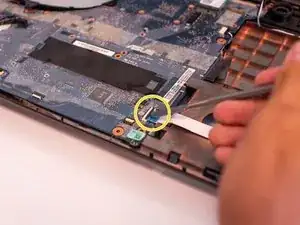

Detach the last ribbon from the motherboard.
-
-
-

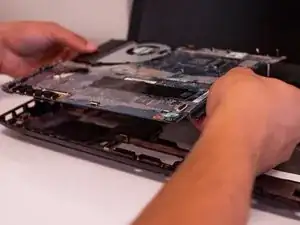

Take hold of the right side of the mother board and lift upwards.
-
At the same time, hold the fan in place as the motherboard is lifted upward.
-
-
-

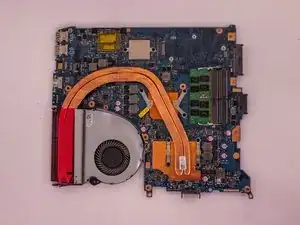

Carefully flip the motherboard over and place it down flat.
-

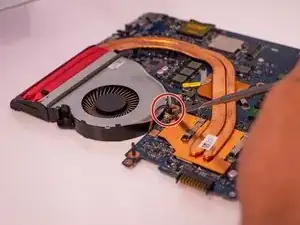

Detach the plug from the motherboard and remove the fan.
-
To reassemble your device, follow these instructions in reverse order.
