Asus ROG Zephyrus G14 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 25 Minuten

Einleitung

The Zephyrus G14 has two RAM slots. The first slot of Ram is soldered to the board. The second slot of Ram is accessible by taking off the backplate of the laptop. It is necessary to have these two slots of Ram filled can take advantage of Dual-Channel Memory. Dual-Channel Memory allows the Ram to function at its full potential in gaming and productivity applications. To take advantage of Dual-Channel Memory, ensure that the replacement stick is the same size and speed as the soldered stick.

  1. DI1dDioTbh1pIHVA

    • Make sure to power off your laptop and unplug all accessories when disassembling to avoid damage.

    • Place the laptop so the backplate faces up.

  2. 64aHfCnVHPIXVs22
    64aHfCnVHPIXVs22
    UqgVjioaQTPmOrfn
    BZKtlDKPiMVAdLIo

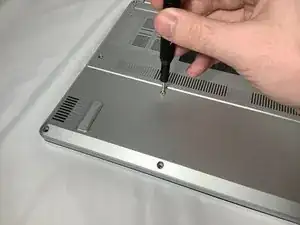

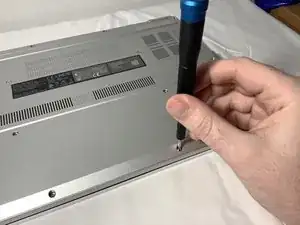

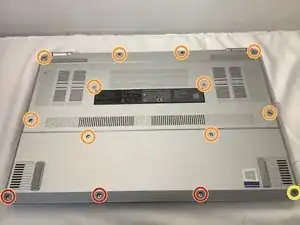

    • Remove the screws on the back. Unscrew them with a Phillips #0 screwdriver.

    • Remove the three (2x4.5mm) screws from the front of the laptop.

    • Remove the ten (2x9mm) screws from the middle and back of the laptop.

    • Unscrew the (2x6mm) captive screw in the bottom right without removing it.

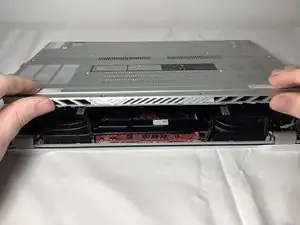

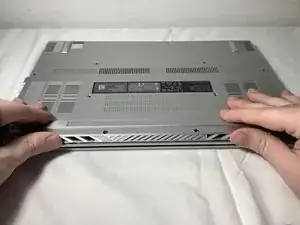

  3. b5pn6ADWIy1jgyrs
    b5pn6ADWIy1jgyrs
    QptdhAj6O1cXGjeX
    embiekPvkYoqSBP1

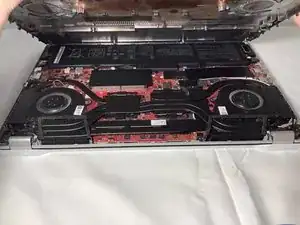

    • Turn the computer around and pull up on the backplate to remove it.

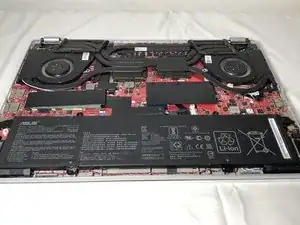

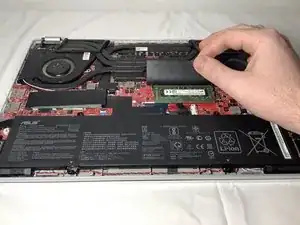

  4. AqbFF5BCLQLSqbFj
    AqbFF5BCLQLSqbFj
    jQJRW5OTNQiIQyKk
    cPdY6pXSklBNnmCC

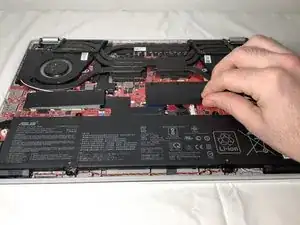

    • Rotate the laptop around so the battery is facing towards you.

    • Pull back on the black plastic that covers the RAM slot.

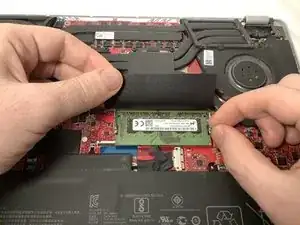

  5. UxJH1IOfR4hKvmYA
    UxJH1IOfR4hKvmYA
    ol5EjxKLDdixqseW
    QSOlktuB6RN51Xvv

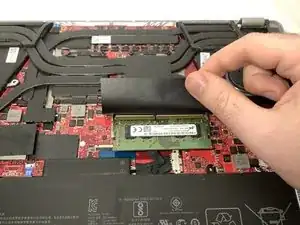

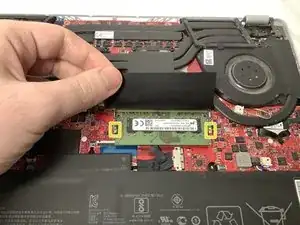

    • If there is a RAM stick currently in the laptop, pull the tabs on the left and right to allow the RAM to pop up.

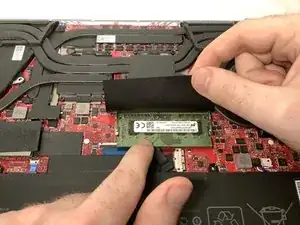

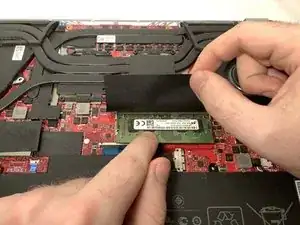

  6. iSSdk3nnEbqg6t6U
    iSSdk3nnEbqg6t6U
    ogEnIrUNdU1TxgpD
    CLWwsY5gnkZBDPsi

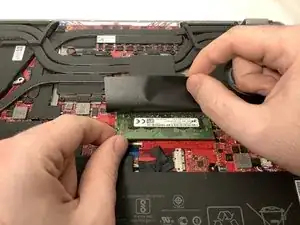

    • Align and insert the RAM into the slot and push it down.

    • Once the RAM clicks into place, check to make sure that the RAM is locked in place.

    I have a 2021 GA401 G14 from Best Buy. My screws are a #1 Phillips, not a #0 as author states.

    Bakut3n -

Abschluss

To reassemble your device, follow these instructions in reverse order.
