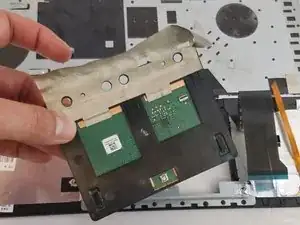

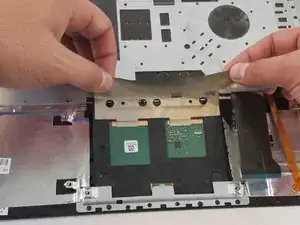

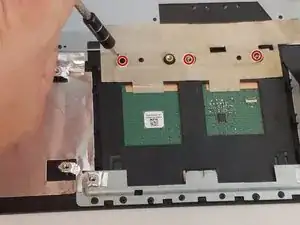

Asus Rog GL55VW-DH71 Touchpad Replacement

Geschrieben von: Addison Thomas

Kommentare: 2

Asus Rog GL55VW-DH71 Touchpad Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

1 Stunde

Einleitung

This guide will teach you how to remove and replace the touchpad in the event that it is unresponsive or damaged. Special care should be taken with the ribbon cables that need to be removed in the process.

Werkzeuge

Schritt 1

Flip the laptop over so the backside is facing upwards.
Using both hands, slide the lock mechanisms outwards and pull up to remove the battery.

Schritt 2

Remove the nine 15.4mm Phillips #00 screws.
Remove the four 8.7mm Phillips #00 screws from the hard drive mounting bracket.
Remove the hard drive bracket.

There is another screw next to the A near the CPU heatsink and RAM that also needs to be taken out.

marcus lee -

Additionally, there is a screw beneath the optical drive that attaches to the keyboard. While the laptop is upside down, slide the optical drive completely out, and remove the shallow screw near the lip of the chassis. This should be done prior to the next step of lifting the keyboard with a pry tool.

Edward McLean -

Schritt 3

Flip laptop over and open the screen.
Wedge some plastic opening tools between the keyboard and case.
Work your way around with the plastic opening tools until the keyboard is separate from the case.
Do not try to lift the keyboard straight off at this time. There are some ribbon cables that attach the motherboard to the keyboard that need to be removed first.

Schritt 4

Remove the ZIF connected ribbon cables for the touchpad and keyboard by gently lifting the latch on the connector point, then slide the ribbon cable out. Repeat for each cable.
Verify all ribbon cables are disconnected and out of the way, and lift the keyboard out of the assembly.
