Asus Rog GL55VW-DH71 USB port Replacement

Geschrieben von: Addison Thomas
  • Kommentare: 3
Asus Rog GL55VW-DH71 USB port Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

This guide will teach you how to remove and replace the USB module in the event that it doesn't work properly. Special care must be taken, due to the delicate parts and ribbon cables needed to be removed during the repair.

  1. jbdSAdmeNUFrEBWY
    jbdSAdmeNUFrEBWY
    g2yuC3wOLwmxifsc
    Q1MCwWsKTu4XNlLc

    • Flip the laptop over so the backside is facing upwards.

    • Using both hands, slide the lock mechanisms outwards and pull up to remove the battery.

  2. voPKjGeTQg4aUxcY
    voPKjGeTQg4aUxcY
    S2YJolR2TcpE1qg4
    GOWicG2qGJ5Y2i4L

    • Remove the nine 15.4mm Phillips #00 screws.

    • Remove the four 8.7mm Phillips #00 screws from the hard drive mounting bracket.

    • Remove the hard drive bracket.

    There is another screw next to the A near the CPU heatsink and RAM that also needs to be taken out.

    marcus lee -

    Additionally, there is a screw beneath the optical drive that attaches to the keyboard. While the laptop is upside down, slide the optical drive completely out, and remove the shallow screw near the lip of the chassis. This should be done prior to the next step of lifting the keyboard with a pry tool.

    Edward McLean -

  3. FrM3wIvhqMmXZ5YZ
    FrM3wIvhqMmXZ5YZ
    5hFewNRWCBM46Rup

    • Flip laptop over and open the screen.

    • Wedge some plastic opening tools between the keyboard and case.

    • Work your way around with the plastic opening tools until the keyboard is separate from the case.

    • Do not try to lift the keyboard straight off at this time. There are some ribbon cables that attach the motherboard to the keyboard that need to be removed first.

  4. OLdPUQqeUhsKrCVt
    OLdPUQqeUhsKrCVt
    meo5U5ZSkTWYHgss
    bhoOlh3HD1gQMeLL

    • Remove the ZIF connected ribbon cables for the touchpad and keyboard by gently lifting the latch on the connector point, then slide the ribbon cable out. Repeat for each cable.

    • Verify all ribbon cables are disconnected and out of the way, and lift the keyboard out of the assembly.

  5. pGCEm3WQSrslx1xT
    pGCEm3WQSrslx1xT
    v6xTqAPL6KebCkMd

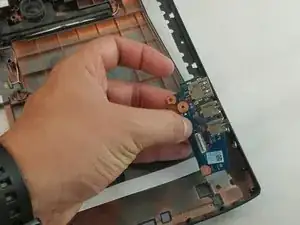

    • The pictures shown are taken with the motherboard removed. This is not required for the replacement of the USB module.

    • Remove the two 2.8mm Phillips #00 screws.

    • Carefully remove the ZIF connector ribbon cable from the module by lifting up on the latch and pulling the cable out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
