Asus S500 USB, Headphone, and SD card Port board replacement

Geschrieben von: Isaac Lemus
  • Kommentare: 2
Asus S500 USB, Headphone, and SD card Port board replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Access and remove the left side USB Ports/Headphone Jack/ SD Card Slot.

  1. PQHUGCKw6pYOMCE3

    • Unscrew the 10 screws on the back cover

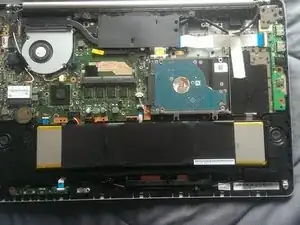

  2. a4PMbWBgV6x1khcv

    • Remove back cover (pry open along the grey/black line, they are held together by clips)

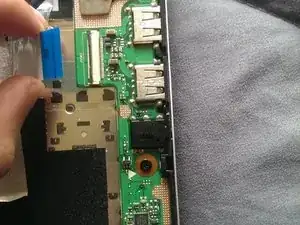

  3. ovUAxbt1F3nULBos

    • Lift up tab and pull out the connector

    • Unscrew the 4 screws

    • Open up the screen (as you would to open up the laptop), and in doing so the metal piece will open up.

    • Jostle the ports and remove the small board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
