Einleitung
The display for the tablet is one of the hardest parts to replace as it is attached by glued and you will need a hair dryer. The broken screen affects the display's functionality and will need replacement.
-
-
Disconnect the dock and make sure the power is turned off.
-

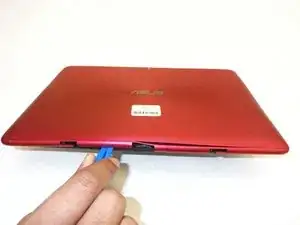

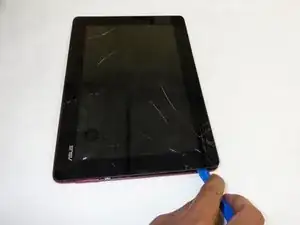

Use plastic opening tool to pry screen up and remove from outer casing.
-
-
-
Pull up on the black circuit board protector.
-

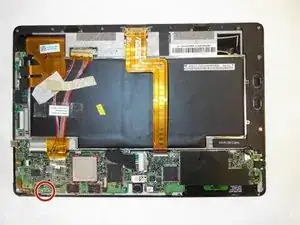

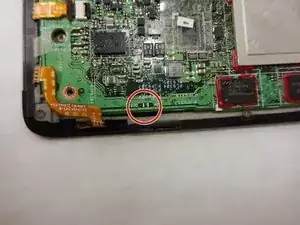

Turn off the hard power switch before working with the tablet. Use a tool to slide the switch to the position marked "off".
-
-
-

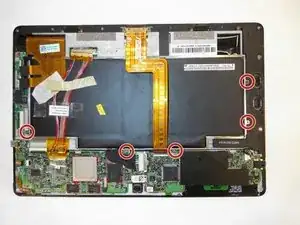

Use a Phillips #00 screwdriver to remove the 3mm screws connecting the battery to the motherboard.
-
Use the same screwdriver to remove two 3mm screws connecting the clips.
-

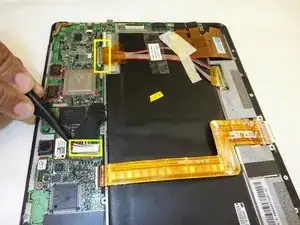

Use tweezers to remove two wires connected from the battery to the motherboard.
-

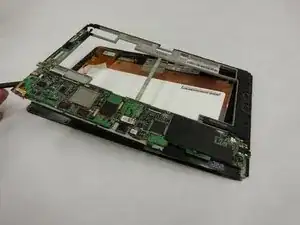

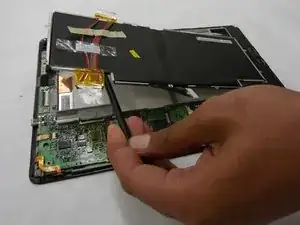

Use the spudger to remove the battery from the case.
-
-
-

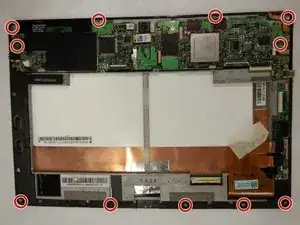

Use a Phillips #00 Screwdriver to remove the 3mm screws that connect the metal board with the screen.
-
-
-
Use a hairdryer on high and heat the edges of the screen. Melt the adhesive holding the screen to the casing of the tablet.
-
Take out the display away from the screen.
-
To reassemble your device, follow these instructions in reverse order.
