Asus TF300T Tablet Speaker Replacement

Geschrieben von: Jonathan Barros
  • Kommentare: 4
Asus TF300T Tablet Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

For anyone experiencing sound problems with their Asus TF300T Tablet, this guide is for you. It will go through removing the back panel and battery source to enable you to remove the faulty speakers and replace them with new ones.

  1. FtSpMdjSPCBWnAYn
    FtSpMdjSPCBWnAYn
    oXO4WGMQTU6xoMLc
    OUFw4mxKDQFbjlCW

    • Begin the process by making sure that the dock is disconnected and the power is turned off.

    • Start by using the plastic opening tool on the side opposite the dock/ charging port. Begin to open the device along the short sides of the tablet.

    • When you have reached the side with the charging/ dock port be gentle with the opening tool due to the thinner plastic that could be broken with excessive force.

    • Once the opening tools have completely made their way around the device use the spudger to separate the back panel from the screen and expose the inside.

    Prying the back off is a lot easier if you use a hair dryer or heat gun to warm up the glue. There was glue holding mine together. Otherwise, like me, you might tear the back panel plastic. Also, there are plastic tabs close along all edges. Beware you might break those as well (like I did).

    Chris -

  2. 4Ri2AHJyGabVbic2

    • The Asus Transformer series tablets have a hard power switch. This should be turned off before working on the tablet.

    • Locate the power switch near the power button on the top left. Use a tool to slide it to the position marked 'off'

    • For many repairs, like replacing the screen or digitizer, you do not need to remove the battery once you hve turned the tablet off. Be very careful not to short anything out with metal tools!

  3. AYiLStNHH416xQnP
    AYiLStNHH416xQnP
    jVGDgxG5Dbgh6YU4
    HhB3edta3pEKU3R3

    • Using the Phillips #00 screwdriver remove all of the screws connecting the battery to the mother board.

    • Once the initial screws have been removed as indicated by the photo, use the spudger to remove the cover concealing the the clips for the dock sensor and a few more screws.

    • Again remove the screws with the same screwdriver and use the spudger to disconnect the spudger sesors from their respective clips.

    • Once the battery is freed use the spudger to remove the battery from its spot

    If you are just going to change screen/digitizer then this step is not necessary.

    Jopose -

    Please - what is a spudger?

    Campogirl -

    It's the black stick-looking tool shown in the photo. (It's an ESD-safe pry tool.) It's also linked at the top of the guide.

    Jeff Suovanen -

  4. oPgjNNpCZsPEORlW
    oPgjNNpCZsPEORlW
    RHsxpmRhglVFdjRY
    N4SdklSLYoatrthO

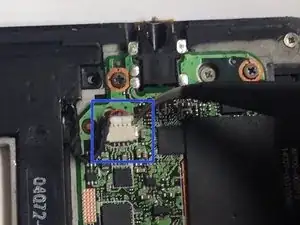

    • After the battery has been removed, remove the black tape next to the speaker using the spudger.

    • When the tape is removed, remove all the 3mm screws holding the speaker unit in place with the Phillips #00 screwdriver.

    • Using the tweezers, remove the speaker unit from its clip as shown in the picture by pulling on the part with the wire coming out of it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
