Asus TUF Gaming FX505DY Heat Sink & Fan Replacement

Geschrieben von: Sebastian Frederick Klincewicz
  • Kommentare: 0
Asus TUF Gaming FX505DY Heat Sink & Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. ljDIRPG5KKBbStYh

    • Turn off the laptop.

    • Disconnect the charging cable.

    • Failure to disconnect the charging cable and power down the computer could result in personal or property damage.

    • Flip the laptop so the back is facing up.

  2. qcLjZaIUkOP1jywX
    qcLjZaIUkOP1jywX
    vRALRo3FqBpqlrmk

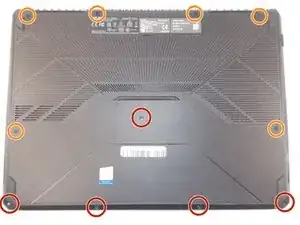

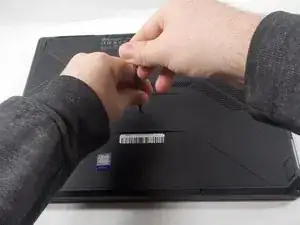

    • Remove the five 6 mm screws securing the back panel using a Phillips #1 screwdriver.

    • Remove the six 13 mm screws securing the back panel using a Phillips #1 screwdriver.

  3. BYAnTX6QqWeENbTR
    BYAnTX6QqWeENbTR
    WgklSZdnPAmRbYol

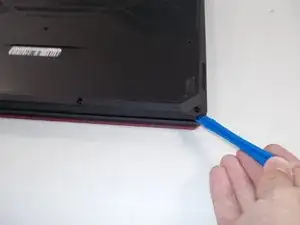

    • Insert the plastic opening tool at a corner and pry up along the edges, leaving the back side with the hinges for last.

    • Do not insert the opening tool too far into the laptop to avoid damaging internal components.

  4. I4VBM5IwCPKsbutq
    I4VBM5IwCPKsbutq
    NFOlQOKWvJ4XYmUo

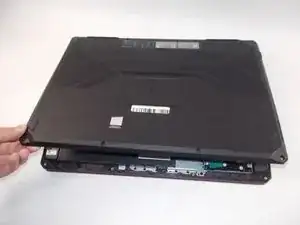

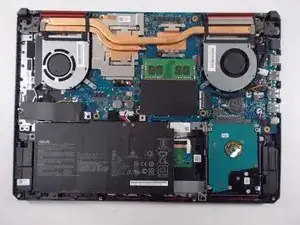

    • Gently lift up the back panel to release any remaining clips on the side with the hinges and remove the panel.

  5. 6VJHi2KTgDqVwLPM
    6VJHi2KTgDqVwLPM
    P5ojYNAE36KwDM26
    OmbbZHV6EAfGmgZc

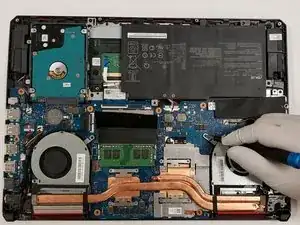

    • With a Phillips 0-bit screwdriver, remove eight 5.0 mm screws on the silver brackets

    • With a Phillips 0-bit screwdriver, remove two 5.0 mm screws holding the edge of the fans in place

  6. 3skIJg2wBRnI34KH
    3skIJg2wBRnI34KH
    cGCFES1dlCM3xiGV
    XLFfQCKCoWE5k2e3

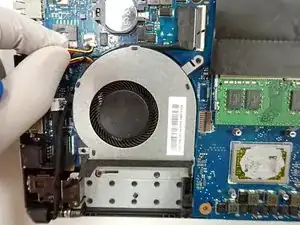

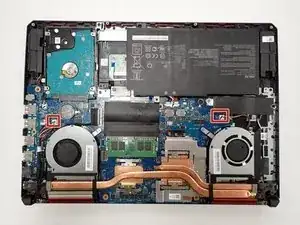

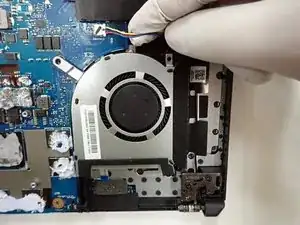

    • Disconnect two power cables connecting fans to the motherboard.

    • Once all cables and screws are removed, carefully lift up and remove the fans and heat sink

Abschluss

To reassemble your device, follow these instructions in reverse order.
