Asus TUF Gaming FX505DY Touchpad Replacement

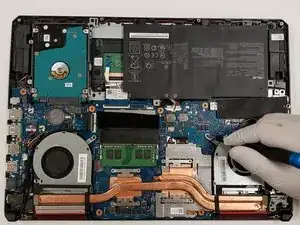

With a Phillips 0-bit screwdriver, remove eight 5.0 mm screws on the silver brackets

With a Phillips 0-bit screwdriver, remove two 5.0 mm screws holding the edge of the fans in place

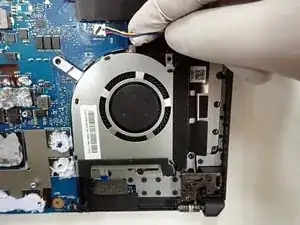

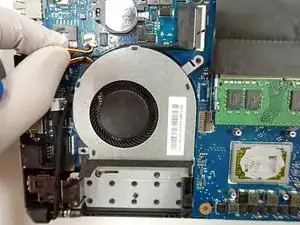

Gently remove all power cables connecting the fans to the motherboard.

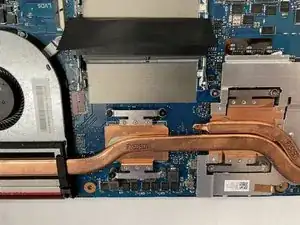

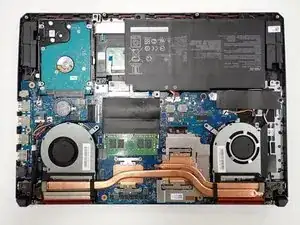

Once all cables and screws are removed, carefully lift up and remove the fans and heat sink

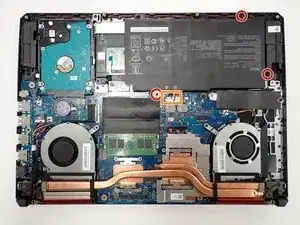

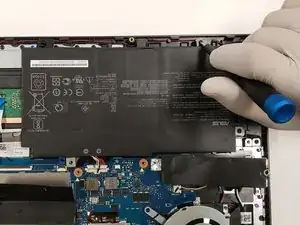

With a Phillips 0-bit screwdriver, unscrew four 5.0 mm screws.

Disconnect the primary connector cable located at the bottom left and carefully remove the module.

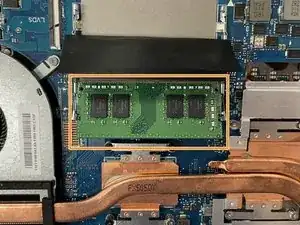

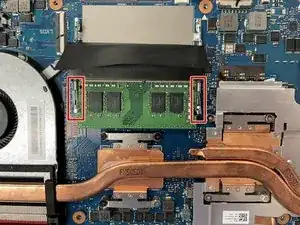

Removing the ram, push down unto the ram and move the metal locking tabs to the side by lifting upward slightly then moving each to their outside.

Pull the ram out toward the angle when the ram is sticking up at an angle when released.

With a Phillips 0-bit screwdriver, unscrew four 5.0 mm top screws holding the hard drive in place.

Pinch the top left corner with your finger and slide the harddrive out of its casing.

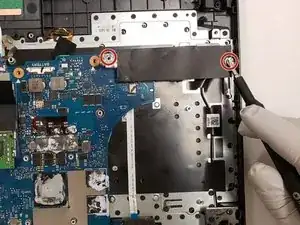

With a Phillips 0-bit screwdriver, unscrew two 5.0 mm screws holding SSD down to the motherboard on the right side of the board

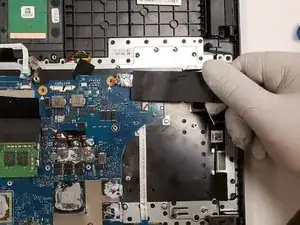

Slide module out of protective casing to remove piece.

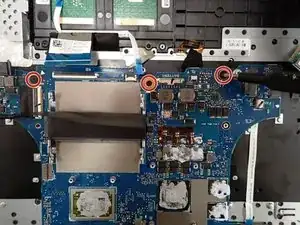

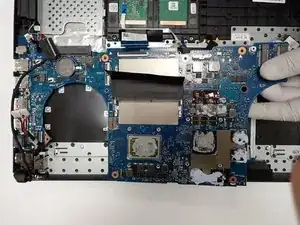

With a size 0 Phillips screwdriver, unscrew three center 5 mm screws securing the board in place.

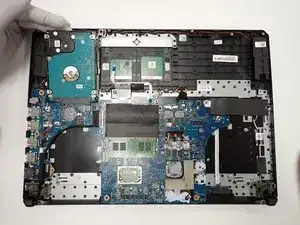

Carefully lift the board and place in a safe area.

With a size 0 Phillips screwdriver, unscrew two 5 mm screws holding the trackpad in place located at the bottom of the trackpad.

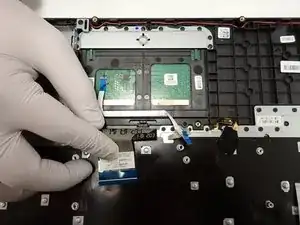

Carefully unclip the connector base to remove the two touchpad cables.

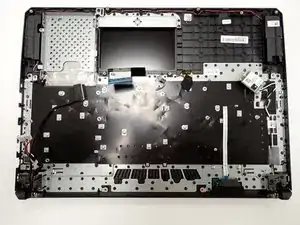

Remove the trackpad by sliding forward and lifting up.
