Asus TUF Gaming FX705G Back Cover Replacement

Geschrieben von: Tyler Lange
  • Kommentare: 2
Asus TUF Gaming FX705G Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

3 Minuten

Einleitung

The back cover of the Asus TUF Gaming FX705G must be removed before any internal repairs and replacements. This is the first step for nearly all laptop replacement guides. Find a good spot in the seam around the bottom half of the laptop in order to avoid breaks or cracks. Before removing the back cover, you may also want to check for any cracks or missing screws.

  1. uWrGGTNGdehEtQQI
    uWrGGTNGdehEtQQI
    xTNNYcHRsjMEKewk

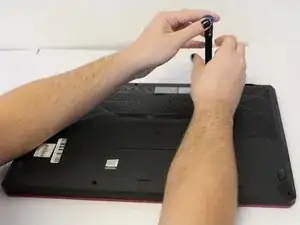

    • Remove the eleven Phillips #0 screws that secure the back cover.

  2. wHpfhsliIHsdaI3u
    wHpfhsliIHsdaI3u
    MiwlmH2NS6FPGQL4

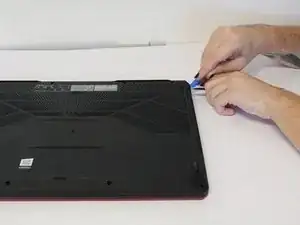

    • Use the iFixit opening tool to lift the back cover's seam, then insert the spudger parallel to the back cover and lift gently upward.

    • You will hear pops as the back cover releases.

    Hey so the screws are two different lengths. This would be more helpful if you could point out which screws go in which sockets!

    paul -

Abschluss

To reassemble your device, follow these instructions in reverse order.
