Asus Transformer Book T100TAF Camera Replacement

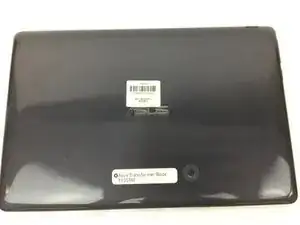

Detach the keyboard from the screen by depressing the silver button on the tablet’s hinge and pulling upwards on the tablet.

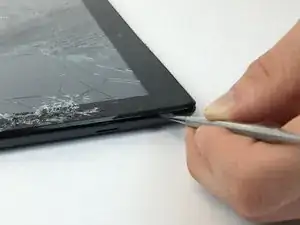

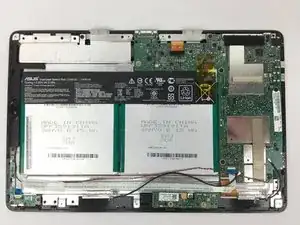

Insert the spudger behind the plastic backing of the tablet and then slide the spudger around the outside of the tablet, carefully releasing all internal clips.

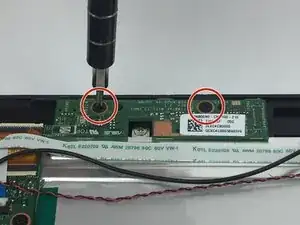

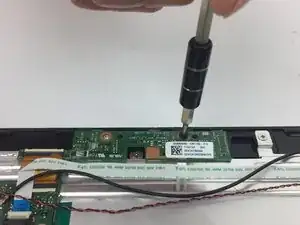

Remove the two 4.0 mm black screws from the camera board.

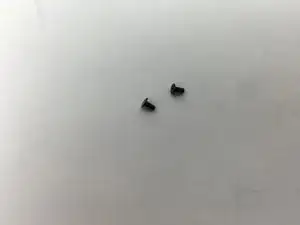

Set aside the two black phillips head 4.0 mm screws.

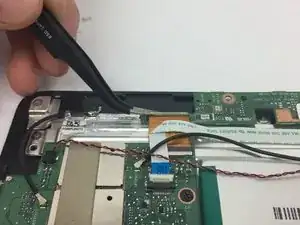

Using tweezers, disconnect the orange ribbon cable from the camera board by lightly pulling it up and towards the motherboard.

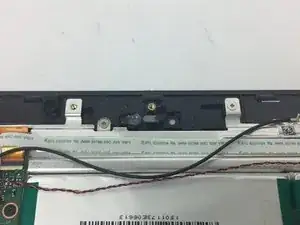

Lift the camera board away from the device.
