Einleitung

  1. neHY2mmYnf6cL2Nf
    neHY2mmYnf6cL2Nf
    bJGf2Gn3PfKUPNcW

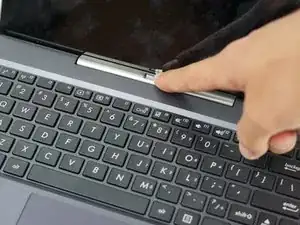

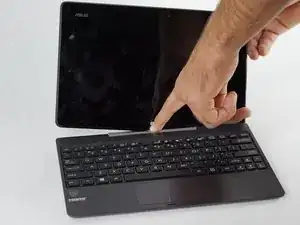

    • Detach and separate the screen from the keyboard by pressing the silver release button at the base of the tablet.

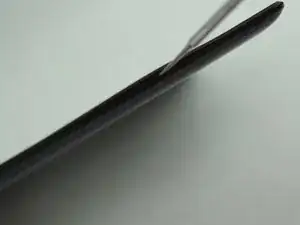

  2. a15hHVkpDCCXZmVq
    • Take the metal spudger and insert it into the seam of the rear cover casing and gently pry upwards.

    • If done correctly, you should feel the clips release.

    • Ensure that all the clips are released by sliding the metal opening tool along the four edges of the tablet.

    • Do not force the clips to release. This will cause them to break, and if broken, the screen will become loose. Open the rear cover gently and with caution.

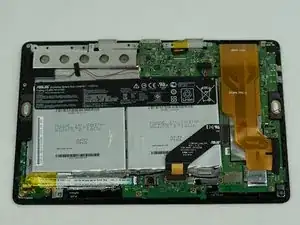

  3. FlqZEHrY3SS2JNqm
    • Take off the rear case.

  4. Q6ZUYfGwMkKEQHWm
    Q6ZUYfGwMkKEQHWm
    Nt3JtLEaGmtdorNH

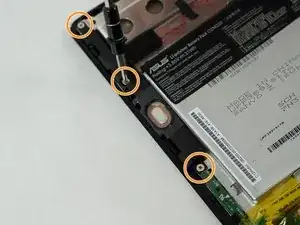

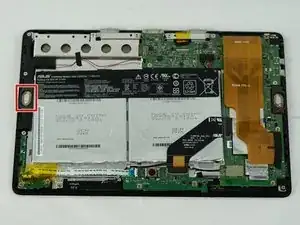

    • Locate the left speaker, indicated by the image. They should be directly to the left of the battery.

    • Use a Phillips #0 Screwdriver to remove three 5mm screws holding the speaker in place.

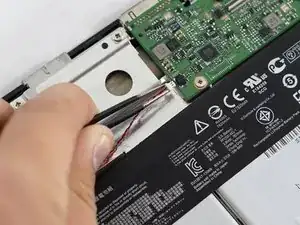

  5. XCEDvYuPYujcQqBw
    XCEDvYuPYujcQqBw
    y2DhkFRG45JE6XLS

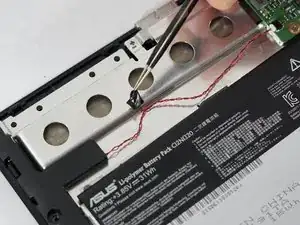

    • Using tweezers, lift up the black tape securing the speaker connection cable.

    • Disconnect the cable from the motherboard by gently tugging on it with the tweezers.

  6. XLohPNkUYrYM1Vjj
    XLohPNkUYrYM1Vjj
    bBXRoWs6YVvKSUBp

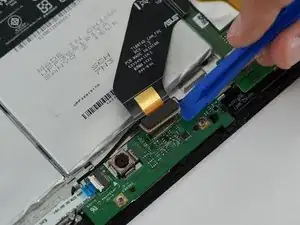

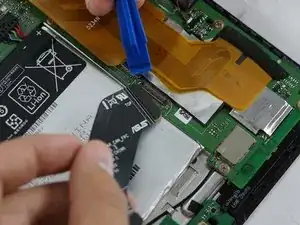

    • To remove the right speaker, begin by detaching the large black strip connecting from the camera board to the motherboard using a plastic opening tool.

  7. QtEdCUxoWIglVEwe

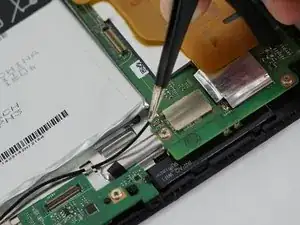

    • Using tweezers, detach the small black cable connected to the motherboard by gently tugging on it.

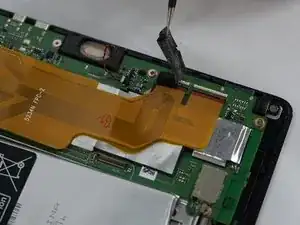

  8. rE3iTfVbAfvsUGTt
    rE3iTfVbAfvsUGTt
    oiZRC5N5uuoQG5Cr
    2exmdiZjejTDfExN

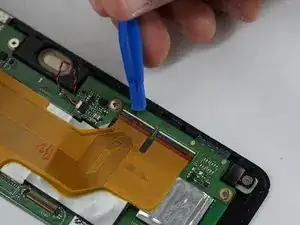

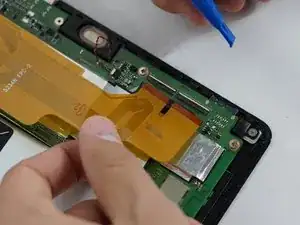

    • Using tweezers, carefully remove the black tape holding the large orange strip.

    • Using a plastic opening tool, lift up the white tabs and pull the orange strip out of place.

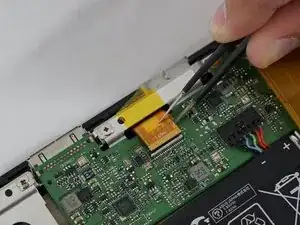

  9. My1GGycXffBAK2jM
    My1GGycXffBAK2jM
    yNluuSuBMVoWYa2c

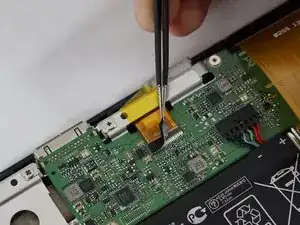

    • Disconnect the LCD connection apparatus by carefully removing the black protective strip with tweezers and gently tugging on the orange ribbon.

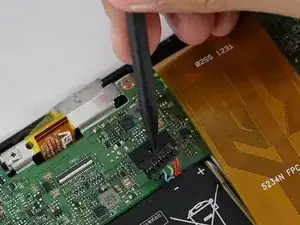

  10. JMxDSNULwDMf5r5M
    • Using the nylon spudger, very carefully disconnect the battery by gently pushing the sharper end against the base.

    • There should be a small dent in the middle; push from there.

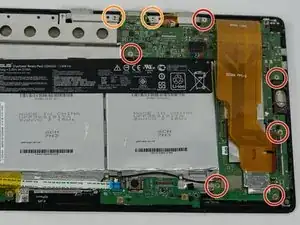

  11. HBoGZyTM3oQ5kC5H
    • Using a Phillips #0 screwdriver, unscrew six 5mm screws holding the motherboard in place.

    • Also using a Phillips #0 screwdriver, unscrew two additional 4mm screws off the top left ends of the motherboard.

  12. 11SMdR3TZPCSeg2J
    11SMdR3TZPCSeg2J
    Pinr6EdHPIVEeWvU

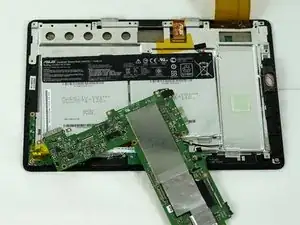

    • Disconnect the speaker from the motherboard by gently tugging on the cable head with tweezers.

    • Remove the motherboard.

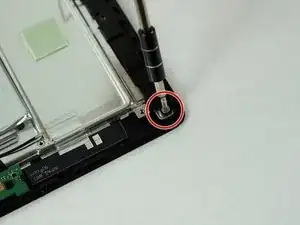

  13. XdBNRbbyGuTi1JOR
    XdBNRbbyGuTi1JOR
    rcxpOvO4nUyBbFCN
    nV5kDGEDAYWtOdDy

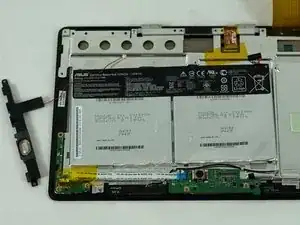

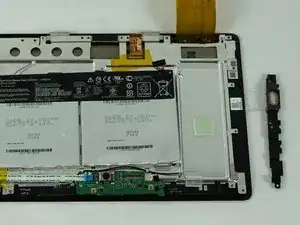

    • Using a Phillips #0 screwdriver, unscrew a single 5mm screw from the bottom of the right speaker apparatus.

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
