Asus Transformer Flip Book TP200S WiFi Card Replacement

Geschrieben von: Alejandro Lopez
  • Kommentare: 0
Asus Transformer Flip Book TP200S WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Are you unable to connect to any WiFi connection? If so, then you might be experiencing a faulty WiFi card. This guide will take you through all the steps required to replace your Asus Flip Book WiFi card.

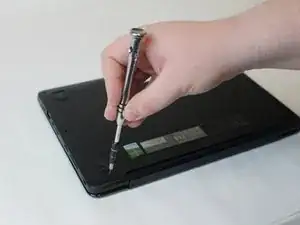

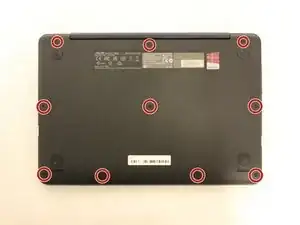

  1. qFWvsn2y6BSyEDrx
    qFWvsn2y6BSyEDrx
    AnptwM4ZH6ZQJmB2

    • Remove the back 6mm and 8mm screws with a J000 screwdriver.

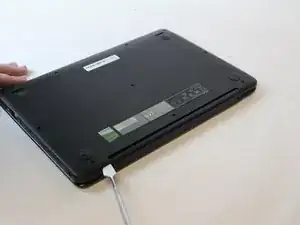

  2. YHW3bVhTgfZTMbW6

    • Remove the back cover of the flip book by gently using a metal spudger.

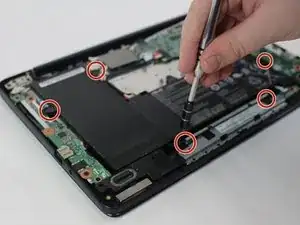

  3. NAEFsm5CYnFKwYX6

    • Unscrew the battery from the motherboard using a J000 screwdriver on the 3mm screws.

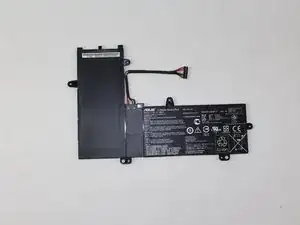

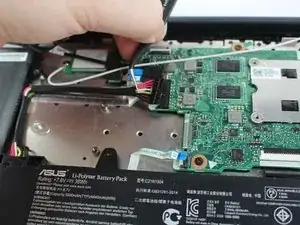

  4. LweoTtZgHyB3CflQ
    LweoTtZgHyB3CflQ
    qAIHoCwNZcBLPQXc

    • The battery comes attached to the motherboard and needs to be disconnected before you can remove it.

    • Disconnect the battery from the motherboard by gently pulling out the connection with tweezers.

    • Gently remove the Wifi cables hooked to the rim of the battery

    • Remove the battery

  5. kANpl3xh4pCmSE5F

    • The WiFi card will be covered by tape and attached to the motherboard.

    • Remove the tape from the WiFi card.

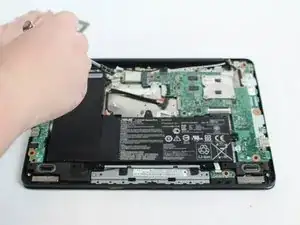

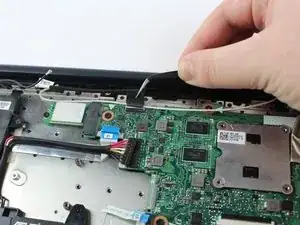

  6. DaElBJUOJVcAaOQX
    DaElBJUOJVcAaOQX
    IaFWMYhYt1Ojswte
    UxZ5PhwNXUDNLIEA

    • Unscrew the WiFi card with a JIS #000 screwdriver.

    • Remove the motherboard connection from the WiFi card with tweezers.

    • Pull out the WiFi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
