Asus Transformer Pad TF103C Headphone Jack Replacement

Make sure power is off.

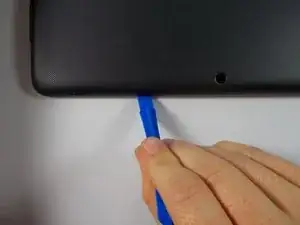

Insert plastic opening tool on the side of the tablet.

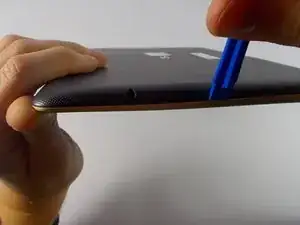

Gently pull upwards and carefully pry open the Transformer pad.

Slide the tool along all four edges and continue to pull the tool upwards.

Remove the back cover once it is detached and set it aside.

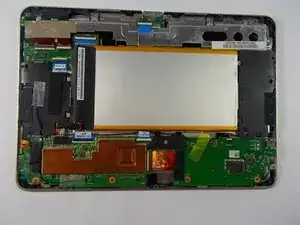

Rotate tablet to match picture to make the guide easier to follow

Remove the tape and unplug wire that attaches to both speakers from soundboard.

Use the +J000 screwdriver to unscrew and remove the M2 plastic holder.

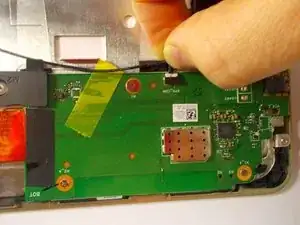

Remove black tape from ribbon cable and separate the cable from the soundboard.

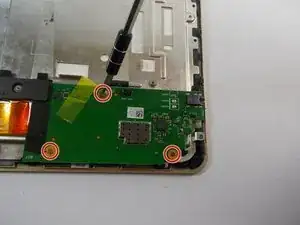

Use the +J000 to remove three screws from soundboard.

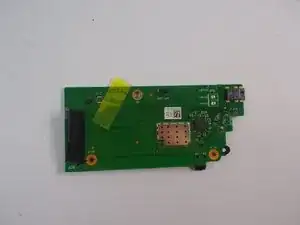

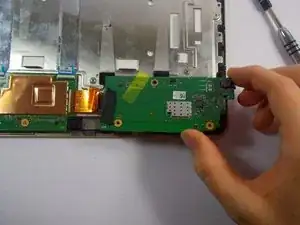

Remove soundboard which has the headphone jack attached to it.
