Asus Transformer T100 Button Module Replacement

Geschrieben von: Taylor Pantiga
  • Kommentare: 2
Asus Transformer T100 Button Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

All the buttons on the tablet are located in one corner. They are all controlled by a button module board, which can be removed if desired.

  1. SOalTrHkInkOBLco
    SOalTrHkInkOBLco
    Z14gRYBwjwcLlvp6

    • Separate the tablet from the base by pressing the large silver button below the tablet. The silver button is located at the base of the tablet.

    • Remove the tablet by lifting up.

  2. ZNtFFHEoPj4ZfWfK
    ZNtFFHEoPj4ZfWfK
    vqWrAMHZKBiPrLDp

    • Insert the opening tool into the seam of the tablet casing and gently pry upwards.

    • With a little force, you will feel the clips release.

    This image seems not to show the correct position where to place the tip of the tool initially. It suggests to pry between the frame and the glass pane from the top of the tablet. That's what I did and broke the glass - one device spoilt. Only the next picture correctly shows where to apply the tool.

    Ole Hoppe -

  3. uxbNxZRywmlneFjN

    • Slide the tool along all four edges of the tablet, making sure that all the clips are released.

    • Do not break these clips; otherwise, the screen will become less secure.

  4. AtnnGVcNQnXuU36H
    AtnnGVcNQnXuU36H
    XpCLQUWPvKX1o1Nd

    • Remove the rear casing.

  5. WFgUfek5nV6YptJK

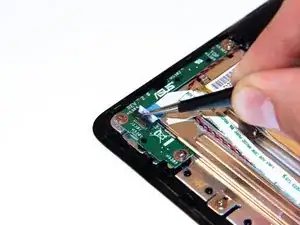

    • Unclip the white connection clip using a pair of tweezers.

  6. LMVbLCbdiJEYNsWW
    LMVbLCbdiJEYNsWW
    ACBexOWXEDQIOESv

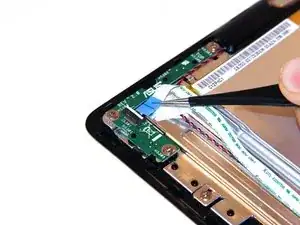

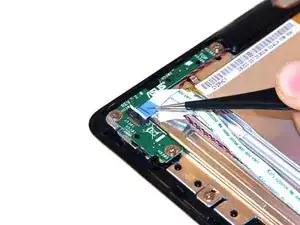

    • Pull the connection apparatus from the connection clip on the board using a pair of tweezers.

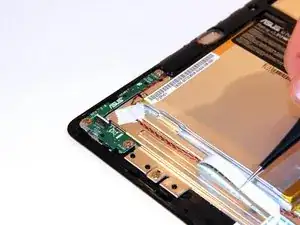

  7. cRV3rc2HYT5dFakZ

    • Gently fold the connection apparatus back away from your work area.

  8. 1bUYpnjUYwsxxPg4
    1bUYpnjUYwsxxPg4
    2otwUjyO6FYPMNuC
    ulAoqWIc6yXBT2Uf

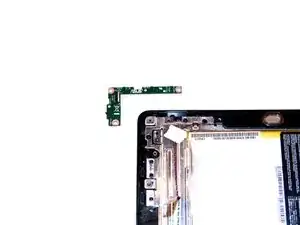

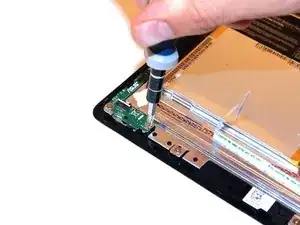

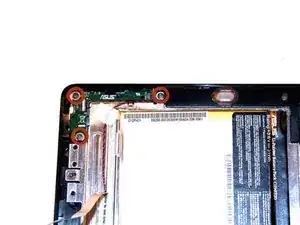

    • Remove the screws using a Phillips Head #1 screwdriver.

    • Remove the power button module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
