Einleitung
This guide demonstrates how to replace the LED screen. There are ZIF connectors and a face place.
Werkzeuge
-
-

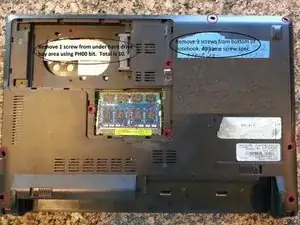

Remove 9 screws from bottom of notebook using PH00 bit + 1 under hard drive bay.
-

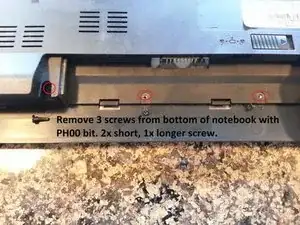

Remove 3 screws from bottom of notebook using PH00 bit. 1 is same screw spec as the other 9, and 2 are shorter.
-
-
-

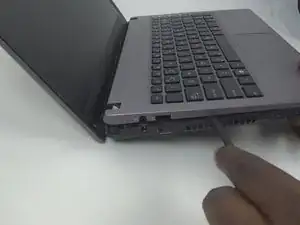

Using the black spudger, insert its flat end between the crevice where the color changes from grey to black.
-

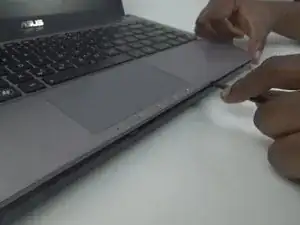

Carefully ease the spudger's end along the crevice, going around the entire frame.
-
-
-

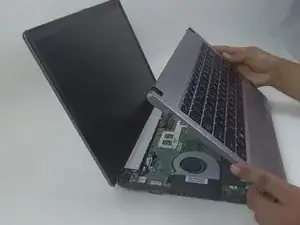

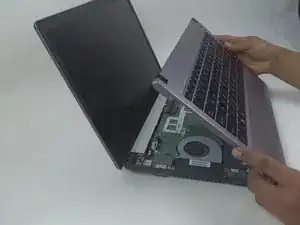

Lift the keyboard from the front where it is closest to the screen.
-

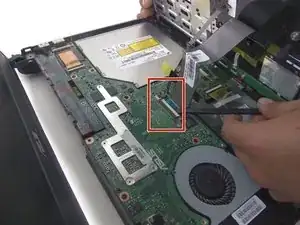

Disconnect the large and small ZIF connectors attached to the motherboard by flipping the light-colored part of the switch.
-
-
-

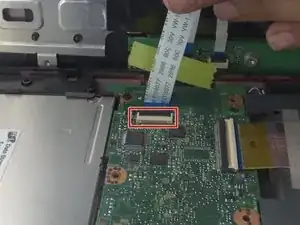

Remove the third and last ZIF connector on the motherboard by flipping up the dark-colored part of the switch.
-
Now, the component should come completely free.
-
-
-

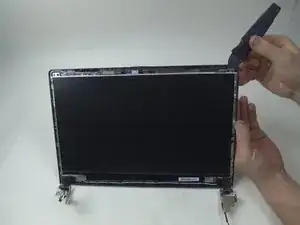

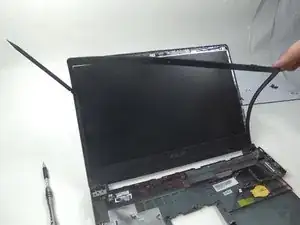

Use the black spudger to pry the face plate off.
-
Gently peel the face plate from the base.
-
-
-

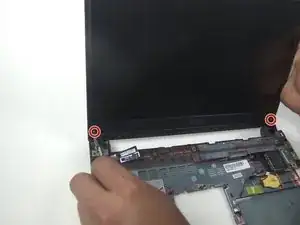

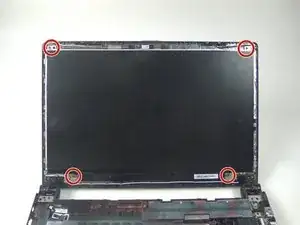

Unscrew the four 3mm Phillips head #00 screws holding the screen to the base.
-
When sitting upright, the screen should fall forward from the top.
-
-
-

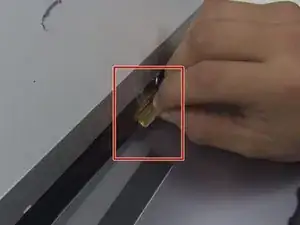

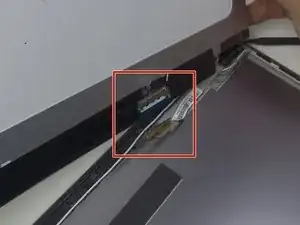

Unease the yellow connecting tape with the spudger at the bottom of the screen.
-
Pull the connector straight down and it will disconnect fairly easy.
-

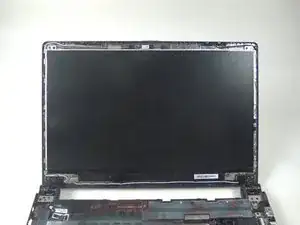

The screen should then be free to be removed.
-
To reassemble your device, follow these instructions in reverse order.
