Asus U56E-BBL6 Keyboard Replacement

Geschrieben von: Josiah Allard

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide outlines how to replace a keyboard on an Asus budget laptop. These laptops are quite compact, which results in a keyboard replacement being a very involved process.

Werkzeuge

Schritt 1

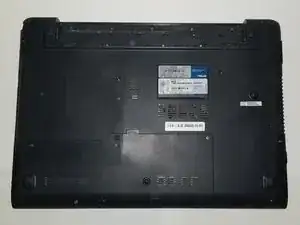

Make sure you unplugged the laptop before you begin the replacement process.

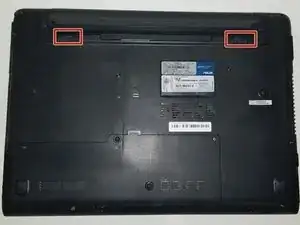

Locate the battery locking tabs on the upper right and left corner.
Press the tabs in towards each other.

Schritt 3

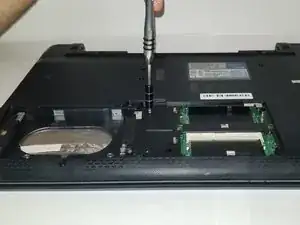

Using a Phillips #00 screwdriver, remove the screws.

Schritt 4

Lift backplate and remove from the case.

Schritt 5

Once inside the panel, locate your RAM sticks.

Schritt 6

This device is embedded with two RAM sticks.

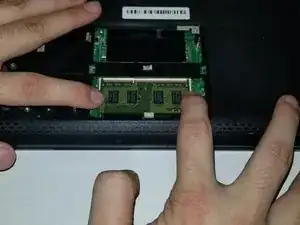

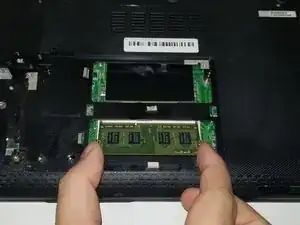

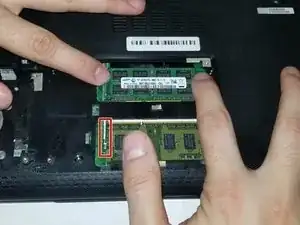

Push the metal brackets carefully to release and remove the RAM stick .

Schritt 7

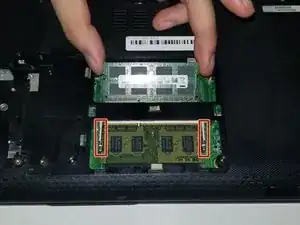

Repeat the previous step for removing the other RAM stick.

Schritt 8

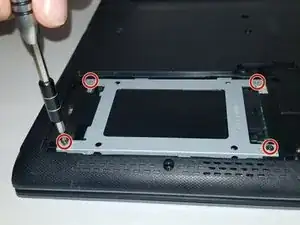

Using a Phillips #00, remove the four screws.

Schritt 9

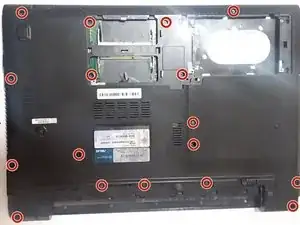

Using a Phillips #00 screwdriver, remove the screws.

Schritt 10

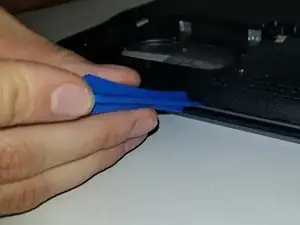

Use a plastic opening tool around the entire edge.
Separate the case from the keyboard.

Schritt 11

Ensure the laptop is face up for this step.

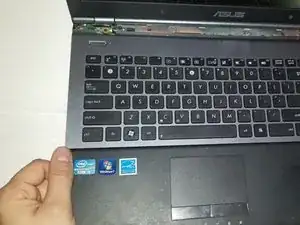

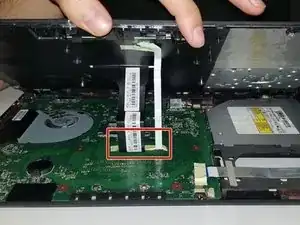

Gently lift the keyboard from the base of the laptop.
Be careful of the ribbon cables connecting the keyboard.

Schritt 12

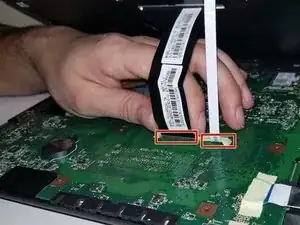

Gently tug the ribbon cables free from their slots.

Schritt 13

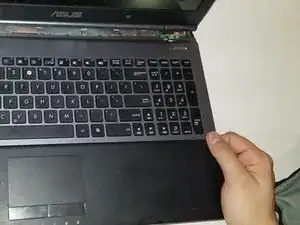

Using both hands, pull the keyboard back and out, fully separating the keyboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
