This guide will take you step by step in disassembling your laptop to access your motherboard. The process is quite involved as you will need to remove all other components surrounding it.

  1. YB6LvMTSgDvkYurJ
    • Make sure you unplugged the laptop before you begin the replacement process.

    • Locate the battery locking tabs on the upper right and left corner.

    • Press the tabs in towards each other.

  2. D2LdlYxdRHbJ2poj
    • Pull the battery outwards to remove it.

  3. lwTmNKgdWGbdeImV
    lwTmNKgdWGbdeImV
    RPyuOJjA5mvfuIyP
    • Using a Phillips #00 screwdriver, remove the screws.

  4. xeDJMQvgTGcYnGGI
    • Lift backplate and remove from the case.

  5. TGYPLbIlnREZVCTi
    • Once inside the panel, locate your RAM sticks.

  6. EftPbANwVEl1M1JW
    EftPbANwVEl1M1JW
    BuT4IKd2jgZjXlk1
    • This device is embedded with two RAM sticks.

    • Push the metal brackets carefully to release and remove the RAM stick .

  7. cESNtTeGVWieKgkl
    cESNtTeGVWieKgkl
    TPMOnj2c6wRLSEAA
    • Repeat the previous step for removing the other RAM stick.

  8. YSIu6wvHLKfIskOk
    • Using a Phillips #00, remove the four screws.

  9. yasHX5vFZ2gDNI2A
    yasHX5vFZ2gDNI2A
    4SVBZJISIfFlrBNd
    • Using a Phillips #00 screwdriver, remove the screws.

  10. d6LlJ3DtpLJBEZKk
    • Use a plastic opening tool around the entire edge.

    • Separate the case from the keyboard.

  11. kTSHh3GoWPDQd4Ut
    • Ensure the laptop is face up for this step.

    • Gently lift the keyboard from the base of the laptop.

    • Be careful of the ribbon cables connecting the keyboard.

  12. FLJGrcKiQFMNrPKG
    • Gently tug the ribbon cables free from their slots.

  13. ZmOlTrmUm1kDbjAD
    ZmOlTrmUm1kDbjAD
    RsL5sfQhJcY4scgX
    • Using both hands, pull the keyboard back and out, fully separating the keyboard from the laptop.

  14. ecYtaOMTnLZjxDCw
    • Using a plastic opening tool, separate the optical drive from the laptop frame.

    • Be careful to leverage the plastic opening tool against the frame and not the motherboard as this may cause damage.

  15. wqNE2Hxu6VK45WV1
    • Remove the optical drive by sliding it out from the case.

  16. VXxMIkqiPKNAKENw
    • Using a Phillips #00 screwdriver, remove the three screws.

  17. fUnoWcFuCBesZHgO
    fUnoWcFuCBesZHgO
    NHWreCBTXQFgYppo
    LdSCO65QLVVOV4fD

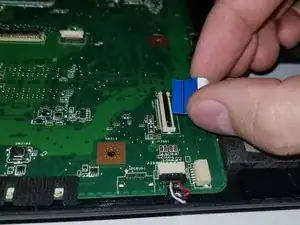

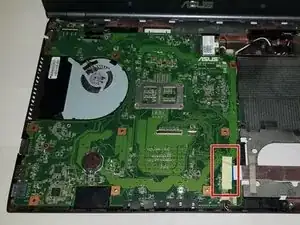

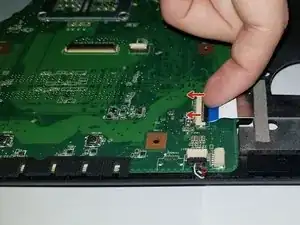

    • Lift up the ribbon cable connector on the bottom right corner.

    • Gently pry the cable away from the connection.

  18. IlJcXigRZvhCTNRV
    IlJcXigRZvhCTNRV
    IlOJ2U4Uqqs4V32U

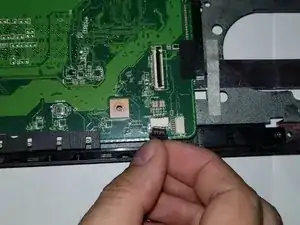

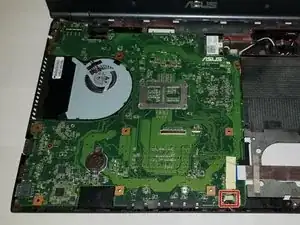

    • Remove the 4 pronged connection on the bottom right corner of the motherboard.

  19. 4DEGUqwt2uuMcnSk
    4DEGUqwt2uuMcnSk
    mmJJbi5kLcUbAa12

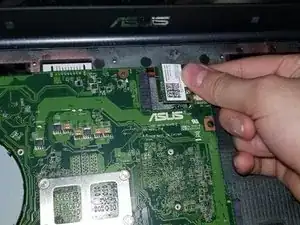

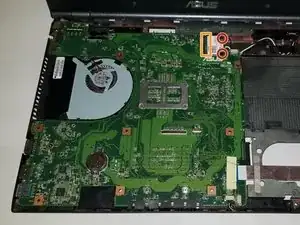

    • Using a Phillips #0 screwdriver, remove the two screws.

    • Holding the board firmly with two fingers, pull outward, disconnecting it from the contacts.

  20. BmsECXf2XPnVeaQF

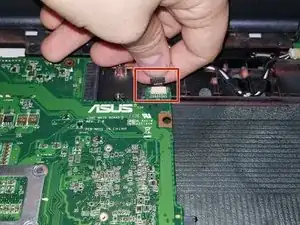

    • Repeat the previous step and remove the two wired connection next to the card.

  21. j1WSVAAgAxUJ4vmi
    j1WSVAAgAxUJ4vmi
    6mvTrYrXictvSyVm

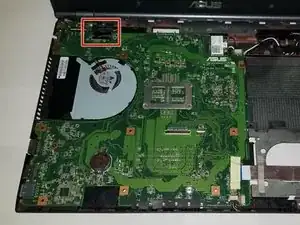

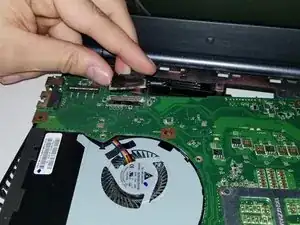

    • Remove the cable at the top left of the motherboard.

    • This cable is held in by a magnetic connection. Be sure to lift up and away when disconnecting.

  22. qMMSvF3MLn3Do2ZK
    qMMSvF3MLn3Do2ZK
    PBOSeduhOYTGYD3d

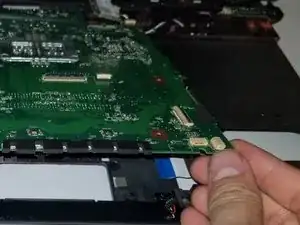

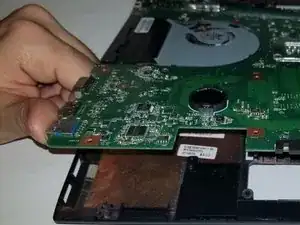

    • Using both hands, lift the motherboard up and out from the case

Abschluss

To reassemble your device, follow these instructions in reverse order.
