Einleitung

Your battery seems like it does not charge? It may be time to replace it. This guide will provide a step by step walk through to access and replace your Asus UL30VT-A1 battery. To troubleshoot your device battery first check the link below.

  1. EkVJRqKF4YqpXYau

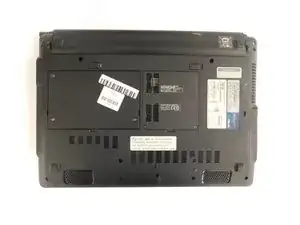

    • Flip the laptop so that you can see the back part. (As shown on the image)

  2. 1c1KFeDNVicckp1L
    1c1KFeDNVicckp1L
    EsFCMHqcWpa2BAnC

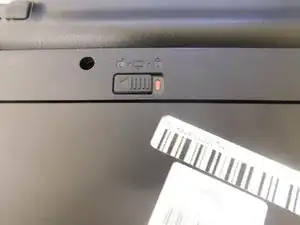

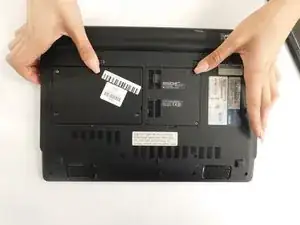

    • Identify both slide locks.

    • Slide both towards the unlocked lock.

    • Make sure you can see the red mark that indicates it is unlocked. (See image number two)

  3. rvfgQPC3SLxApLVw
    rvfgQPC3SLxApLVw
    PEnmLnRmdeqmX11d

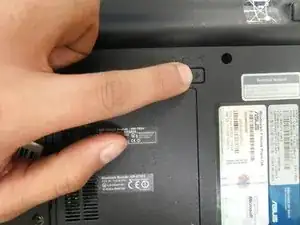

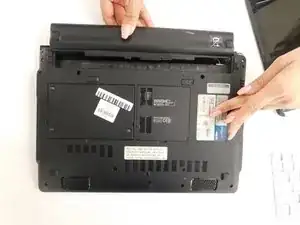

    • Finally, while unlocking the right lock pull the battery. (See Image number two)

    • The battery should slide out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
