Asus UL30VT-X1 Battery Replacement

Geschrieben von: Robert Wilcox
  • Kommentare: 0
Asus UL30VT-X1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 - 5 Minuten

Einleitung

Use this guide to remove and replace a defective battery in the Asus UL30VT-X1. This guide will not require any tools or toolkits from iFixit.

  1. FvUtD2IJycngVrR4
    FvUtD2IJycngVrR4
    sO5uOnZLFI1AiUfc

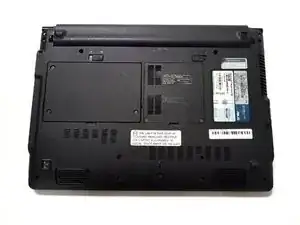

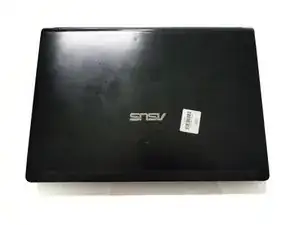

    • Flip the laptop over onto the back. (Second Image)

  2. FfCO2pRYHakjauOQ
    FfCO2pRYHakjauOQ
    yGbOJqIJFXNOE12S

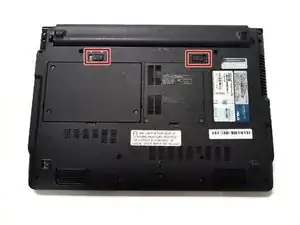

    • Locate the two battery locks. (First Image)

    • The battery lock on the left will need to be unlocked first which is done by pushing the lock to the left. (Second Image)

    • A red line should show which indicates it is unlocked.

  3. N3HSh12DBgwYlxIE

    • Unlock the right lock by moving it to the right while simultaneously pushing upwards on the battery.

    • The battery should slide out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
