Einleitung

Replacing a CD/DVD drive may need to take place when the drive simply fails to perform its normal functions. It has built up too much debris/dust, or the drive itself may have no power due to broken internal mechanisms and parts. Replacing the drive may resolve issues with lag and lack of smooth audio/visuals so the CD/DVD can run smoothly for anyone wanting to enjoy media, or burn a CD.

Before beginning, unplug the laptop and make sure it is completely off.

The battery and hard drive will need to be removed before replacing the CD/DVD drive on the last step.

  1. lRT2HIZwBjuNeo5I
    lRT2HIZwBjuNeo5I
    yT4KUQ3U4SO5DRMx

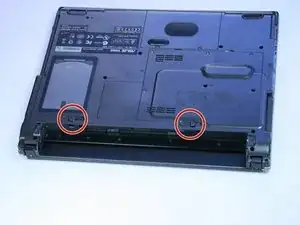

    • Place the computer upside down.

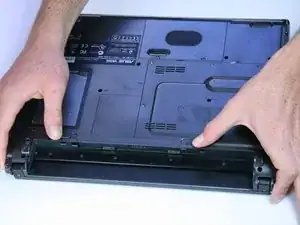

    • Using your thumbs, slide both latches away from each other (towards the outside).

    • Push the battery out with your fingers.

    • The actual battery is not pictured.

  2. oSWZeCDNSEJyKIB2
    oSWZeCDNSEJyKIB2
    l55N15DildwUGtP3

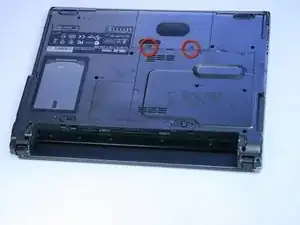

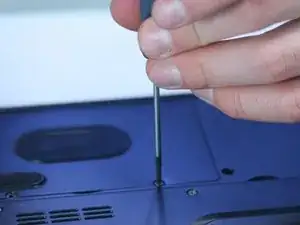

    • Remove the two screws using a Phillips #0 screwdriver.

  3. 3KtDUxkF2RdrPOtS
    3KtDUxkF2RdrPOtS
    gfRkTVJyZiTWTImR

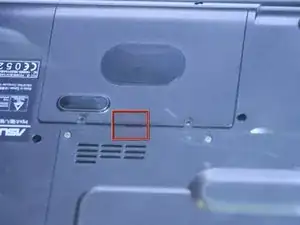

    • Pry open the case using an iFixit opening tool.

    • Actual hard drive is not shown in the second image.

  4. XXhx5GMpRnGUbS3N
    XXhx5GMpRnGUbS3N
    D2QlQTDyTWLXbPhU

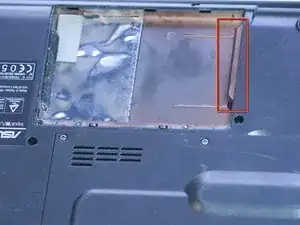

    • The highlighted area is where your hard drive would be. Slide it out away from its slot and pull it gently to remove.

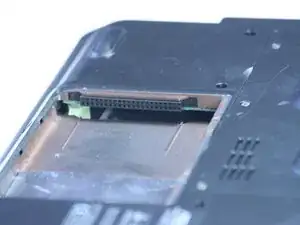

    • Second image shows what it should look like once you remove the hard drive.

  5. bYrSL33WHgrZ5xZk
    bYrSL33WHgrZ5xZk
    UfyppNJuJ1AEdcpG

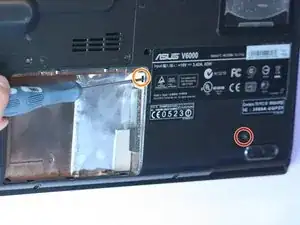

    • Remove the screw from the bottom right corner using a Phillips #0 screwdriver.

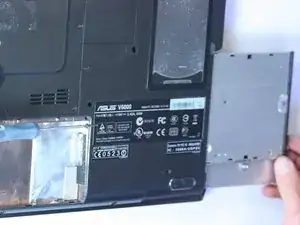

    • Insert a spudger into the hole to carefully push the CD/DVD drive out.

Abschluss

To reassemble your device, just push the new CD/DVD driver back. Then put the components back together then put the screws back in.
