Einleitung

Fan is a very essential part of a laptop which prevents it from overheating. Your Asus V6800V Fan needs to be changed when your laptop is running slow due to overheating or the fan is making a usual noisy sound or in some cases the fan stops immediately after starting. Before changing your Asus V6800V Fan use this page to confirm that the problem is actually in the fan but not any other parts.

The replacement guide will help you change your Asus V6800V Fan in the following simple steps. It won’t take more than 30 minutes.

  1. lRT2HIZwBjuNeo5I
    lRT2HIZwBjuNeo5I
    yT4KUQ3U4SO5DRMx
    • Place the computer upside down.

    • Using your thumbs, slide both latches away from each other (towards the outside).

    • Push the battery out with your fingers.

    • The actual battery is not pictured.

  2. lUnOGXiNIR6jfRVK
    lUnOGXiNIR6jfRVK

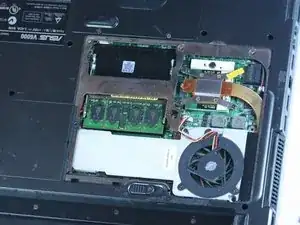

    HRk3mYp1HLkZQFhR

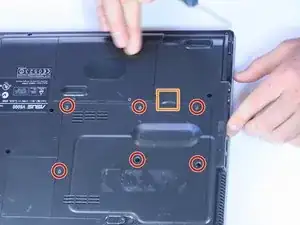

    • Use the Phillips #0 to remove the six screws on the back of the device.

    • Gently open the cover using the tab located by the highlighted box.

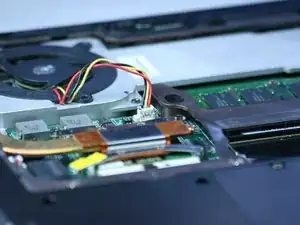

  3. hBhBL6lskP2oRIqq
    hBhBL6lskP2oRIqq

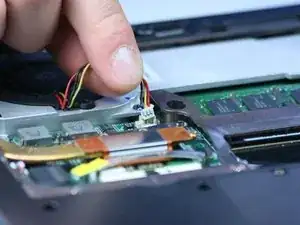

    PsCYaVOutehXlUe3
    • Unplug the wires by pulling straight up on the white connector and away from the computer.

    • Make sure not to pull on the wires (as shown in the second picture). The white connector should pop off with very little force.

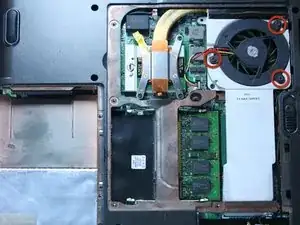

  4. EtYSBpGxuWUruxsr
    EtYSBpGxuWUruxsr

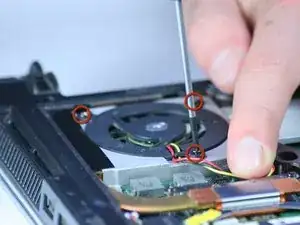

    gKskBmcRs6HaFITe
    • Use a Phillips #0 to remove the three screws holding the fan in place.

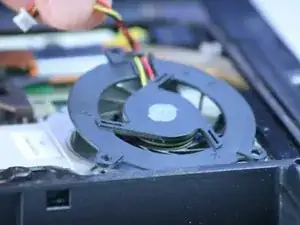

  5. YdDKCEMYMcJgRQTO
    YdDKCEMYMcJgRQTO
    fqotHaQaaCuD1NGJ
    • Remove the fan from the device.

    • The fan should remove easily.

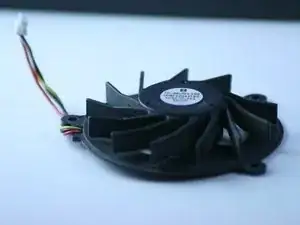

  6. SThORcWflUXEmutb
    SThORcWflUXEmutb

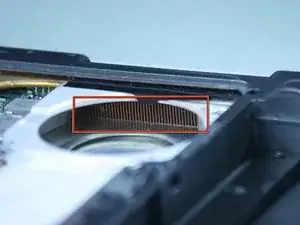

    h1GjZL3qIReiH5KY
    • Use a cotton swab or compressed air to blow air from the inside, out to clear dust from the vent or heat sink.

Abschluss

To reassemble your device, follow these instructions in reverse order.
