Einleitung

  1. lRT2HIZwBjuNeo5I
    lRT2HIZwBjuNeo5I
    yT4KUQ3U4SO5DRMx
    • Place the computer upside down.

    • Using your thumbs, slide both latches away from each other (towards the outside).

    • Push the battery out with your fingers.

    • The actual battery is not pictured.

  2. Yrk1aUDZSRcsnjE6
    • Using a Phillips #0 screwdriver, remove the two screws from the case.

    • These screws should have a "K" symbol next to them.

  3. bpIiW6Vcn4FoYREK
    bpIiW6Vcn4FoYREK
    COiBTMhlLj3pnDCV
    36C11Nc4w4uxVxkd
    • Locate the four tabs above the F1, F10, INSERT, and between the F5 and F6 keys.

    • Starting with the tab above the F1 key, press the tabs inward using your fingernail or spudger. Continue this process for the rest of the tabs.

    • Once all four tabs have been released, the top half of the keyboard should be free.

  4. LYK3EdQG4c4sUptI
    LYK3EdQG4c4sUptI
    WyDAHaAku6lhf4yN
    • Pull the keyboard up from the top at a 45 degree angle. Place it upside down on the touchpad.

    • Pull the wide ribbon cable laterally from its socket on the motherboard to free the keyboard.

  5. pBQrKW2v6Yjif66Q
    • Using a Phillips #0 screwdriver, remove the screws at the bottom of the chassis to remove the top panel.

    • This will allow the lower case to be removed from the rest of the computer.

  6. HrkIHEFtTuvltWDM
    • Remove the six screws from below the keyboard with a Phillips #0 screwdriver.

  7. FEhowqJt3FxNCtlR
    FEhowqJt3FxNCtlR
    TZ6koTBUFX2PPs6Q
    • Use your fingernails or a pry tool to gently separate both halves of the case. Begin at the front and work around the entire case.

    • Be cautious not to damage the cables that connect both sides of the case.

  8. oKaAfsMT2OKAyJFX
    oKaAfsMT2OKAyJFX
    iTJOSKnVUVyTsE3g
    AGZSntSK453VWXkd
    • Remove the internal cables from front to back.

    • Use your fingers to gently remove the cables from their sockets.

    • The cables that connect the display to the main chassis are difficult to pull out using your fingers. A tool, such as tweezers, may be needed.

  9. kGWmoYVsjDRRxsCJ
    • After separating the top and bottom halves of the case, lay them flat on the work area.

  10. 6Y3fst13dMRjGBcP
    6Y3fst13dMRjGBcP
    mVbgZ2bW26bFNiBE
    OUmsnqWkSpYOKdYN

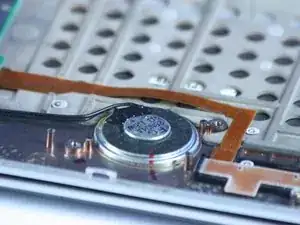

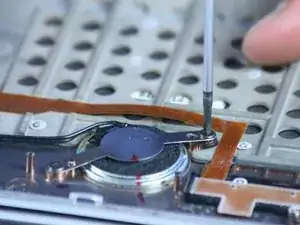

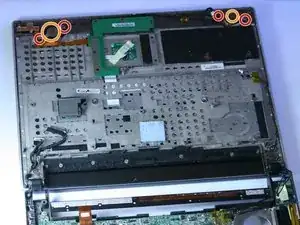

    • Remove the four screws using a Phillips #0 screwdriver.

    • Remove the protective metal plates with your hands.

  11. mKUpSLMH3JbRGAJR
    mKUpSLMH3JbRGAJR
    UOuj1JSNRNlDSVJL
    SuBWoZ6AxpsViRsV

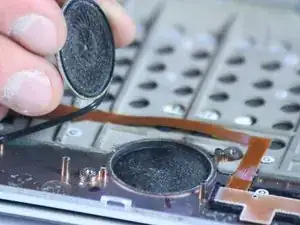

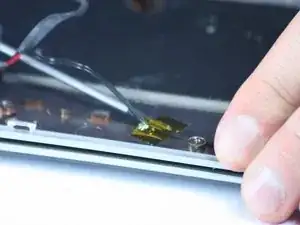

    • Make sure all cables and wires are disconnected.

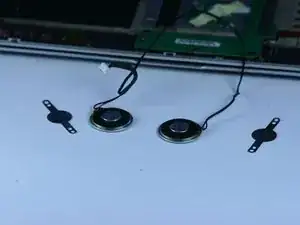

    • Remove the speakers from the case with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
