Asus VivoBook 14" F412DA Battery Replacement Replacement

Geschrieben von: Jonathan D Banwart
  • Kommentare: 1
Asus VivoBook 14" F412DA Battery Replacement Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten - 1 Stunde

Einleitung

If you need a new battery on your Asus F412DA laptop here is a guide on how to do it.

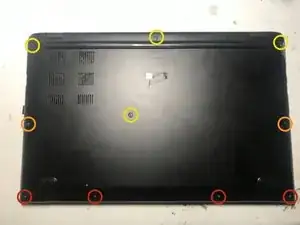

  1. 3YFwCqUrSZXg1cil

    • Start by removing the marked screws

    • Remove the four 6mm screws

    • Remove the two 8mm screws

    • Remove the four 9mm screws

    • These screws are different lengths, remember which order you removed them. Putting the wrong size screw in the wrong hole can cause damage.

    • Charged Lithium-ion batteries can explode if damaged or punctured, reduce the risk of an explosion by discharging your battery completely before removing.

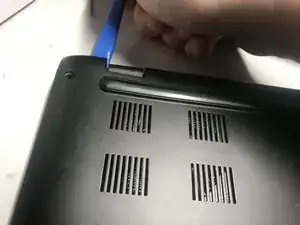

  2. jAHi2XSBduPncZie
    jAHi2XSBduPncZie
    eYTqc5TTWEMIrhJj
    PApYhLLQHOwMWMRK

    • Using a opening tool, pry and lift at the edge of the bottom until you feel it open.

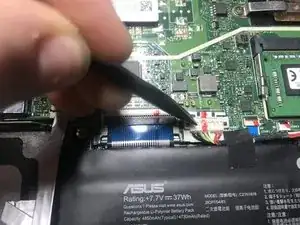

  3. Dnw2tXBX4fTTjS3w
    Dnw2tXBX4fTTjS3w
    hwCNxoxXQHJHSWkf
    px6iErqQqlWxofmQ

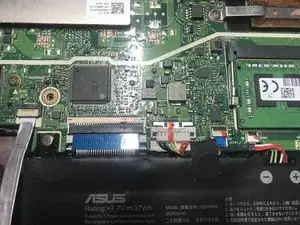

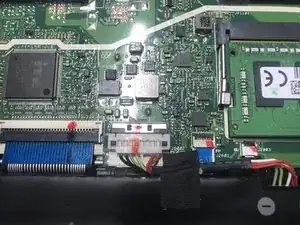

    • Using a fingernail or spudger move back the retaining clip holding the battery connector in place.

    • Be gentle releasing the connector, it's very fragile.

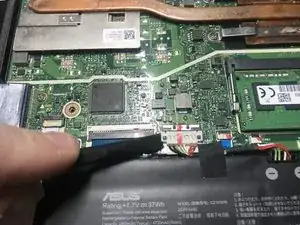

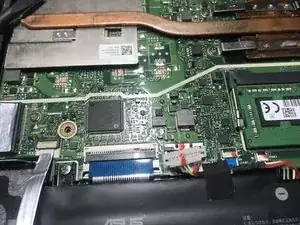

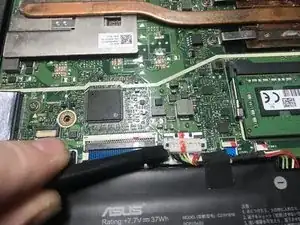

  4. K1EFfrbiYBnXHDep
    K1EFfrbiYBnXHDep
    5VMnFpScSGwlRBu1
    bUFKg5AD5lSfSegR

    • Put a spudger under the battery connector and twist, the connector should lift off.

    • Be sure to use a plastic spudger as to not risk damaging the motherboard or risk puncturing the battery.

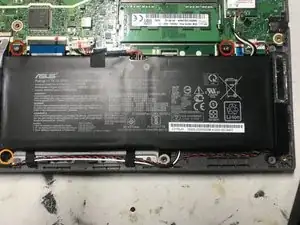

  5. 6vTZZ4bKg1G6FSp5

    • Remove the two 5mm screws.

    • Remove the 4mm screw.

    • These screws are different lengths so take extra care to track where each one come from.

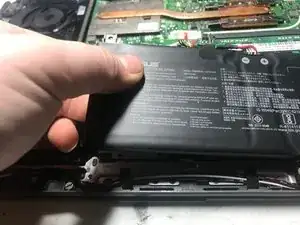

  6. AEH6eRcTP4iuXbNH

    • Carefully lift the old battery out of the computer.

Abschluss

To reassemble your device, insert the new battery and follow these instructions in reverse order.
