Asus VivoBook Flip 14 TP410U Hard Disk Drive Replacement

Geschrieben von: Justin Martel
  • Kommentare: 1
Asus VivoBook Flip 14 TP410U Hard Disk Drive Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide helps you replace the hard disk drive (HDD) in your Asus VivoBook Flip 14 TP410U.

  1. 2HPbJfTvMwqgQUY6

    • Disconnect laptop from the power supply.

  2. iINW41RoodbnCL3t

    • Use a Phillips #00 screwdriver to remove the ten 6.4 mm screws from the bottom cover.

  3. MJpIfkUuVZqDI4Lo
    MJpIfkUuVZqDI4Lo
    janH1YdsBgxXUdec

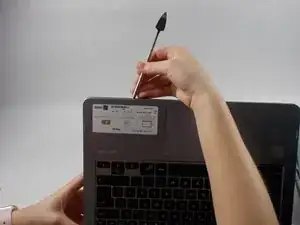

    • Use a metal or nylon spudger to pry open the back cover on all sides.

    • Remove the back cover to access the inside where the hard disk drive is located.

  4. dCWjGPDFgbJyAVGL

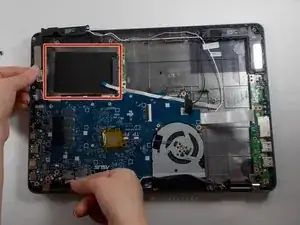

    • Locate the hard-drive.

    • Disconnect the hard disk drive from its connectors, and remove the drive.

    • Place the new HDD in the same location and orientation.

Abschluss

To reassemble your device, follow these instructions in reverse order.
