Asus VivoBook Q200E-BSI3T08 Cooling Fan Replacement

Geschrieben von: Mitchell Jackson
  • Kommentare: 1
Asus VivoBook Q200E-BSI3T08 Cooling Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide will show you how to locate and remove the cooling fan, in order to replace the motherboard.

  1. qcNSEHFLDV3EoO1U

    • Turn off the computer and unplug the charge cable.

    • If the computer is on or plugged in, it could cause electric shock.

    • Turn the computer upside down.

  2. 1LxJDWoppxZMALyl

    • Remove the nine Philips #00 screws holding the back panel in place (four 5.6mm, four 7.7mm, and one 9.2mm).

    The four 7.7mm mm screws are on the edge near the labels (top of photo).

    The 9.2 mm screw is in the center.

    Paul Hutchinson -

  3. KkVb5mLAhOfagbdt
    KkVb5mLAhOfagbdt
    UPrFVqGsYpdUlKHb

    • Use a plastic opening tool to gently remove the back panel.

  4. bJUVMRI4ExGR3NeR

    • Unscrew the five 4.9mm screws holding the cooling fan in place using a Phillips #0 screwdriver.

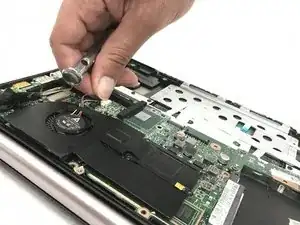

  5. F1XiATGSEjVjNloY

    • Unplug the power bus for the fan.

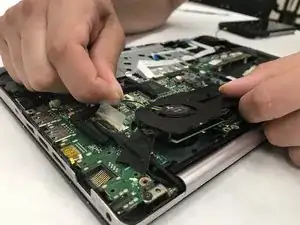

  6. JpoOLLRpVc6IE6We

    • Lift up and remove the cooling fan from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
