Asus VivoBook Q200E-BSI3T08 Trackpad Replacement

Geschrieben von: Mitchell Jackson

Kommentare: 3

Asus VivoBook Q200E-BSI3T08 Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 6 Minuten

Einleitung

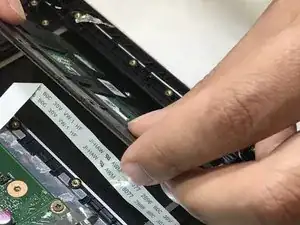

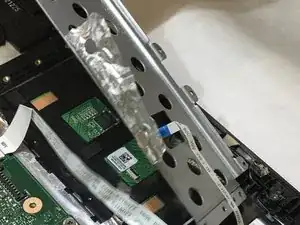

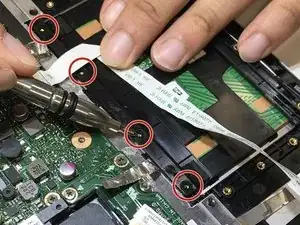

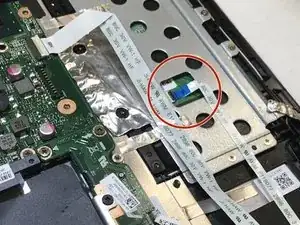

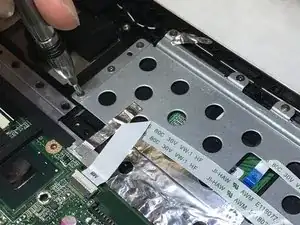

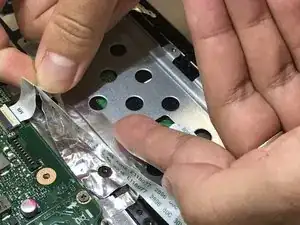

This guide will show you how to remove and replace the trackpad. The trackpad is located inside the back panel and is fairly easy to replace if you are experiencing touch issues with the trackpad.

Werkzeuge

Ersatzteile

ASUS VivoBook Q200E Touchpad

Schritt 1

Turn off the computer and unplug the charge cable.
If the computer is on or plugged in, it could cause electric shock.
Turn the computer upside down.

Schritt 2

Remove the nine Philips #00 screws holding the back panel in place (four 5.6mm, four 7.7mm, and one 9.2mm).

The four 7.7mm mm screws are on the edge near the labels (top of photo).

The 9.2 mm screw is in the center.

Paul Hutchinson - 04/04/22

Schritt 3

Use a plastic opening tool to gently remove the back panel.

Schritt 4

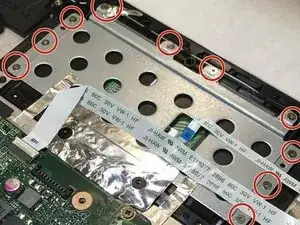

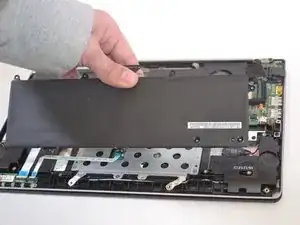

Remove the eight 4.7mm Philips #00 screws holding the battery in place.

I would recommend removing the battery first, or at least disconnecting if from the rest of the system to prevent any unwanted electric discharge. Think of it as the equivalent of opening your PC where the first thing you do is disconnect the plug from the power supply.

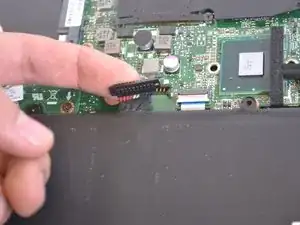

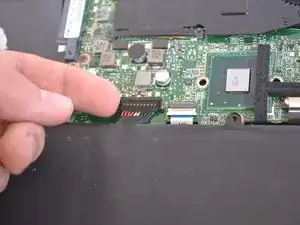

You can disconnect the battery by lifting the ten wire connection running from the battery to the board. In the image above it appears just above the middle of the battery at the top (almost square in the middle of the laptop). In my system it has (from left to right) four red wires, one white wire, one yellow wire, and then four black wires. This connection can be removed by placing a finger-nail or small screwdriver underneath either side of the terminal (black plastic piece) and gently prying it upward.

Again, I highly recommend against removing any other components before ensuring that the power supply (battery) is disconnected.

Kevin “AdmiralP” Piatt - 20/09/17
